1973 Yamaha EW433C Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1973 Yamaha EW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

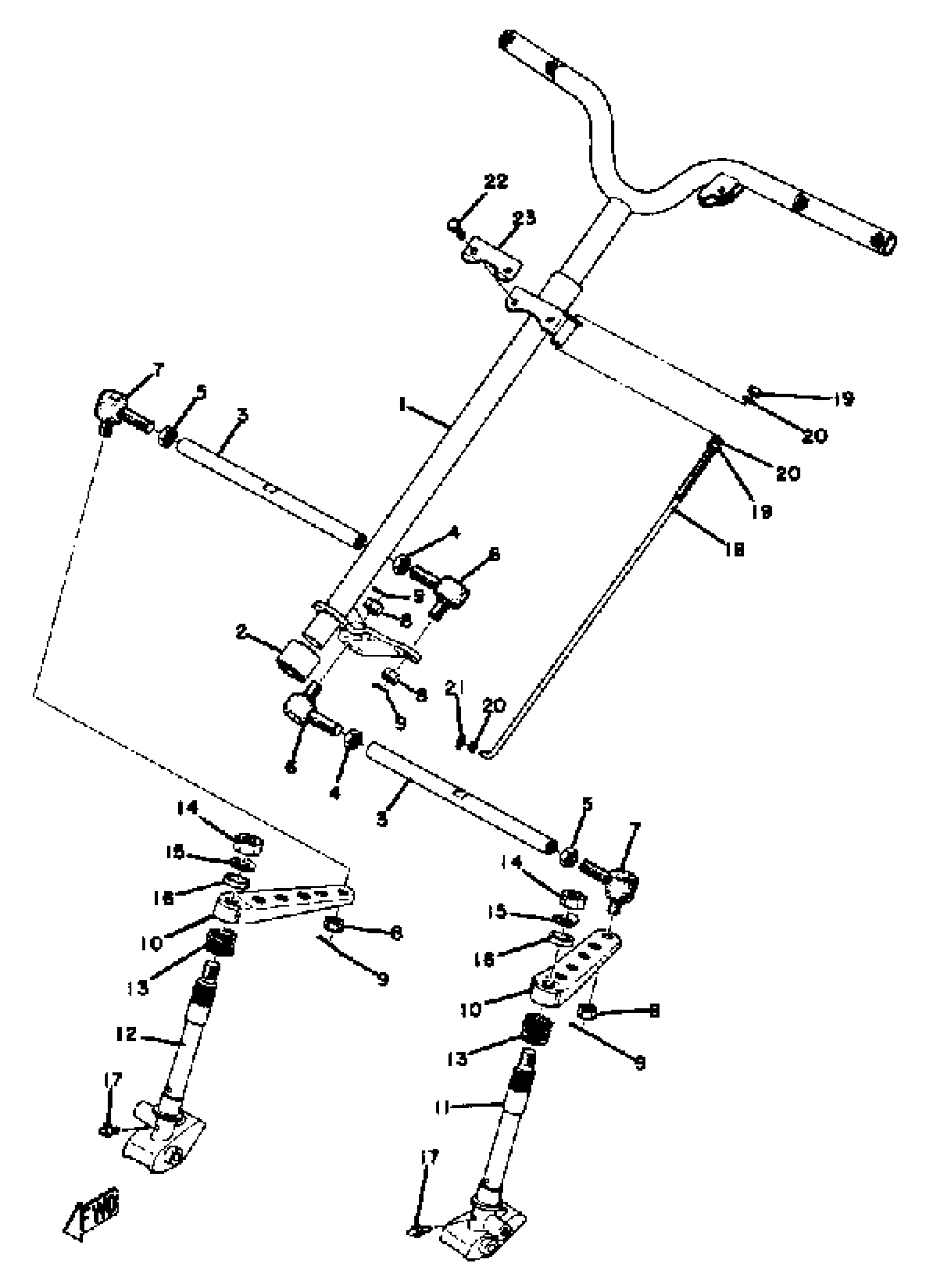

1973 Yamaha EW433C Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(811-23811-00-00)

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

ROD, STEERING RELAY

(826-23821-00-00)

1
Out of stock

4

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

5

NUT (821-23834-00)

90170-12054-00

1
Out of stock

6

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

7

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

8

NUT, CASTLE

90171-10002-00

1
Out of stock

9

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

10

ARM, OUTSIDE 1

(810-23851-00-00)

1
Out of stock

11

COLUMN, SKI 1

(816-23853-00-00)

1
Out of stock

12

COLUMN, SKI 2

(816-23854-00-00)

1
Out of stock

13

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

14

NUT, HEXAGON

95337-12600-00

1
Out of stock

15

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

16

SPACER

90560-20037-00

1
Out of stock

17

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

18

BAR, TENSION

(810-23861-00-00)

1
Out of stock

19

NUT(JN5)

95317-06700-00

—

$6.69

In stock

20

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

21

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

WASHER, LOCK 1

(810-23894-00-00)

1
Out of stock
