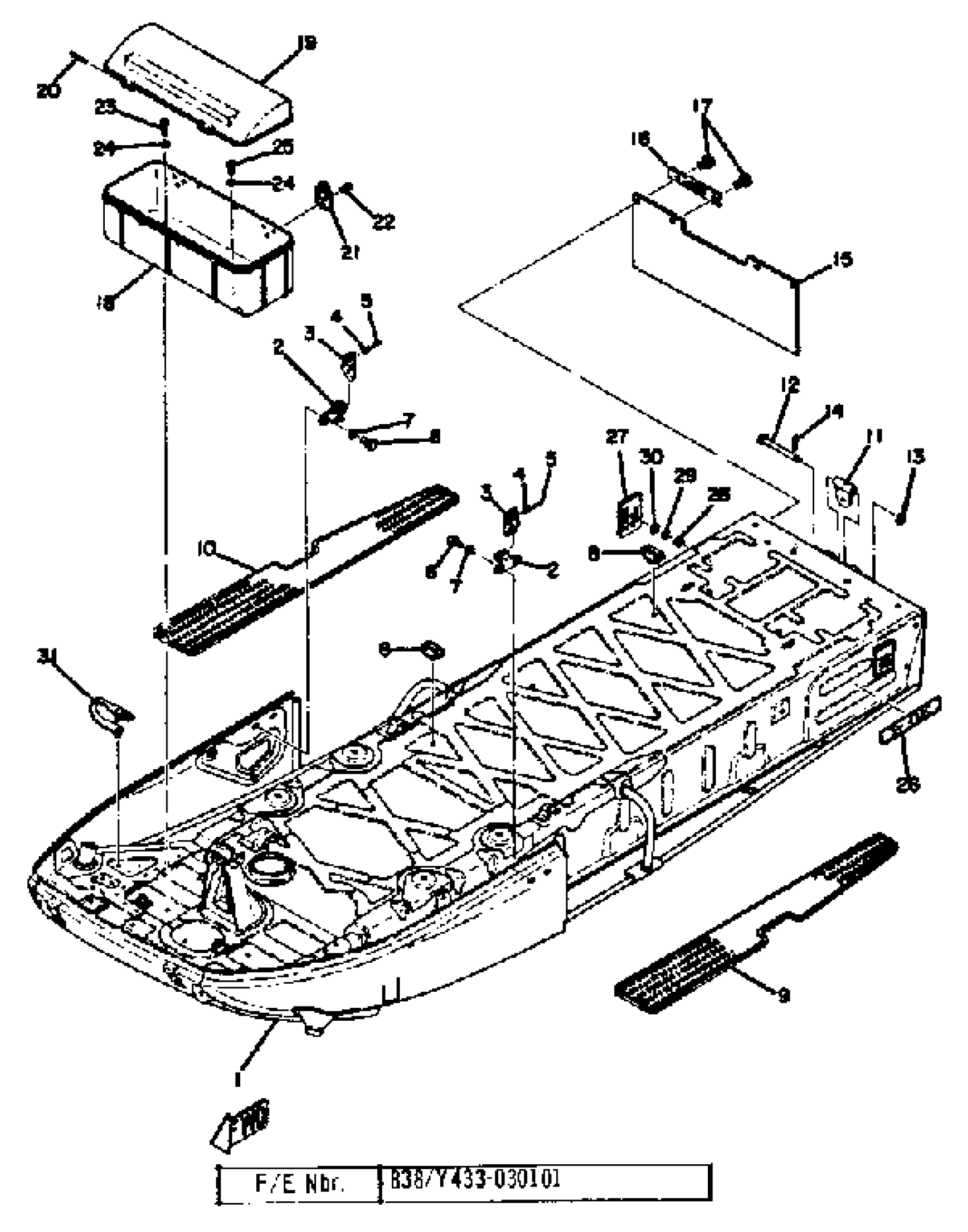

Find the part on the Frame diagram for your 1973 Yamaha EW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW433C Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

807-77170-00-00

1
Out of stock

1

FRAME

(838-21910-00-00)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

CLAMP

(90464-13008-00)

1
Out of stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

12

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

PIN, COTTER

91490-25020-00

1

$2.94

In stock

15

FLAP

(807-77595-02-00)

1
Out of stock

16

PLATE, FLAP 1

(807-77593-00-00)

1
Out of stock

17

BOLT (661)

97013-06012-00

—

$4.71

In stock

18

LUGGAGE BOX ASSEMBLY

(822-77301-00-00)

1
Out of stock

19

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

20

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

21

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

22

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

23

SCREW, PAN

98507-06014-00

—

$6.18

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

26

EMBLEM 4

838-77354-00-00

1
Out of stock

27

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

28

NUT, NYLON

95707-06300-00

—

$3.20

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

BAND

(841-82591-00-00)

1
Out of stock
