1972 Yamaha EW433B Shroud Diagram

← All diagrams

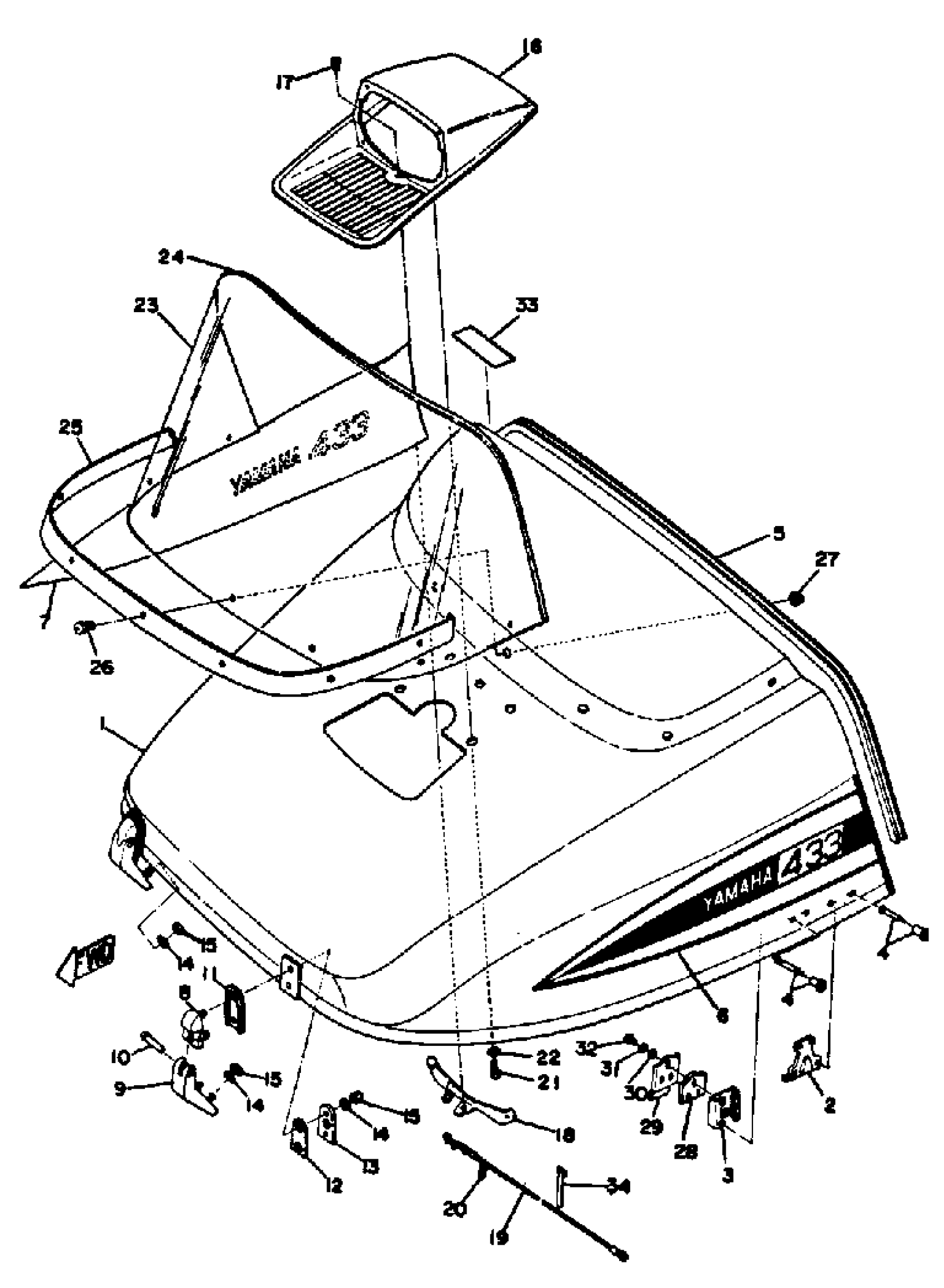

Find the part on the Shroud diagram for your 1972 Yamaha EW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW433B Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(807-77111-00-00)

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

(811-77138-00-00)

1
Out of stock

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

5

TRIM 2

(807-77166-00-00)

1
Out of stock

6

ORNAMENT 1

826-77163-00-00

1
Out of stock

7

ORNAMENT 2

826-77164-00-00

1
Out of stock

8

HINGE 1

(806-77145-00-00)

1
Out of stock

9

HINGE 3

806-77147-00-00

1
Out of stock

10

PIN (806-77157-00)

90243-05002-00

1
Out of stock

11

DAMPER 1

(806-77198-00-00)

1
Out of stock

12

DAMPER 2

810-77199-00-00

1
Out of stock

13

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

BODY, HEADLIGHT

(811-84311-00-00)

1
Out of stock

17

SCREW, PAN

98517-05012-00

—

$3.91

In stock

18

HOLDER, ROD 1

(826-77139-00-00)

1
Out of stock

19

STOPPER, SHROUD

(826-77118-00-00)

1
Out of stock

20

CLAMP, ROD

(806-77159-00-00)

1
Out of stock

21

BOLT, HEXAGON

(97306-05015-00)

1
Out of stock

22

WASHER, PLAIN

(807-84344-00-00)

1
Out of stock

23

WINDSHIELD

807-77210-00-00

1
Out of stock

24

TRIM, UPPER

(807-77213-00-00)

1
Out of stock

25

TRIM, LOWER

(807-77214-00-00)

1
Out of stock

26

SCREW, BIND

98903-05016-00

1
Out of stock

27

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

28

WASHER 2

810-77179-00-00

1
Out of stock

29

CLAMP 2

810-77136-00-00

1
Out of stock

30

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

BOLT, HEXAGON

97013-05010-00

—

$0.85

In stock

33

LABEL, SAFETY

288-21659-00-00

1
Out of stock

34

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
