1972 Yamaha EW433B Brake Diagram

← All diagrams

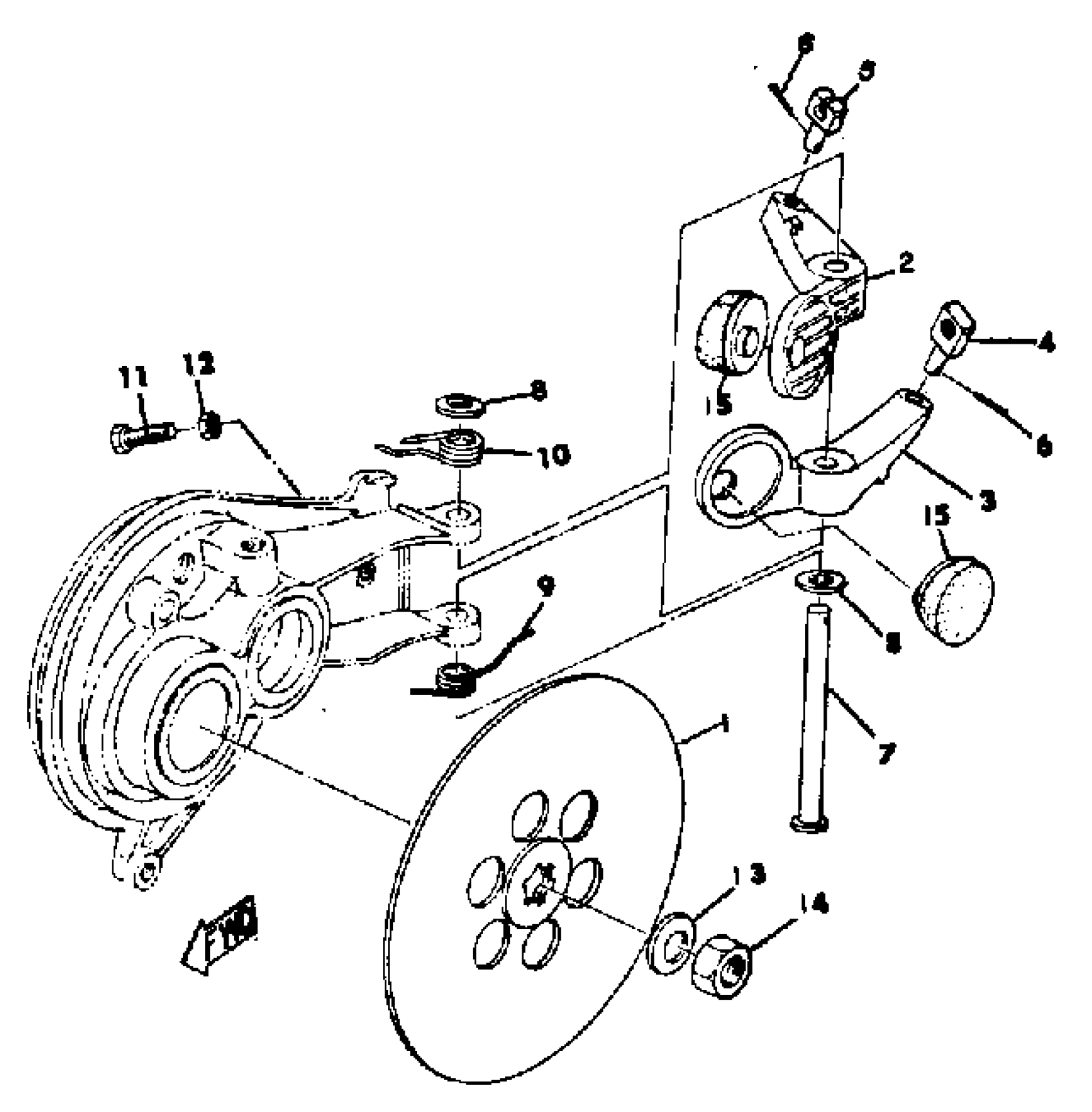

Find the part on the Brake diagram for your 1972 Yamaha EW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW433B Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

(826-25711-00-00)

1
Out of stock

2

BODY, CALIPER 1

(826-25731-00-00)

1
Out of stock

3

BODY, CALIPER 2

(826-25741-00-00)

1
Out of stock

4

PIN (810)

90249-06012-00

—

$9.91

In stock

5

PIN

90249-06009-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

PIN, CLEVIS

(90240-08022-00)

1
Out of stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

9

SPRING, TORSION

(90508-26034-00)

1
Out of stock

10

SPRING, TORSION

90508-26033-00

1
Out of stock

11

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

12

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

13

WASHER, CONICAL SPR

90208-12007-00

1
Out of stock

14

NUT (821-23834-00)

90170-12054-00

1
Out of stock

15

PAD, CALIPER

(826-25732-09-00)

1
Out of stock
