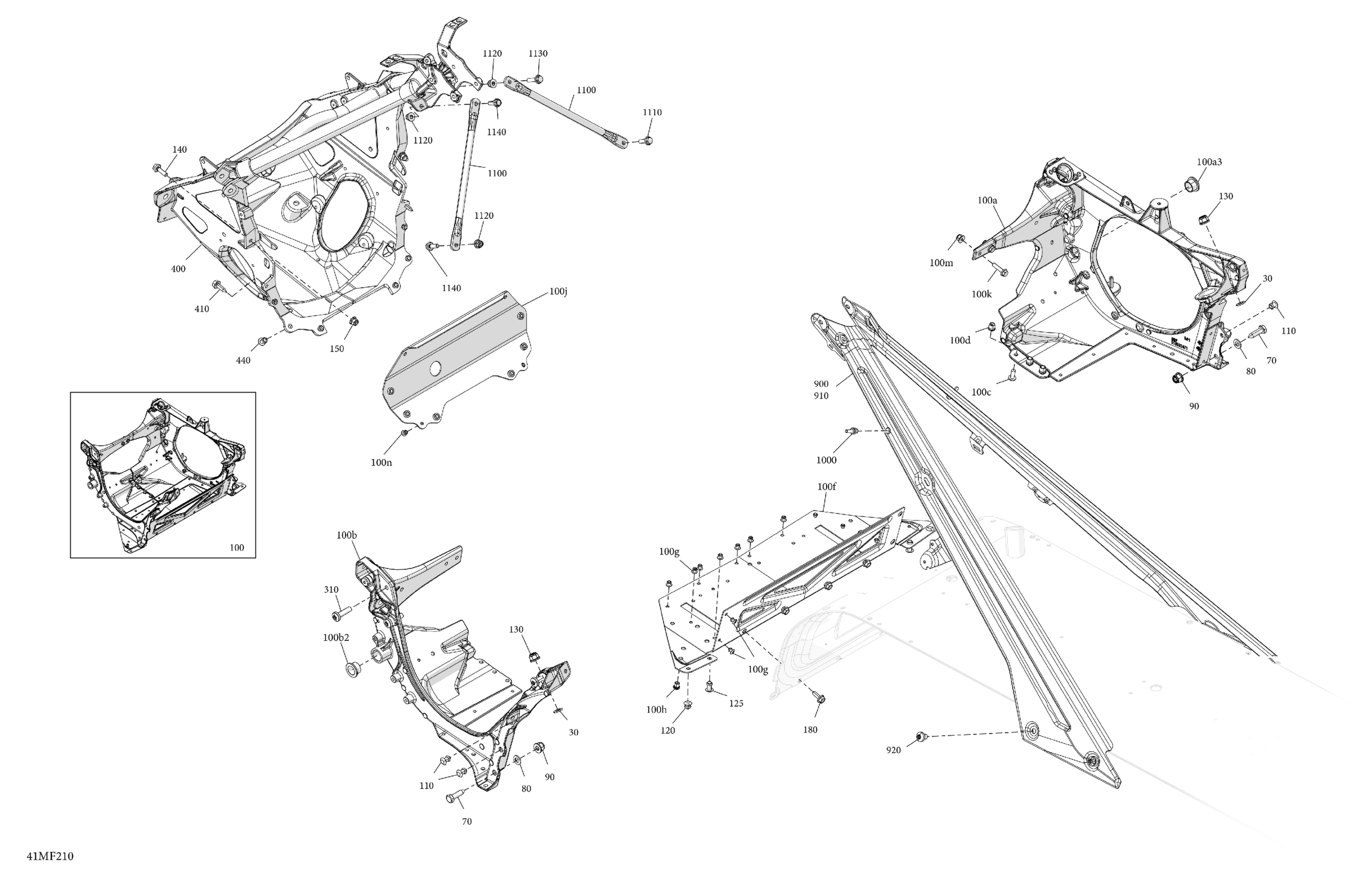

Ski-Doo Europe - SUMMIT - Adrenaline - 600R E -TEC - CDTE - Catalyst Gray - 16X146X2.5PF Track, 2026 Frame - System - Front Section Diagram

#

Description
Price

30

Conical Spring Washer M8

250200146

Unavailable

70

Hex Screw M8 X 30

250000942

Unavailable

80

Flat Washer 8 mm

234081410

Unavailable

90

Hex. Flange Elastic Nut M8

233281414

Unavailable

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518335290

Unavailable

100a

RH Side Member Ass'y | Includes 100a to 100a3

518335196

Unavailable

100a3

Leg Cushion

505073317

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

Unavailable

100b2

Leg Cushion

505073317

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

100d

Collar Huck Magna-Grip 6.4

293150149

Unavailable

100f

Bottom Plate

518332716

Unavailable

100g

Avex Rivet

390909100

$0.29

100h

Insert M5 X 0.8

293450268

Unavailable

100j

Front Member

518330100

$56.12

100k

Hex. Flange Screw M6 X 20

207662046

Unavailable

100m

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

100n

Avex Rivet

390909100

$0.29

110

Rivet Ornit 6,5 X 16.5

293150267

Unavailable

120

Rivet Ornit 6,5 X 12.5

293150265

Unavailable

125

Rivet Ornit 6,5 X 18.5

293150268

Unavailable

130

Hex. Flange Elastic Nut M8

233281414

Unavailable

140

Hex. Flange Screw M6 X 20

207662046

Unavailable

150

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

180

Hex. Flange Screw M6 X 16

207661646

Unavailable

310

Screw-Pan HD.Torx M8X30

250001060

Unavailable

400

Chassis Suspension Module Ass'y

518334549

Unavailable

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

Unavailable

440

Hex. Flange Screw M6 X 16

207661646

Unavailable

900

Deep Black, LH Rear Diagonal Cross Member

518336929

Unavailable

910

Deep Black, RH Rear Diagonal Cross Member

518336930

Unavailable

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1000

Insert M5 - 0.8

293450267

Unavailable

1100

Upper Colomn Support

518329974

Unavailable

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

Unavailable

1120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1130

Hex. Flange Screw M6 X 25

207662556

Unavailable

1140

Hex. Flange Screw M6 X 20

207662046

Unavailable
