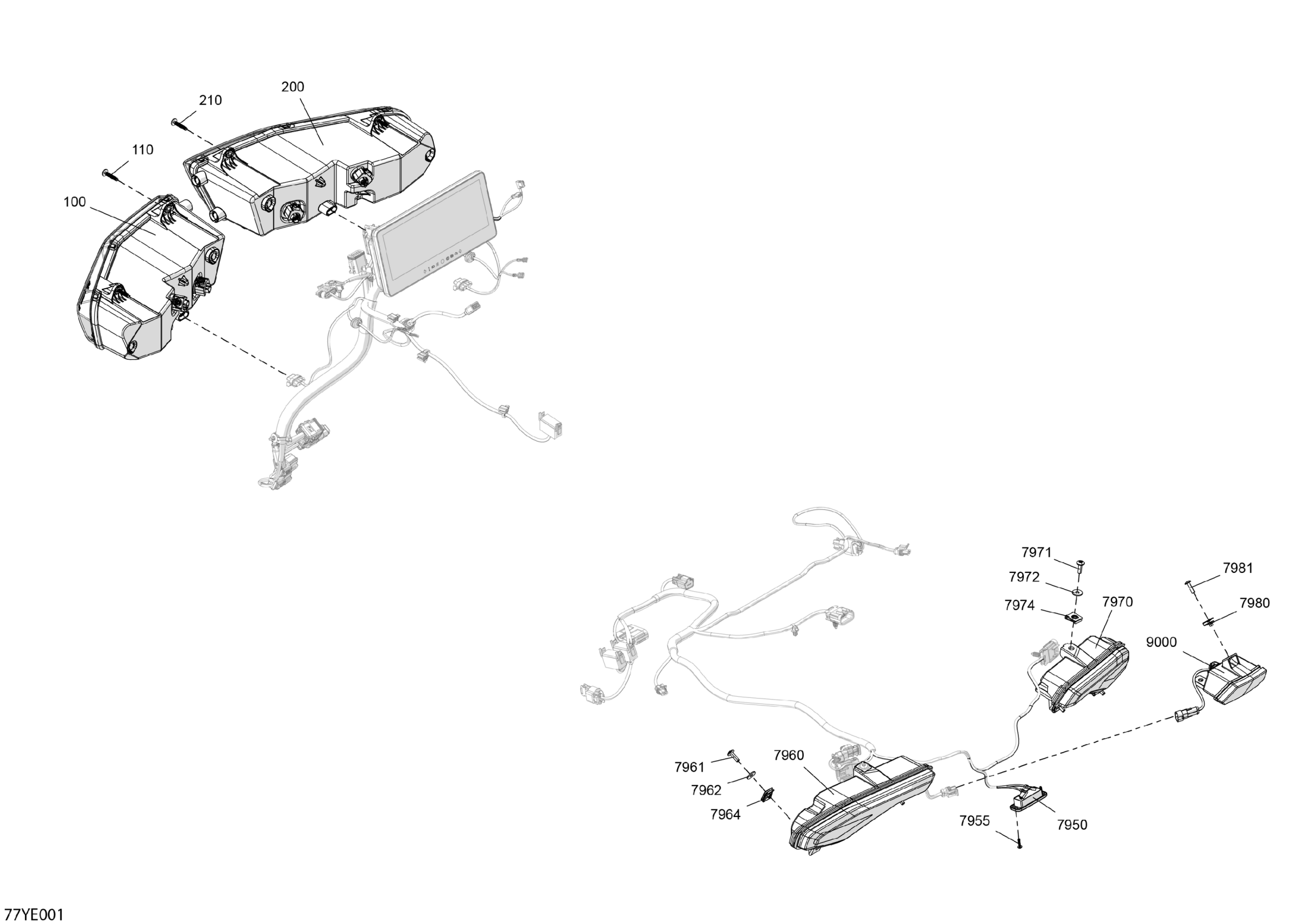

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Electric - Vehicle Lighting Diagram

Description

Price

100

LH Headlight

710006578

$779.99

110

Screw PT K60 X 30

250000949

$2.00

200

RH Headlight

710006579

$779.99

210

Screw PT K60 X 30

250000949

$2.00

7950

License Light

710005501

$55.19

7955

Hex. Flange Screw K40 X 16

250001123

$2.00

7960

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

7961

Torx Screw M6 X 20

250000722

$1.54

7962

Flat washer M6

250200164

$0.96

7964

Panel Nut M6 X 1.0

250100208

$1.22

7970

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

7971

Torx Screw M6 X 20

250000722

$1.54

7972

Flat washer M6

250200164

$0.96

7974

Panel Nut M6 X 1.0

250100208

$1.22

7980

Panel Nut M5 X 0.8

250000958

$4.00

7981

Torx Truss Screw M5 X 20

250000715

$2.00

9000

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable
