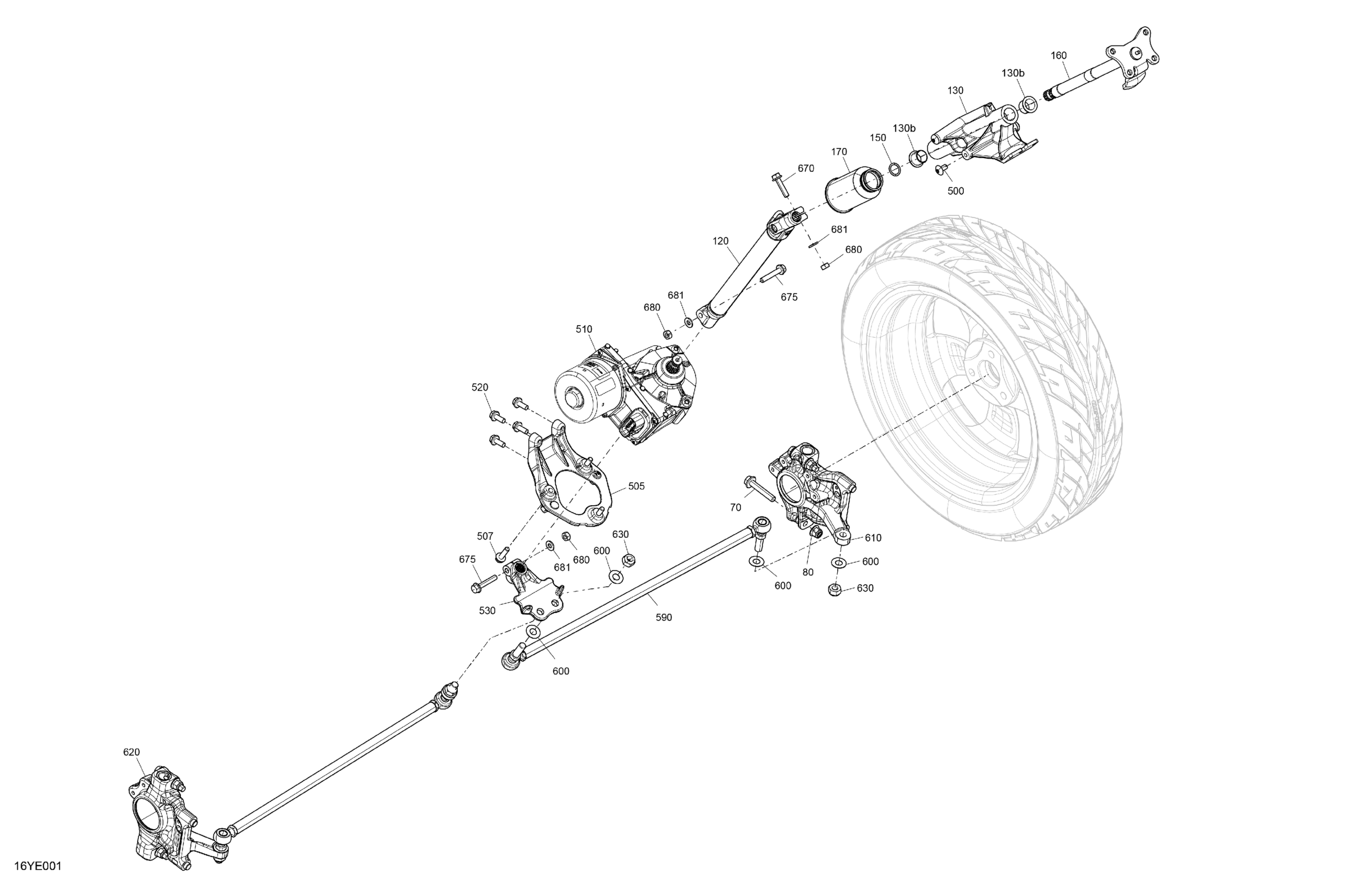

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Mechanic - Steering Column Diagram

Description

Price

Hex. Flange Screw M10 X 55

207605554

$8.00

Flange Elastic Nut M10

233201466

$2.63

120

Steering Column

709402393

$155.00

130

Steering Column Support | Included 130 to 130b

709402496

$130.00

130b

Steering Bushing

709402725

$3.17

150

O-Ring

709000089

$15.35

160

Upper Steering Column

709401397

$160.00

170

Bellows

709400790

$13.00

500

Torx Screw M8 X 16

250000751

$4.64

505

DPS Support

709401772

$44.00

507

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

510

Power Steering Ass'y

709402871

$1,751.51

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

530

Pitman Arm

709401760

$38.00

590

RH Tie Rod Ass'y

709403098

$159.00

600

Hardened Washer

706200281

$2.34

610

RH Knuckle Assembly

709402236

$190.00

620

LH Knuckle Assembly

709402233

$196.00

630

Hex. Elastic Hex. Nut M12

250100089

$0.39

670

Hex. Flange Screw M8 X 35

250001021

$3.61

675

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.30

680

Hex. Nut M8

232081417

$3.00

681

Washer

503189157

$3.20
