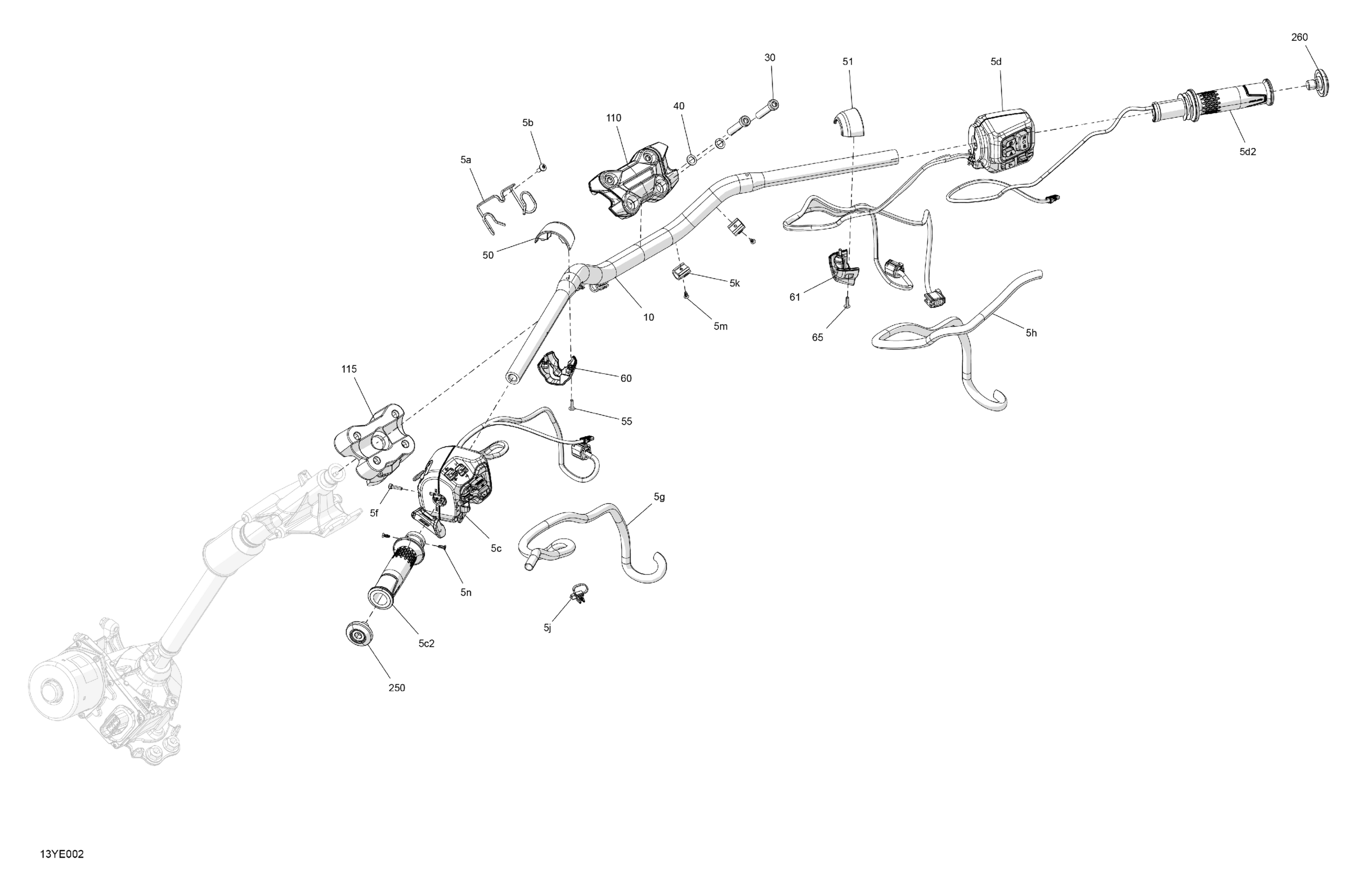

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Mechanic - Handlebar Diagram

#

Description
Price

10

Carbon Black, Handlebar

709403215

$122.00

30

Thin Socket Screw, Scotch Grip, M10

250000997

$7.00

40

Stainless Flat Washer, 10 mm

250200105

$1.74

50

LH Upper Switch Trim

709402943

$10.00

51

RH Upper Switch Trim

709402957

$10.00

55

Torx-Truss Pt K40 X 16

250000759

$1.74

60

LH Lower Switch Trim

709402944

$10.00

61

RH Lower Switch Trim

709402958

$9.00

65

Torx-Truss Pt K40 X 16

250000759

$1.74

110

Handlebar Support

709402377

$66.00

115

Black, Central Handle Support

709401906

$83.00

250

Handlebar End Piece

709403026

$28.00

260

Handlebar End Piece

709403026

$28.00

5a

Wiring Harness Support

709402446

$15.00

5b

Torx Screw M5 X 14

250000742

$1.20

5c

LH Front Multifunction Switch Ass'y | Includes 5c to 5c2

710010411

$510.00

5c2

LH Heated Handle Bar Grip

709403168

$321.00

5d

RH Front Multifunction Switch Ass'y | Includes 5d to 5d2

710010413

$510.00

5d2

RH Heated Handle Bar Grip

709403169

$321.00

5f

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.00

5g

Braided Sleeve

710004231

$39.00

5h

Braided Sleeve

710004231

$39.00

5j

Tie Wrap Clip

710005982

$4.00

5k

Wire Guide

709401804

$3.00

5m

Pop Rivet 5/32

390403000

$0.34

5n

Screw Flat Ctsk Torx M4 X 10

250001349

$4.00
