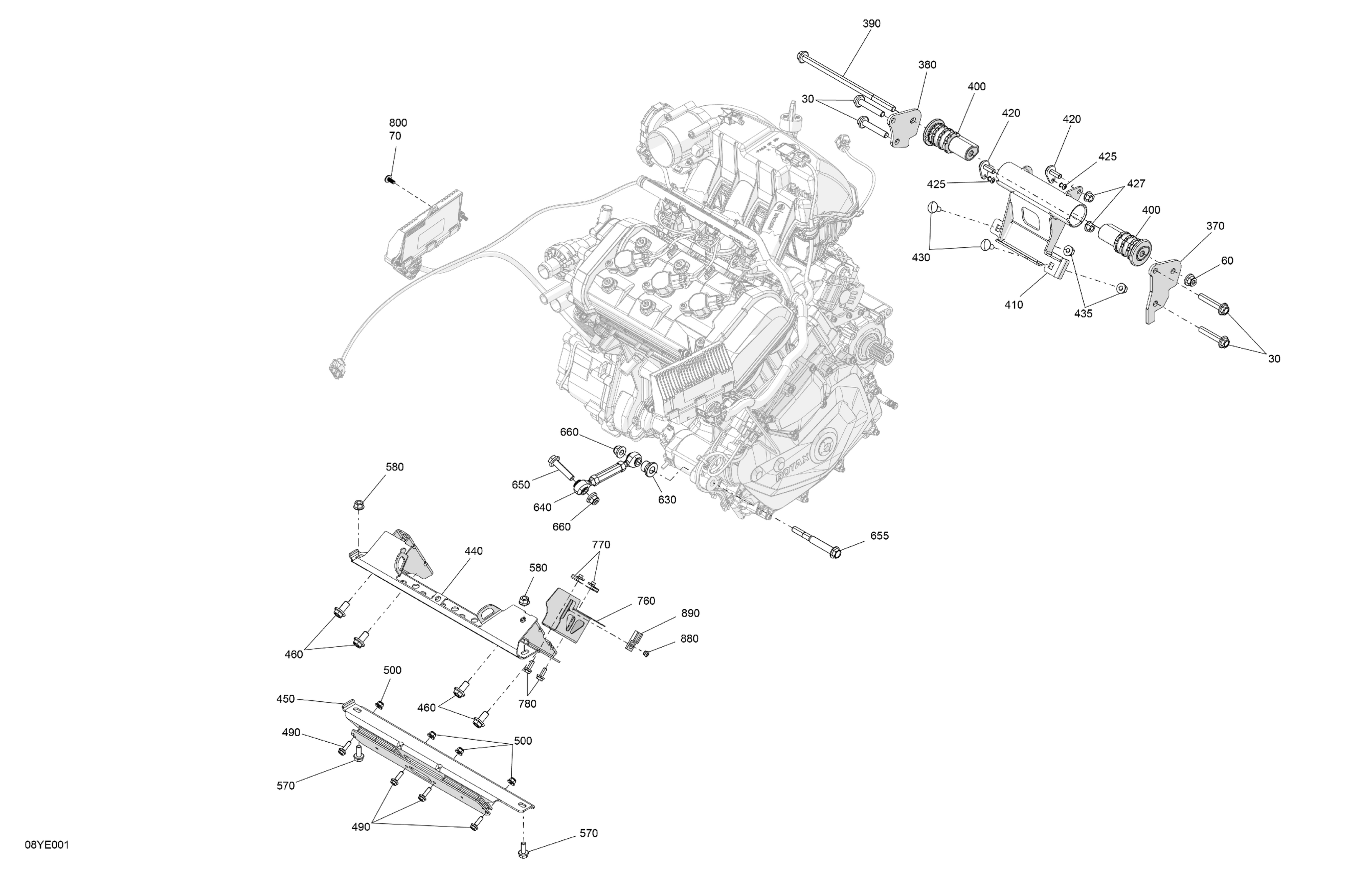

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Engine - System Diagram

#

Description
Price

30

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$4.00

60

Flange Elastic Nut M10

233201466

$2.63

70

Oval Head Torx Screw K60 X 16

250000546

$1.74

370

LH Engine Support

707001293

$22.00

380

RH Engine Support

707001294

$22.00

390

Hex. Flange Screw M10 X 220

250000507

$8.00

400

Vibration Damper

707003044

$90.00

410

Frame Extension

707000877

$95.00

420

Attach

707001292

$19.00

425

Pop Rivet 3/16 X ,551

293150301

$0.64

427

Hex. Flange Nut

233081436

$1.63

430

Carriage Bolt M8 X 20

207782046

$2.00

435

Hex. Flange Nut

233081436

$1.63

440

Front Engine Support

707001561

$105.00

450

Rubber Mount

707000876

$135.00

460

Hex Flange Screw M10 X 20

207502044

$4.28

490

Hex. Flange Screw M6 X 20

207662054

$0.83

500

Hex. Flange Elastic Nut M6

233261466

$1.66

570

Hex. Flange Screw M8 X 20

207682046

$1.82

580

Hex. Flange Nut

233081436

$1.63

630

Spacer

707001736

$27.00

640

Connecting Rod

707001918

$64.00

650

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$7.00

655

Hex. Flange Screw M10 X 100

250001099

$12.00

660

Flange Elastic Nut M10

233201466

$2.63

760

Connector Support

707001353

$15.00

770

Panel Nut M6 X 1.0

250100198

$1.73

780

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

800

Oval Head Torx Screw K60 X 16

250000546

$1.74

880

Pop Rivet 3/16 X ,425

293150293

$0.26

890

Clip

270000141

$8.33
