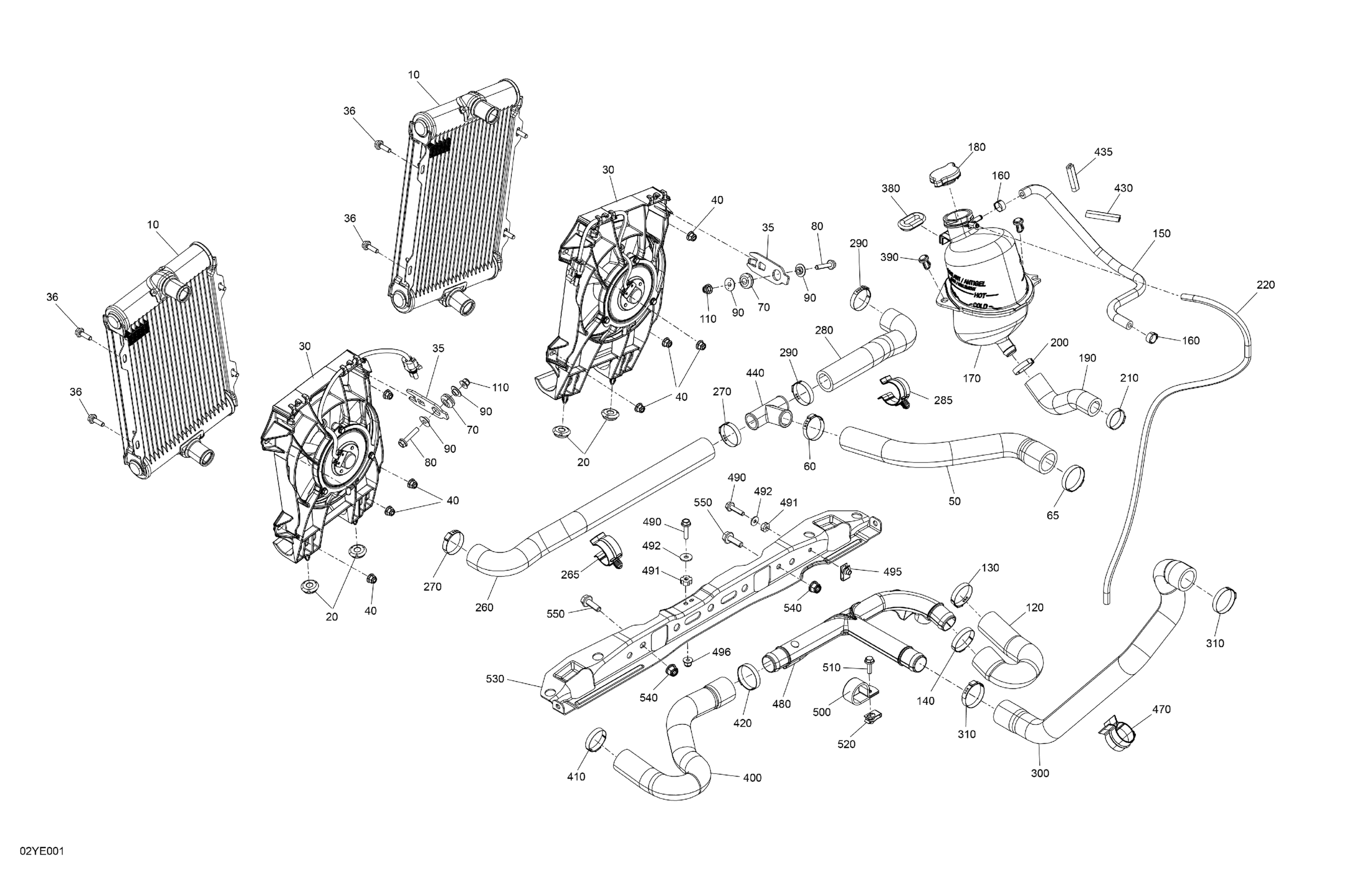

Can-Am Europe - RT LIMITED - Dark Edition - G1SB - Hyper Silver, 2025 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200314

$434.00

20

Grommet

705003264

Unavailable

30

Fan Assembly

709200555

$290.00

35

Support

709200404

$7.00

36

Hex. Flange Screw M6 X 20

207662054

$0.83

40

Hex. Flange Elastic Nut M6

233261466

Unavailable

50

Upper Formed Water Pump Hose

709200871

$33.00

60

Crimp Clamp

293650333

Unavailable

65

Oetiker Gear Clamp

293650199

Unavailable

70

Overmolded Grommet

293720130

Unavailable

80

Hex. Flange Screw M6 X 30

207663054

$3.61

90

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

120

RH Lower Radiator Hose

709200879

$32.00

130

Crimp Clamp

293650333

Unavailable

140

Oetiker Gear Clamp

293650199

Unavailable

150

Formed Hose

709200324

$31.00

160

Oetiker Clamp

293650046

Unavailable

170

Coolant Tank

709200749

$100.00

180

Pressure Cap

509000187

Unavailable

190

Lower Formed Coolant Tank Hose

709200874

$39.00

200

Oetiker Gear Clamp

293650165

$4.32

210

Oetiker Gear Clamp

293650165

$4.32

220

Polyurethane Hose 10000Mm Long

219704410

Unavailable

260

LH Upper Radiator Hose

709200880

$33.00

265

Clip

275500951

$8.29

270

Crimp Clamp

293650333

Unavailable

280

RH Upper Radiator Hose

709200881

$33.00

285

Clip

275500951

$8.29

290

Crimp Clamp

293650333

Unavailable

300

Lower Formed Water Pump Hose

709200877

$63.00

310

Oetiker Gear Clamp

293650199

Unavailable

380

Oblong Grommet

705003668

Unavailable

390

Tuflok Plastic Rivet

293150230

Unavailable

400

LH Lower Radiator Hose

709200882

$32.00

410

Crimp Clamp

293650333

Unavailable

420

Oetiker Gear Clamp

293650199

Unavailable

430

Trim 1000Mm Long

219704354

Unavailable

435

Trim 1000Mm Long

219704354

Unavailable

440

T-Fitting

509001313

Unavailable

470

Retainer

275500590

Unavailable

480

Connector

709200468

$19.00

490

Hex. Flange Screw M6 X 25

207562544

$1.39

491

Shock Washer

293830160

$4.00

492

Flat Washer 6 mm

234062410

$0.64

495

Panel Nut M6 X 1.0

250100198

Unavailable

496

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

500

Open Clamp

293750035

$4.00

510

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

520

Panel Nut M6 X 1.0

250100198

Unavailable

530

Support

709200400

$42.00

540

Elastic Flange Nut M8

233281464

$0.83

550

Hex. Flange Screw M8 X 25

207682544

$0.90
