Description

Price

10a

Deep Black, Ski Pilot RX | Includes 10a to 10a1

505075971

$175.35

10a1

Ski Bushing

505071781

$15.35

10b

Rivet Ski Handle Short

505075902

$4.43

10c

Neo Yellow, Ski Handle

505075443

$35.35

10d

Rivet Ski Handle Long

505075906

$5.03

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

Unavailable

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

215b

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

215c

Ski Axle

505073691

$12.58

215d

Spacer

505074949

$2.03

300

Neo Yellow, LH Ski Leg +14

505075749

$212.28

310

Neo Yellow, RH Ski Leg +14

505075750

$209.20

320

Leg Bushing

505072690

Unavailable

400

Black, LH Lower Suspension Arm

505075524

$193.82

410

Black, RH Lower Suspension Arm

505075525

$193.82

420

Bushing

505072208

$3.14

430

Bushing

505075323

$3.82

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.85

480

Plate

505073844

$2.75

500

Black, LH Upper Suspension Arm

505075526

$143.05

510

Black, RH Upper Suspension Arm

505075527

$143.05

520

Bushing

505072250

$3.14

530

Bushing

505075322

$3.82

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

700

Suspension Sensor

710004740

$147.66

710

LH Front Sensor Support | Includes 710 to 710a

505074753

$40.74

710a

Clinch Stud M6 X 20

250300027

$1.92

715

RH Front Sensor Support | Includes 715 to 715a

505074773

$40.74

715a

Clinch Stud M6 X 20

250300027

$1.92

720

Hex. Flange Screw M5 X 10

207551044

$3.38

730

Ball Joint

505074754

$16.89

740

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

750

Hex. Flange Elastic Nut M6

233261466

$1.66

760

Hex. Flange Elastic Nut M6

233261466

$1.66

800

Black, Stabilizer Bar

505075686

$67.99

810

Bushing

505072064

$2.22

830

Black, Stabilizer Bar Link

505075627

$15.35

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$51.51

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

1910

Washer

503192496

$0.75

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505072594

$17.66

1940

Elastic Flange Nut M8

233281466

$0.83

1950

Spacer

505073892

$2.17

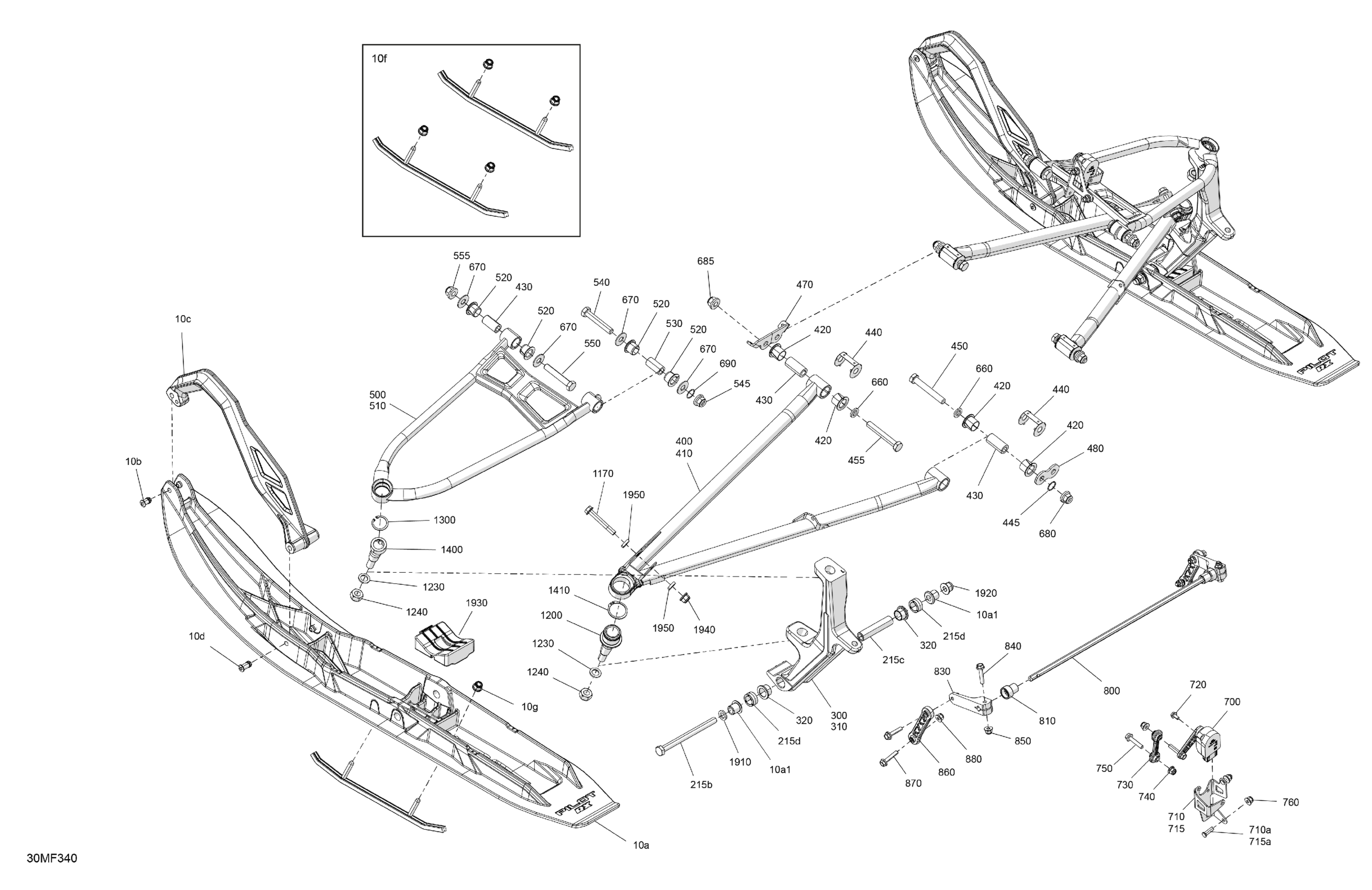

Ski-Doo Europe - MXZ - X-RS - 850 E-TEC - MVTL - Mineral Blue - 15X137X1.5IR Track, 2026 Suspension - Front Diagram
