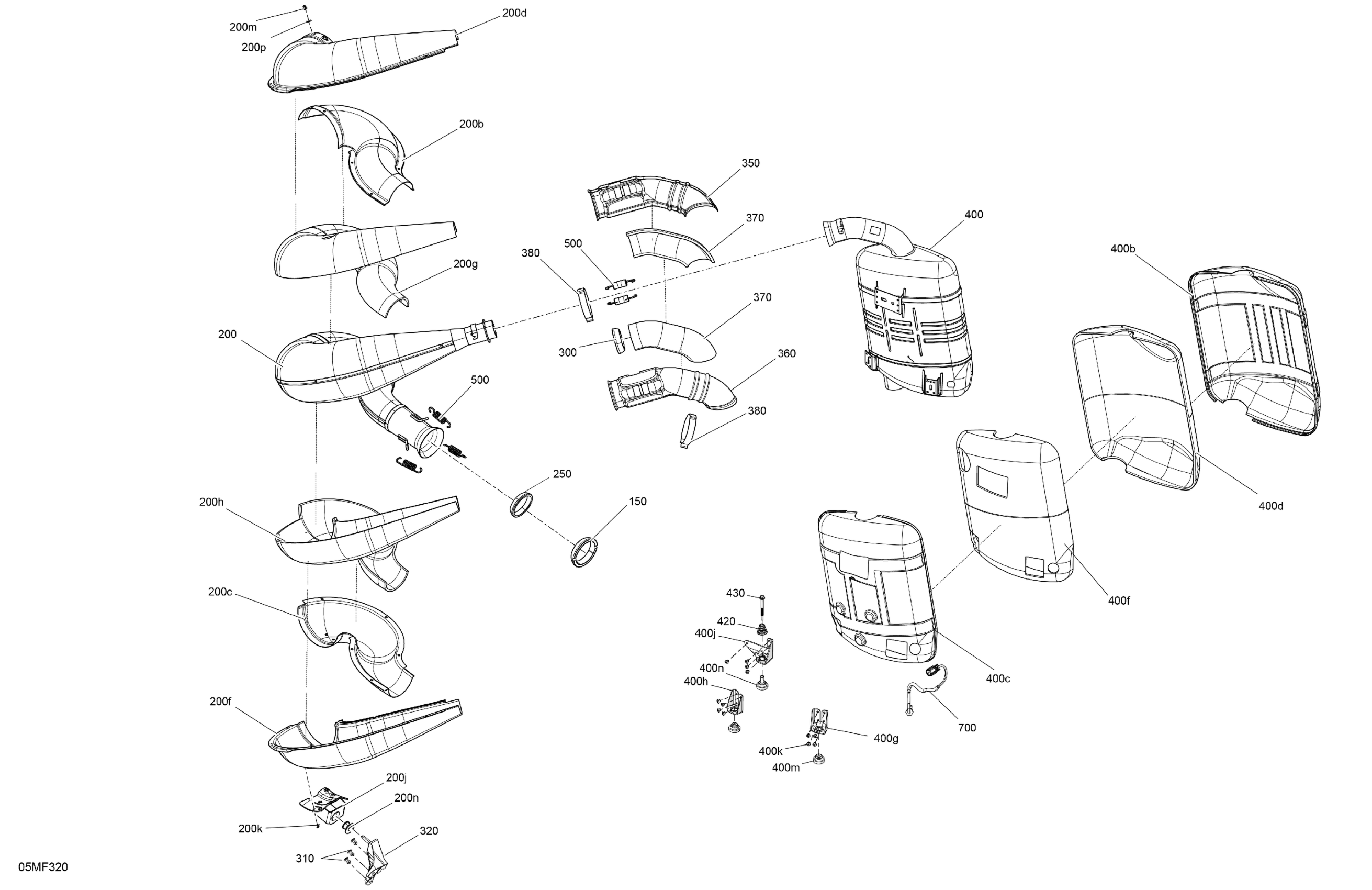

Ski-Doo Europe - MXZ - X-RS - 850 E-TEC - MVTL - Mineral Blue - 15X137X1.5IR Track, 2026 Engine - Exhaust Diagram

#

Description

Price

150

Exhaust Gasket

514053487

Unavailable

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056404

Unavailable

200b

Front Upper Aluminum Shell

514055222

Unavailable

200c

Shell

514056282

Unavailable

200d

Upper Rear Shell

514056420

Unavailable

200f

Rear Lower Aluminum Shell

514056141

Unavailable

200g

Glass Wool

514056422

Unavailable

200h

Glass Wool

514056352

Unavailable

200j

Plate

514055844

Unavailable

200k

Avex Rivet

390909200

Unavailable

200m

Avex Rivet

390909200

Unavailable

200n

Vibration Damper

514056375

Unavailable

200p

Washer 3/16

514055537

Unavailable

250

Seal

514055965

Unavailable

300

Exhaust Gasket

514055294

Unavailable

310

Rivet Ornit 6,5 X 16.5

293150267

Unavailable

320

Overmolded Exhaust Support

514056346

Unavailable

350

Front Shield

514055283

Unavailable

360

Rear Shield

514055284

Unavailable

370

Wool Glass Tail

514056381

Unavailable

380

Clip

514056035

Unavailable

400

Muffler Ass'y | Includes 400 to 400n

514056358

Unavailable

400b

RH Deflector

514055980

Unavailable

400c

LH Deflector

514056315

Unavailable

400d

Glass Wool

514056353

Unavailable

400f

Glass Wool

514056354

Unavailable

400g

Exhaust Support

514056193

Unavailable

400h

Exhaust Support

514056082

Unavailable

400j

Exhaust Support

514056083

Unavailable

400k

Pop Rivet 3/16 X ,425

293150293

Unavailable

400m

Stopper

514055203

Unavailable

400n

Stopper Ass'y

514056138

Unavailable

420

Spring

514055282

Unavailable

430

Hex. Flange Screw M6

250000926

Unavailable

500

Spring

514056279

Unavailable

700

Exhaust Temperature Sensor

514056266

Unavailable
