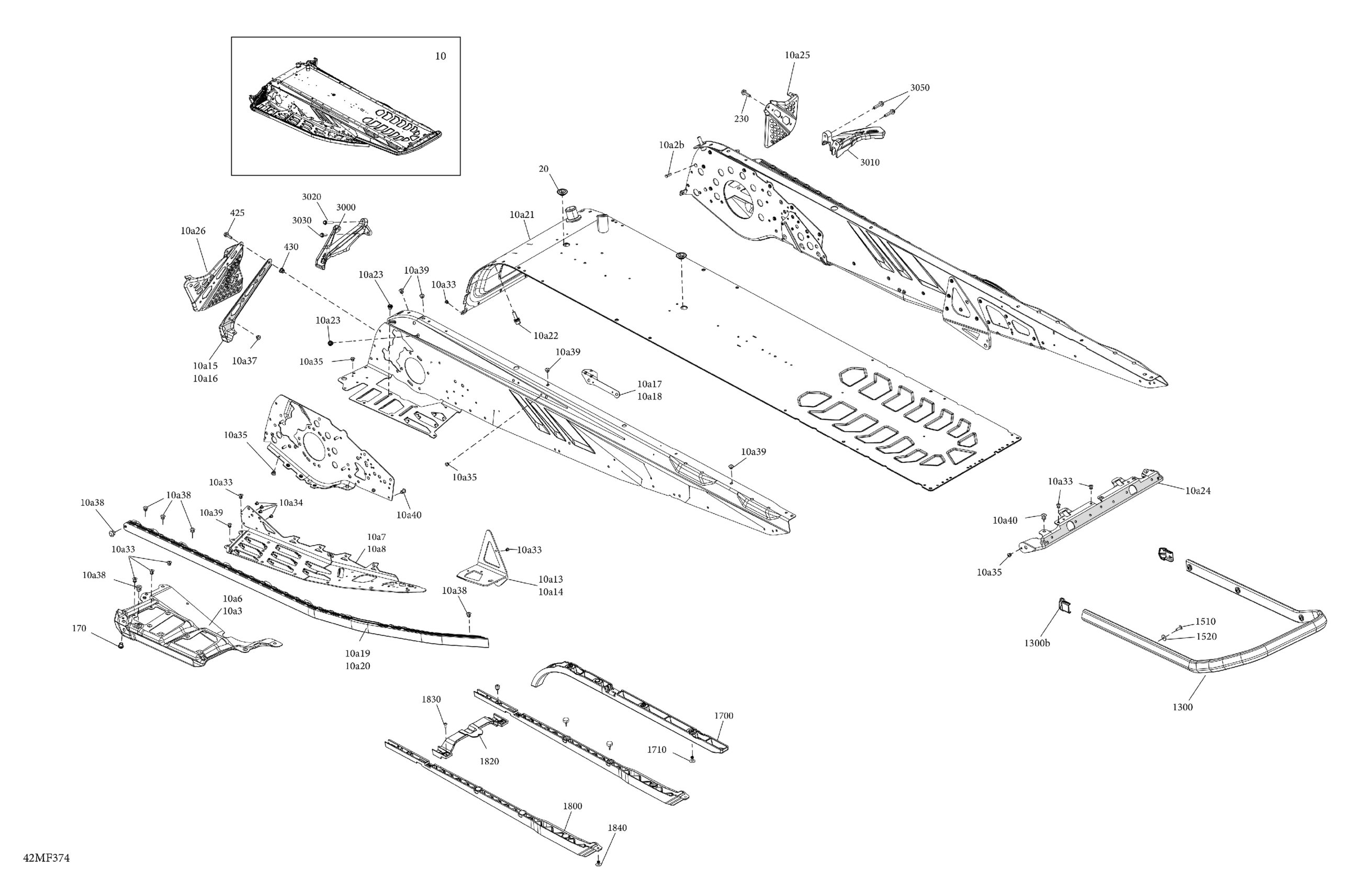

Ski-Doo Europe - MXZ - X-RS - 600R E -TEC - MZTD - Mineral Blue - 15X129X1.5IR Track, 2026 Frame - System - Rear Section Diagram

#

Description

Price

10

Mineral Blue, Chassis Tunnel Module 129

415131040

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

Unavailable

10a3

Deep Black, RH Footrest Reinforcement

518330738

Unavailable

10a6

Deep Black, LH Footrest Reinforcement

518331523

Unavailable

10a7

RH Footrest

518332921

Unavailable

10a8

LH Footrest

518332306

Unavailable

10a13

RH Rear Suspension Support

518334387

Unavailable

10a14

LH Suspension Arm Anchorange

518332305

Unavailable

10a15

Stirrup Reinforcement

518334507

Unavailable

10a16

Deep Black, LH Chassis Reinforcement

518332924

Unavailable

10a17

LH Member Fixation Plate

518330299

Unavailable

10a18

RH Under Chassis Reinforcement

518331745

Unavailable

10a19

RH Roller

518329023

Unavailable

10a20

LH Roller

518329024

Unavailable

10a21

Radiator Tunnel 129

518335123

Unavailable

10a22

Protruding Stud M8 x 22

250300652

Unavailable

10a23

Clinch Nut M6 Hexsert

605636003

Unavailable

10a24

Rear Cap

518328990

Unavailable

10a25

RH Footrest

518333006

Unavailable

10a26

LH Footrest

518333858

Unavailable

10a33

Avex Rivet

390909100

Unavailable

10a34

Rivet Hucklok

293150163

Unavailable

10a35

Avex Rivet

390909200

Unavailable

10a37

Rivet Ornit 6,5 X 10.5

293150264

Unavailable

10a38

Rivet Ornit 6,5 X 12.5

293150265

Unavailable

10a39

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

10a40

Rivet Ornit 6,5 X 16.5

293150267

Unavailable

20

Black, Plug

293730052

Unavailable

170

Insert M5 - 0.8

293450267

Unavailable

230

Hex. Flange Screw M6 X 20

207562056

Unavailable

425

Hex. Flange Screw M6 x 35

207663546

Unavailable

430

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1300

Rear Bumper | Includes 1300 to 1300b

518328745

Unavailable

1300b

Cap

520001612

Unavailable

1700

Front Protector

518329982

Unavailable

1710

Black, Ornit Rivet 3/16 X ,675

293150308

Unavailable

1800

Rear Protector

518329979

Unavailable

1820

Central Protective Structure

518333936

Unavailable

1830

Torx Truss Screw K40 X 12

250000577

Unavailable

1840

Black, Ornit Rivet 3/16 X ,675

293150308

Unavailable

3000

LH Front Stirup

518334924

Unavailable

3010

Toe Hold

518329134

Unavailable

3020

Hex. Flange Screw M6 X 30

250001211

Unavailable

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

3050

Hex Screw Forming M6 x 25

250001124

Unavailable

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

1520

Flat Washer

224061201

Unavailable
