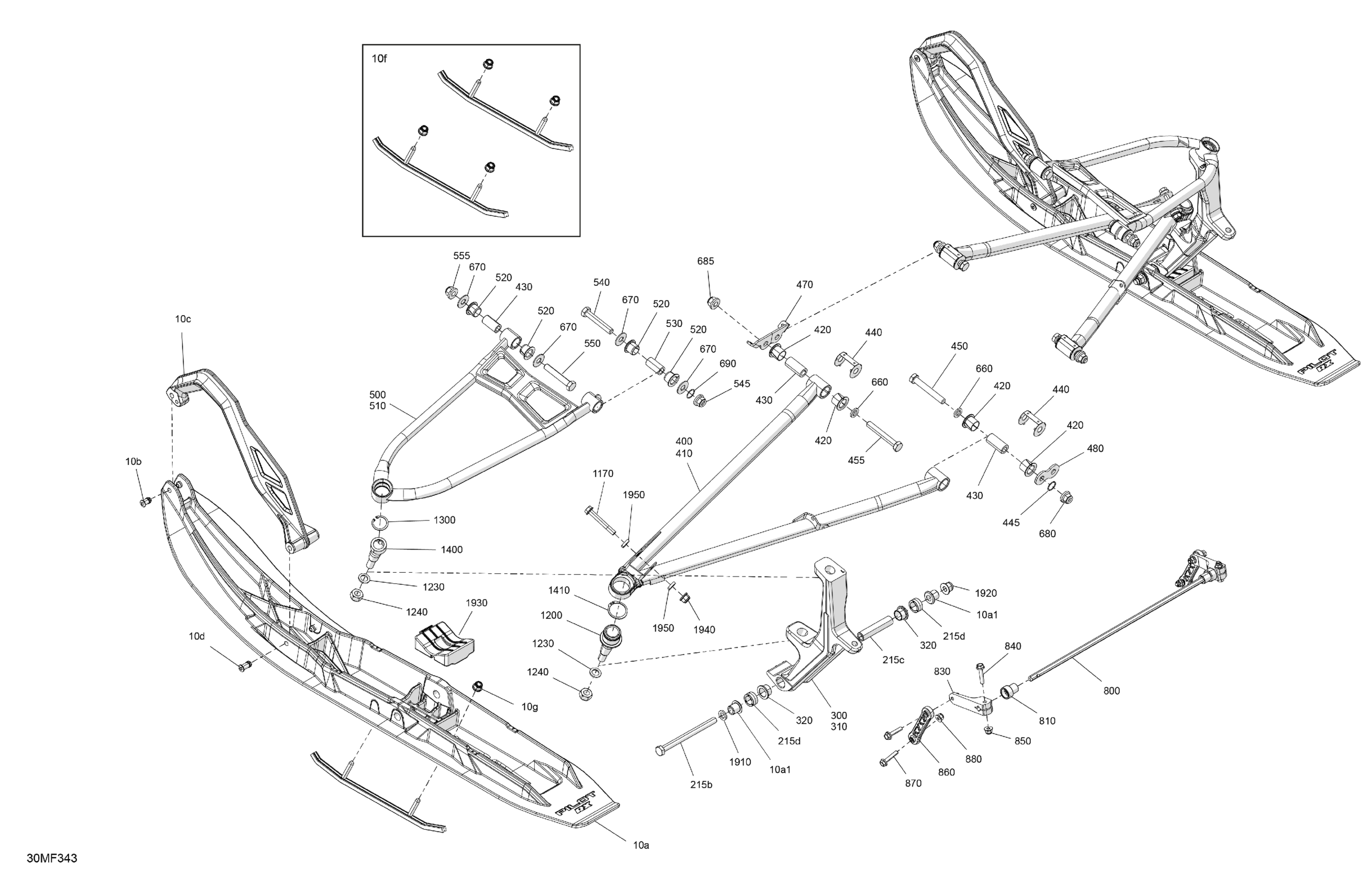

Ski-Doo Europe - MXZ - X-RS - 600R E -TEC - MZTD - Mineral Blue - 15X129X1.5IR Track, 2026 Suspension - Front Diagram

#

Description
Price

10a

Deep Black, Ski Pilot RX | Includes 10a to 10a1

505075971

Unavailable

10a1

Ski Bushing

505071781

Unavailable

10b

Rivet Ski Handle Short

505075902

Unavailable

10c

Neo Yellow, Ski Handle

505075443

Unavailable

10d

Rivet Ski Handle Long

505075906

Unavailable

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

Unavailable

10g

Hex. Flange Elastic Nut M8

233281414

Unavailable

215b

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

215c

Ski Axle

505073691

Unavailable

215d

Spacer

505074949

Unavailable

300

Neo Yellow, LH Ski Leg +14

505075749

Unavailable

310

Neo Yellow, RH Ski Leg +14

505075750

Unavailable

320

Leg Bushing

505072690

Unavailable

400

Black, LH Lower Suspension Arm

505075524

Unavailable

410

Black, RH Lower Suspension Arm

505075525

Unavailable

420

Bushing

505072208

Unavailable

430

Bushing

505075323

Unavailable

440

Wear Plate

505072634

Unavailable

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

Unavailable

455

Screw Hex. M10 X 70

250001024

Unavailable

470

Wear Plate

505073723

Unavailable

480

Plate

505073844

Unavailable

500

Black, LH Upper Suspension Arm

505075526

Unavailable

510

Black, RH Upper Suspension Arm

505075527

Unavailable

520

Bushing

505072250

Unavailable

530

Bushing

505075322

Unavailable

540

Screw Hex. M10 X 60

250001023

Unavailable

545

Hex. Flange Elastic Nut M10

250100165

Unavailable

550

Screw Hex. M10 X 60

250001023

Unavailable

555

Hex. Flange Elastic Nut M10

250100165

Unavailable

660

Washer

503189564

Unavailable

670

Washer

505072392

Unavailable

680

Hex. Flange Elastic Nut M10

250100165

Unavailable

685

Hex. Flange Elastic Nut M10

250100165

Unavailable

690

O-Ring

505072448

Unavailable

800

Black, Stabilizer Bar

505075686

Unavailable

810

Bushing

505072064

Unavailable

830

Black, Stabilizer Bar Link

505075627

Unavailable

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

850

Hex. Flange Elastic Nut M6

233261466

Unavailable

860

Sway Bar Double Joint Link

505072204

Unavailable

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

Unavailable

880

Hex. Flange Elastic Nut M6

233261466

Unavailable

1170

Hex. Flange Screw M8 X 58

250000824

Unavailable

1200

Ball Joint

505074133

Unavailable

1230

Washer

503192491

Unavailable

1240

Hex Elastic Nut M12 X 1.25

232521464

Unavailable

1300

Circlip

293370070

Unavailable

1400

Upper Ball Joint

505072913

Unavailable

1410

Snap Ring

293370098

Unavailable

1910

Washer

503192496

Unavailable

1920

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

1930

Ski Stopper

505072594

Unavailable

1940

Elastic Flange Nut M8

233281466

Unavailable

1950

Spacer

505073892

Unavailable
