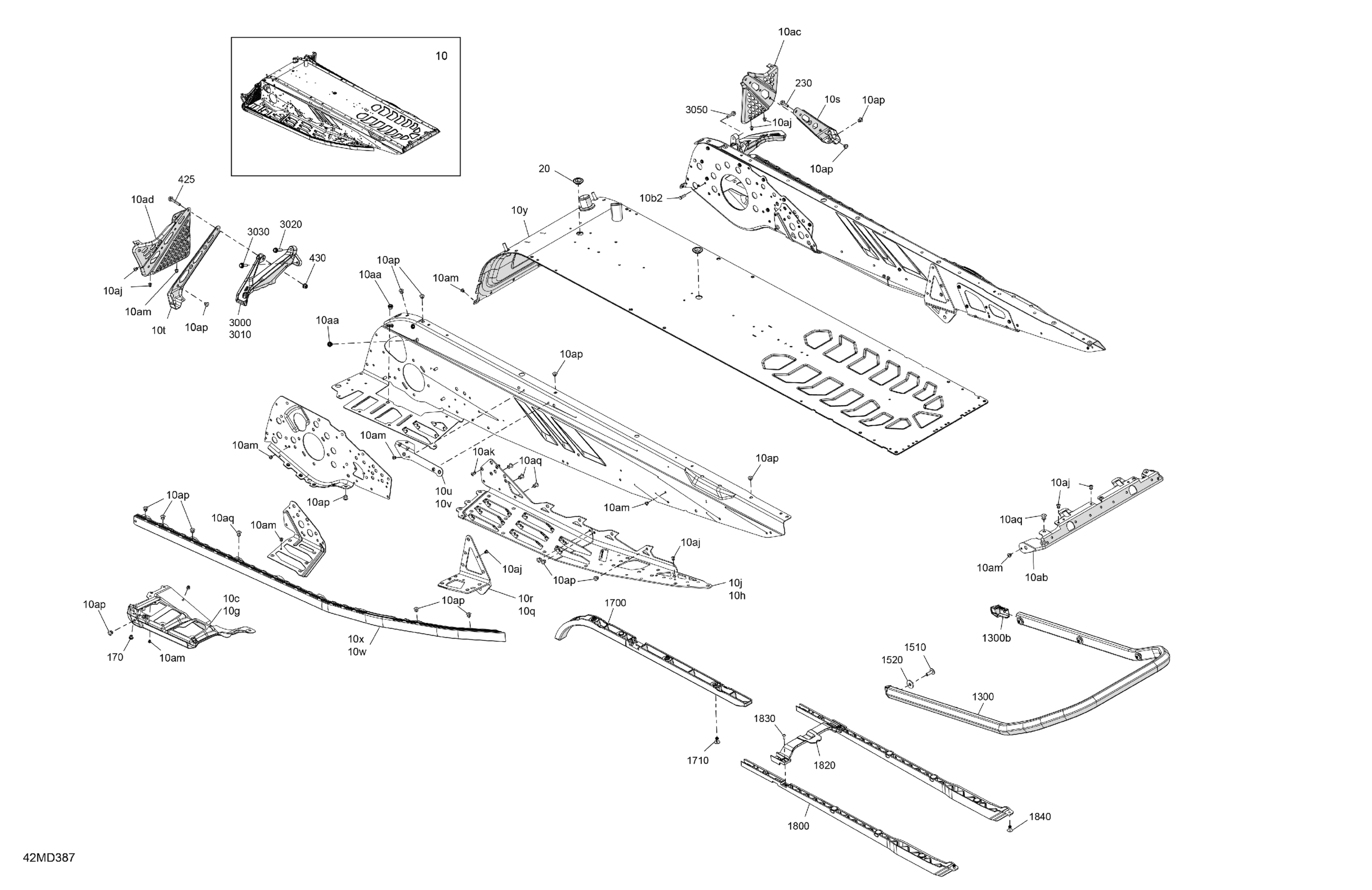

Ski-Doo Europe - MXZ 850 E-TEC - X-RS - MARN - Hyper Silver - 137X15X1.5IR Track, 2024 Frame - System - Rear Section Diagram

#

Description

Price

10

Hyper Silver, Chassis Tunnel Module 129 | Includes 10 to 10aq

415130757

Unavailable

10b2

Clinch Stud M6 X 20

250300027

Unavailable

10c

Deep Black, RH Footrest Reinforcement

518330738

Unavailable

10g

Deep Black, LH Footrest Reinforcement

518331523

Unavailable

10h

RH Footrest

518332921

Unavailable

10j

LH Footrest

518332306

Unavailable

10q

RH Rear Suspension Support This part replaces 518334389.

518334389

Unavailable

10r

LH Rear Suspension Support

518334413

Unavailable

10s

Stirrup Reinforcement

518334507

Unavailable

10t

Deep Black, LH Chassis Reinforcement

518332924

Unavailable

10u

LH Under Chassis Reinforcement

518331744

Unavailable

10v

RH Under Chassis Reinforcement

518331745

Unavailable

10w

RH Roller

518329023

Unavailable

10x

LH Exterior Footrest Reinforcement

518332307

Unavailable

10y

Radiator Tunnel 137 Ass'y

518334488

Unavailable

10aa

Clinch Nut M6 Hexsert

605636003

Unavailable

10ab

Rear Cap

518328990

Unavailable

10ac

RH Footrest

518333006

Unavailable

10ad

LH Footrest

518333858

Unavailable

10aj

Avex Rivet

390909100

Unavailable

10ak

Rivet Hucklok

293150163

Unavailable

10am

Avex Rivet

390909200

Unavailable

10ap

Rivet Ornit 6,5 X 12.5

293150265

Unavailable

10aq

Rivet Ornit 6,5 X 16.5

293150267

Unavailable

20

Black, Plug

293730052

Unavailable

170

Insert M5 - 0.8

293450267

Unavailable

230

Hex. Flange Screw M6 X 20

207562056

Unavailable

425

Hex. Flange Screw M6 x 35

207663546

Unavailable

430

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1300

Rear Bumper | Includes 1300 to 1300b

518328746

Unavailable

1300b

Cap

520001612

Unavailable

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

1520

Flat Washer

224061201

Unavailable

1700

Front Protector

518329982

Unavailable

1710

Pop Rivet 3/16”

293150108

Unavailable

1800

Rear Protector

518329979

Unavailable

1820

Central Protective Structure

518333936

Unavailable

1830

Torx Truss PT K40 x 12

250001131

Unavailable

1840

Pop Rivet 3/16”

293150108

Unavailable

3000

LH Front Stirup

518334924

Unavailable

3010

Toe Hold

518329134

Unavailable

3020

Hex. Flange Screw M6 X 25

250000793

Unavailable

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

Unavailable

3050

Hex Screw Forming M6 x 25

250001124

Unavailable
