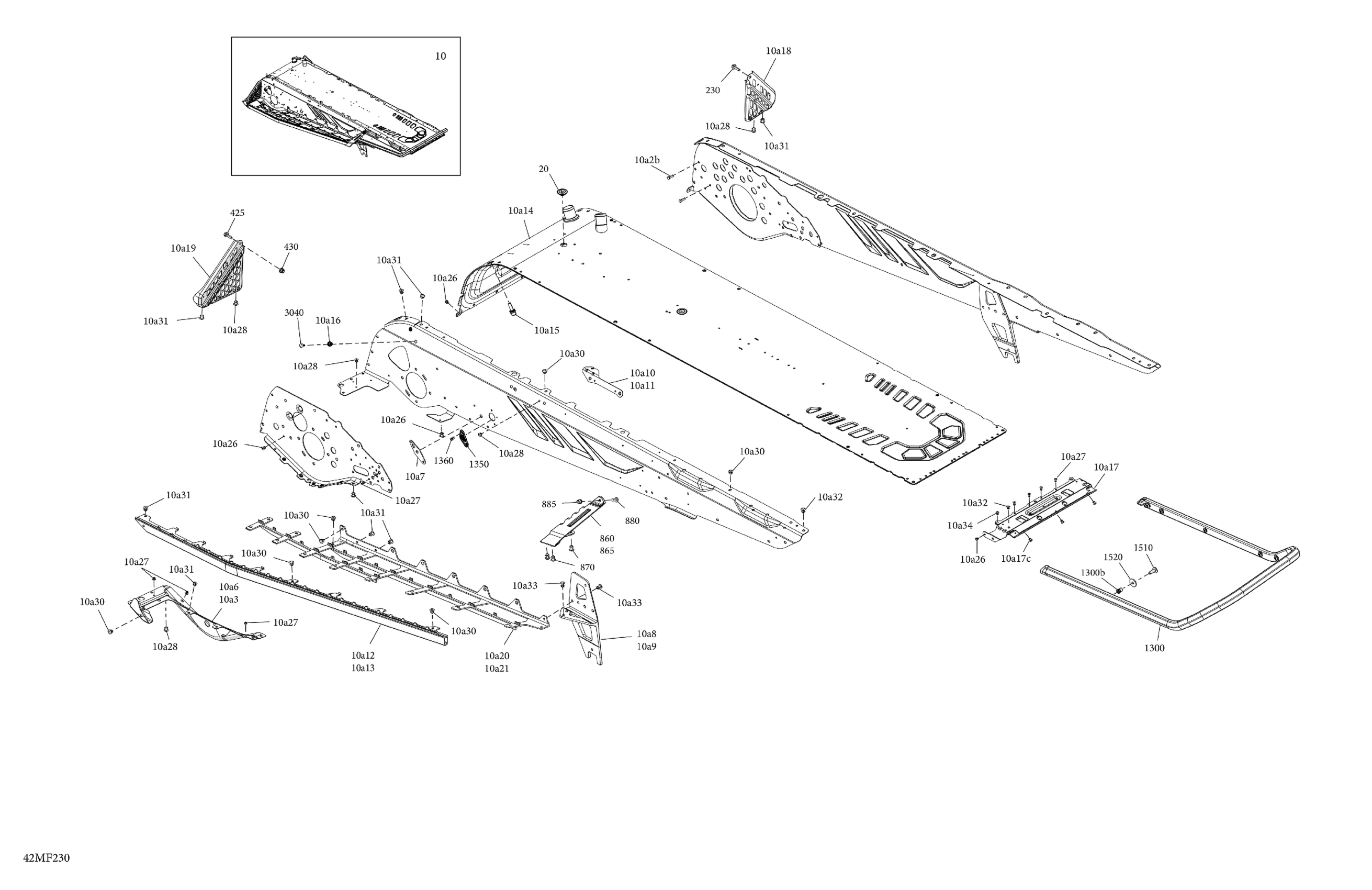

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC - VCTA - Scandi Blue - 15X154X3P4 Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Scandi Blue, Chassis Tunnel Module 154 Short

415131049

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$1.92

10a3

RH Footrest Reinforcement

518332455

$81.51

10a6

LH Footrest Reinforcement

518332456

$81.51

10a7

Front Suspension Arm Reinforcement

518335959

$3.85

10a8

LH Rear Suspension Support

518335956

$94.58

10a9

RH Rear Suspension Support

518335957

$42.28

10a10

LH Member Fixation Plate

518330299

$16.12

10a11

RH Under Chassis Reinforcement

518331745

$16.89

10a12

RH Formed Boarding Step

518332833

$184.58

10a13

LH Formed Boarding Step

518332834

$184.58

10a14

Radiator Tunnel 137

518336157

$703.05

10a15

Protruding Stud M8 x 22

250300652

$4.28

10a16

Clinch Nut M6 Hexsert

605636003

$4.12

10a17

Tss Tunnel Cap Ass'y | Includes 10a17 to 10a17c

518335914

$53.82

10a17c

Rivet Ornit 4,8 X 11,3

293150312

$0.29

10a18

RH Footrest

518332462

$42.28

10a19

LH Footrest

518332463

$42.28

10a20

LH Rear Perforated Footstep

518335287

$109.20

10a21

RH Rear Perforated Footstep

518335288

$109.20

10a26

Rivet Ornit 4,8 X 11,3

293150312

$0.29

10a27

Rivet Ornit 4.8 X 14

293150289

$0.91

10a28

Rivet Ornit 4,8 X 8,8

293150313

$0.29

10a30

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a31

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10a32

Rivet Ornit 6,5 X 10.5

293150271

$1.94

10a33

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10a34

Rivet Ornit 6,5 X 18.5

293150268

$1.94

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Scandi Blue, RH Rear Footrest Reinforcement

518336977

Unavailable

865

Scandi Blue, LH Rear Footrest Reinforcement

518336975

Unavailable

870

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Socket Head Screw M6 X 16

250001367

$7.92

885

Hex. Flange Elastic Nut M6

233261466

$1.66

1300

Rear Short Bumper Ass'y 154 | Includes 1300 to 1300b

518335951

$169.99

1300b

Insert

293450275

$9.89

1350

Trim Cap

518335954

$8.45

1360

Rivet Ornit 4.8 X 14

293150289

$0.91

3040

Dart

293730079

$1.92

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11
