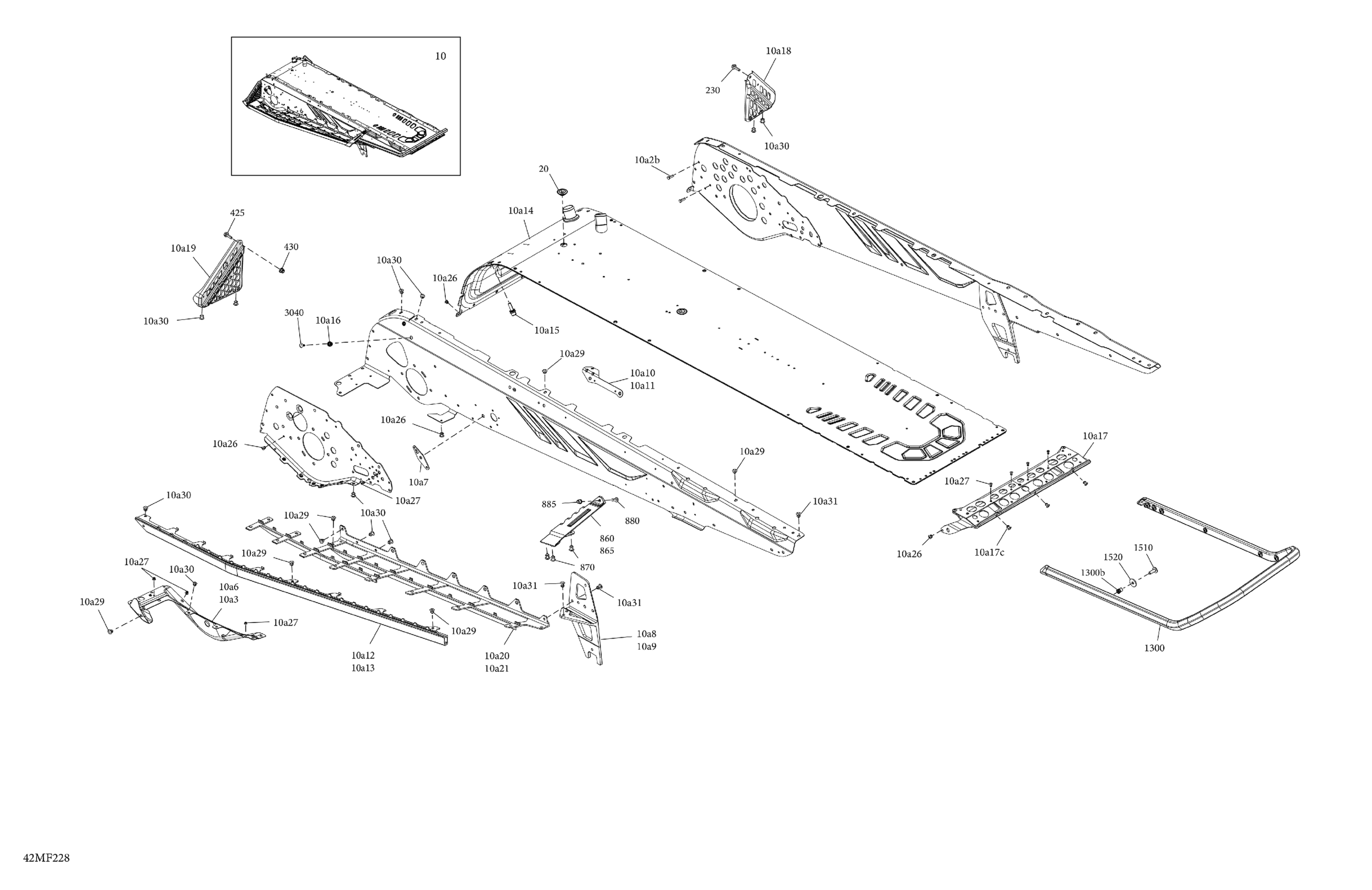

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC - VBTA - Scandi Blue - 15X146X2.5P Track, 2026 Frame - System - Rear Section Diagram

Scandi Blue, Chassis Tunnel Moduel 146 Short

415131048

Unavailable

Clinch Stud M6 X 20

250300027

$1.87

RH Footrest Reinforcement

518332455

$79.07

LH Footrest Reinforcement

518332456

$79.07

Front Suspension Arm Reinforcement

518335959

$3.73

LH Rear Suspension Support

518335956

$91.76

RH Rear Suspension Support

518335957

$41.01

LH Member Fixation Plate

518330299

$15.64

RH Under Chassis Reinforcement

518331745

$16.39

RH Formed Boarding Step

518332833

$179.07

LH Formed Boarding Step

518332834

$179.07

Radiator Tunnel 137

518336157

$682.06

Protruding Stud M8 x 22

250300652

$4.15

Clinch Nut M6 Hexsert

605636003

$4.00

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$57.43

Rivet Avibulb 3/16

293150203

$0.28

RH Footrest

518332462

$41.01

LH Footrest

518332463

$41.01

LH Rear Perforated Footstep

518335287

$105.94

RH Rear Perforated Footstep

518335288

$105.94

Rivet Ornit 4,8 X 11,3

293150312

$0.28

Rivet Ornit 4,8 X 8,8

293150313

$0.28

Rivet Ornit 6,5 X 12.5

293150265

$1.88

Ornit Rivet 6,5 X 14.5

293150266

$1.88

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

Hex. Flange Screw M6 X 20

207562056

$2.00

Hex. Flange Screw M6 X 20

207562056

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Scandi Blue, RH Rear Footrest Reinforcement

518336977

Unavailable

Scandi Blue, LH Rear Footrest Reinforcement

518336975

Unavailable

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Socket Head Screw M6 X 16

250001367

$7.69

Hex. Flange Elastic Nut M6

233261466

$1.91

Rear Short Bumper 146 | Includes 1300 to 1300b

518336436

$134.99

Insert

293450275

$11.36

Dart

293730079

$1.87

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Flat Washer

224061201

$1.27
