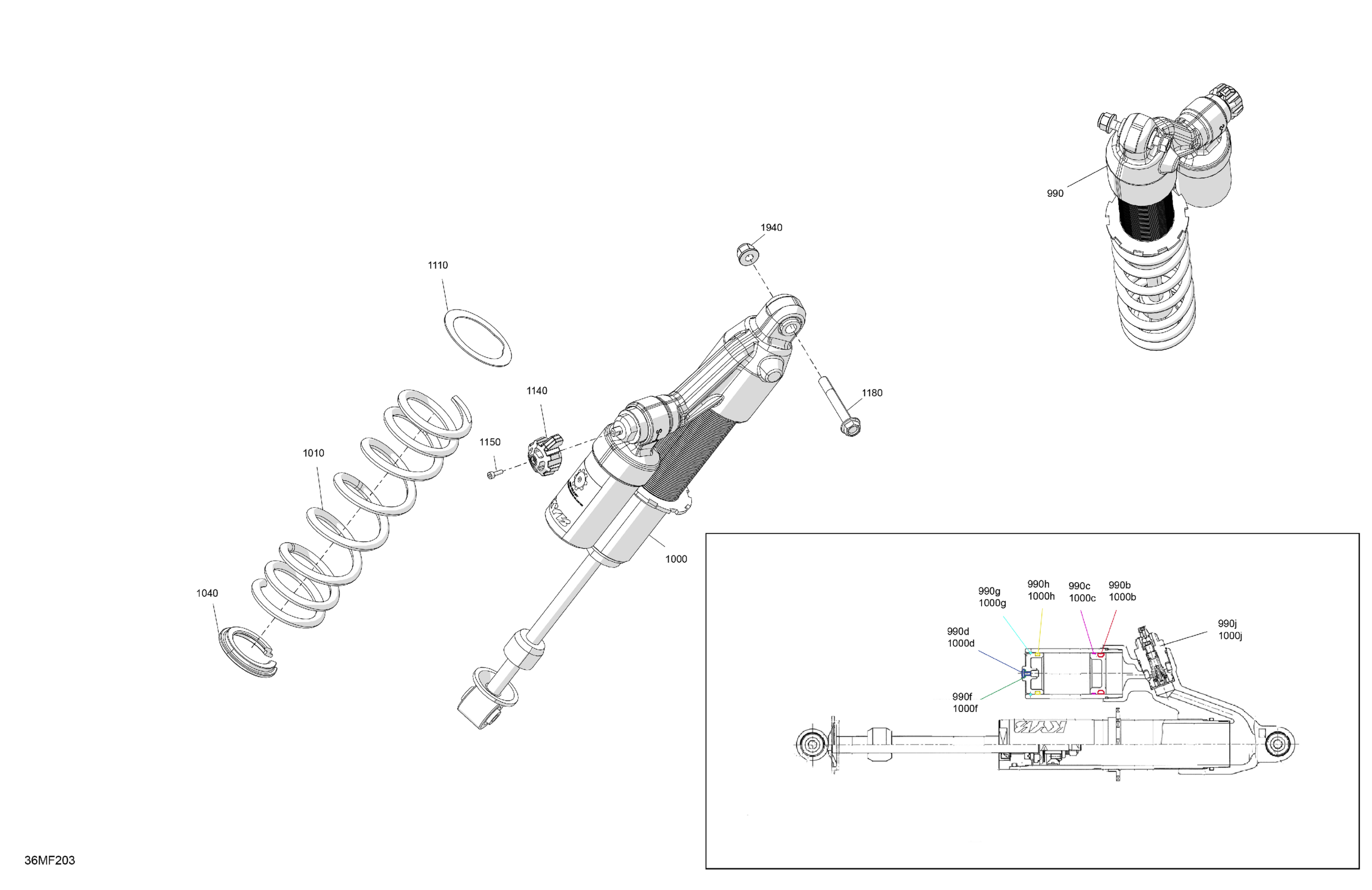

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC - VBTA - Scandi Blue - 15X146X2.5P Track, 2026 Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber KYB PRO 40-3C | Includes 990 to 990j

505075558

$812.99

990b

O-Ring

415093807

$34.58

990c

Piston Ring | Not Shown

415093806

$14.97

990d

Screw | Not Shown

505070399

$4.00

990f

O-Ring

505070400

$4.38

990g

Circlip - Call your local BRP dealership

715900076

$4.03

990h

O-Ring

415093804

$4.38

990j

Valve

503195958

$93.05

1000

LH Front Shock Absorber PRO 40-3C | Includes 1000 to 1000j

505075559

$812.99

1000b

O-Ring

415093807

$34.58

1000c

Piston Ring | Not Shown

415093806

$14.97

1000d

Screw | Not Shown

505070399

$4.00

1000f

O-Ring

505070400

$4.38

1000g

Circlip - Call your local BRP dealership

715900076

$4.03

1000h

O-Ring

415093804

$4.38

1000j

Valve

503195958

$93.05

1010

Deep Black, Spring

505072760

$51.51

1040

Spring Stopper

503194270

$16.89

1110

Washer

505073150

$0.98

1140

Adjustment Button

503196209

$2.57

1150

Allen Screw M3 X 0.5 X 10

250000644

$1.74

1180

Hex. Flange Screw M8 X 58

250000824

$1.74

1940

Elastic Flange Nut M8

233281466

$0.83
