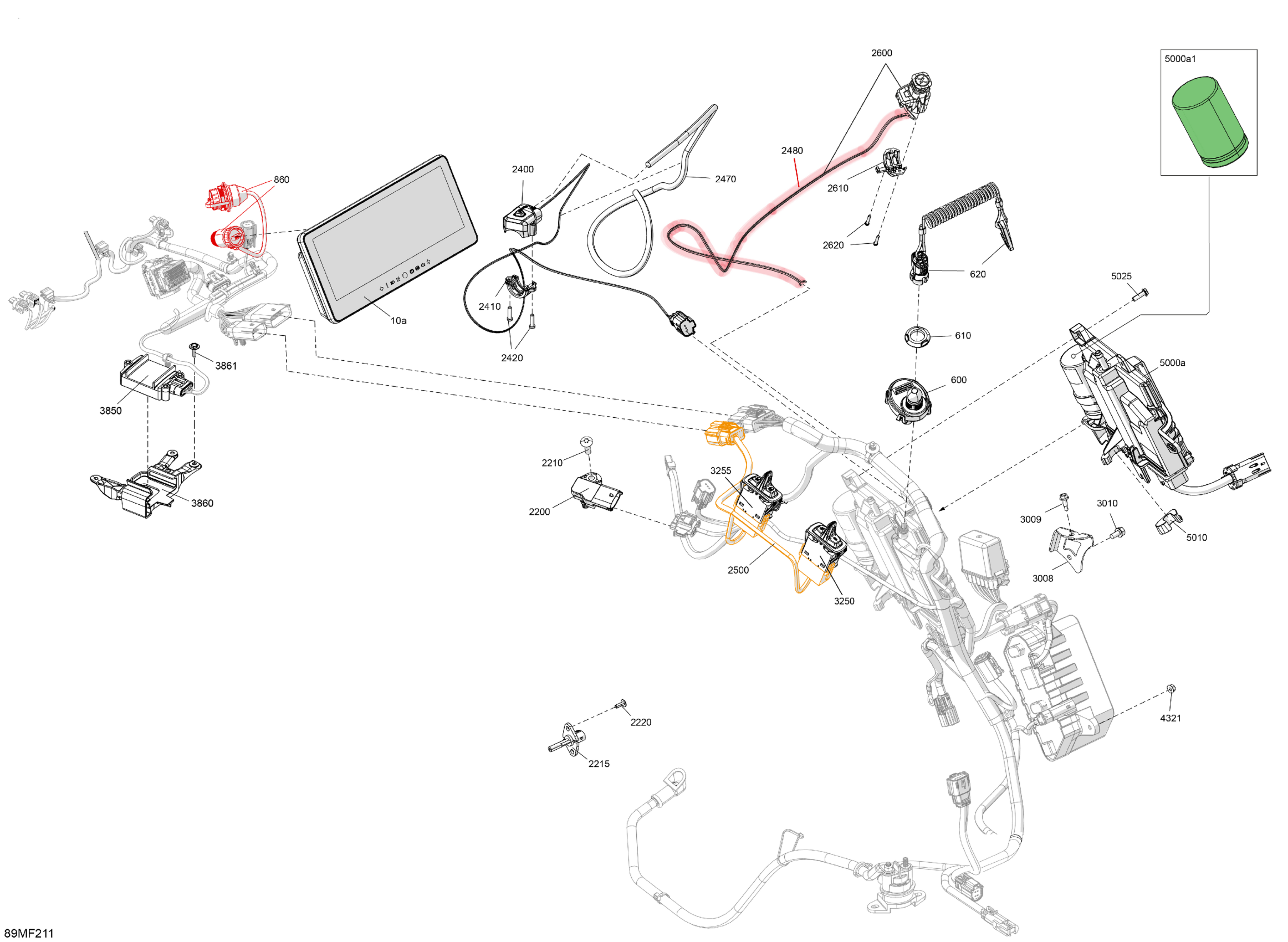

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC Turbo R - VKTD - Scandi Blue - 15X146X2.5P Track, 2026 Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge 10

710010374

$2,074.58

Calibration Wiring Harness | Not Shown

515179997

$5.29

600

Terminal DESS CAN | CARB Vehicle

710008832

$60.42

610

Specialized Nut

278004274

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

860

USB Wiring Harness Ass'y

515179248

$74.58

2200

Pressure Sensor And Air Temperature

515178563

$134.52

2210

Torx-Truss Pt K40 X 16

250000759

$1.74

2215

Air Temperature Sensor

515176366

$18.43

2220

Torx Truss Screw K40 X 12

250000577

$1.74

2400

Ignition Switch

515179056

$68.43

2410

Clamp

515177952

$8.57

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2500

Console Wiring Harness

515179085

$72.28

2600

Emergency Stop Switch

515179472

$76.89

2610

Clamp

515179182

$8.60

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.20

3008

Fuse Box Support

515179281

$31.51

3009

Hex. Flange Screw M5 X 16

250000911

$0.70

3010

Hex. Flange Screw M6 X 16

250001062

$1.43

3250

Switch Rocker Hand Warmer

515178462

$19.20

3255

Switch Rocker Headlignt

515178463

$19.20

3850

GPS

278004506

$85.77

3860

Module Support

515179316

$13.45

3861

Screw M4 X 16

250000725

$2.87

4321

Hex. Flange Nut M5

233151414

$0.46

5000a

ECM Module | Includes 5000a to 5000a1

515179355

$599.97

5000a1

Capacitor

515177272

$85.35

5010

Rubber Stopper

515178430

$2.09

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.66
