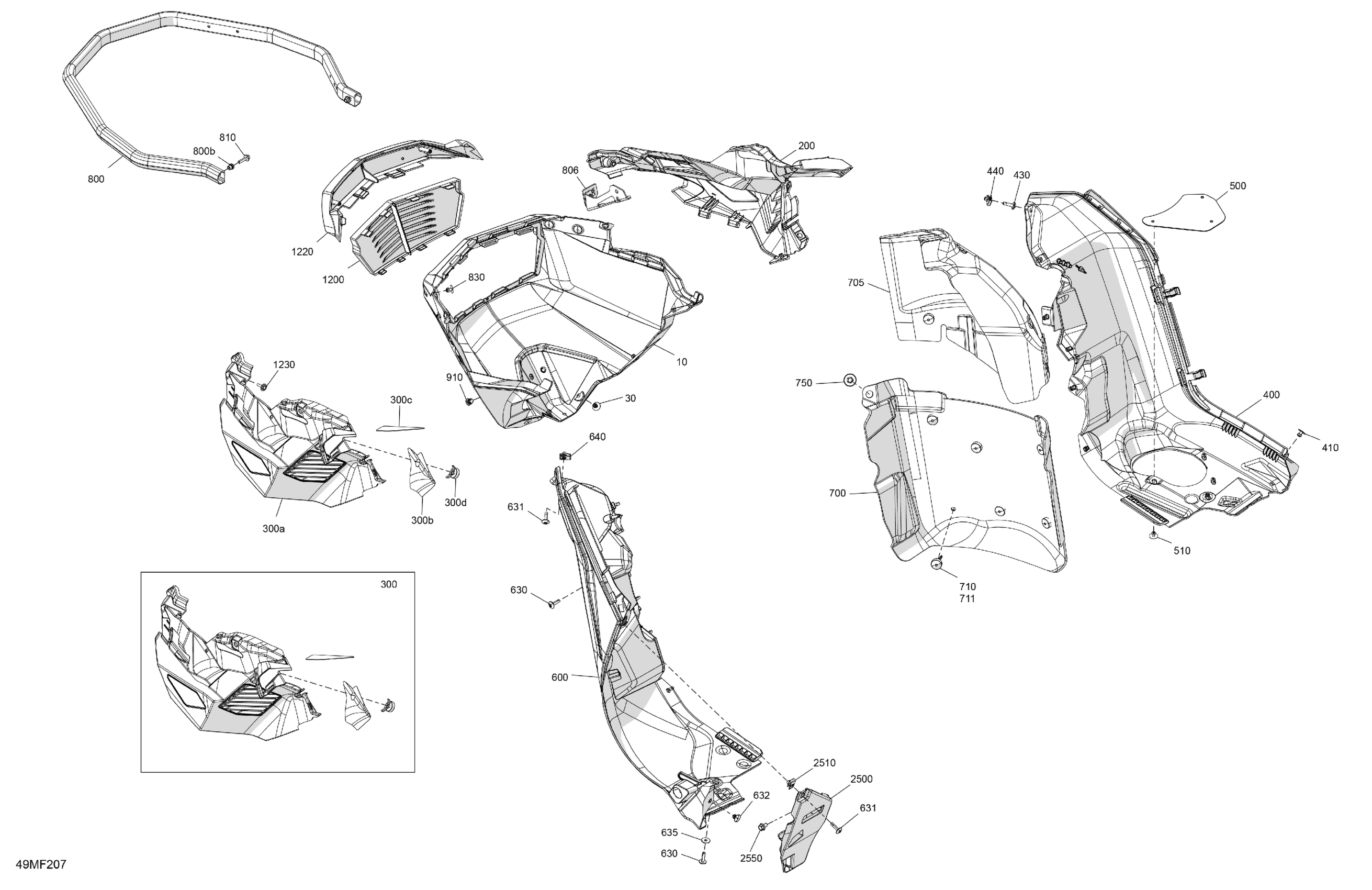

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC Turbo R - VKTD - Scandi Blue - 15X146X2.5P Track, 2026 Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502008645

$182.28

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

200

Deep Black, RH Bottom Pan Cap

502008262

$65.35

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008530

$56.89

300a

Deep Black, LH Bottom Pan Cap

502008263

$65.35

300b

LH Front Heat Shield

502008487

$4.54

300c

LH Front Heat Shield

502008575

$4.15

300d

Stopper

502008610

$1.94

400

Deep Black, RH Bottom Pan

502008759

$113.82

410

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

500

Plate

502008690

$6.26

510

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

600

Deep Black, LH Bottom Pan

502008236

$111.51

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

632

Black, Pop Rivet 3/16 X ,425

293150291

$0.54

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

700

Acoustic Panel

502008754

$46.12

705

Acoustic Panel

502008241

$46.12

710

Stopper

502008752

$1.94

711

Stopper

502008752

$1.94

750

Push Nut

508000853

$1.92

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$113.82

800b

Insert M5 X 0.8

293450268

$1.95

806

Horn Bracket

502008424

$17.66

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

910

Panel Fastener

518321954

$6.03

1200

Lower Prefilter Grille

502008245

$27.66

1220

Upper Grille Prefilter

502008737

$27.66

1230

Screw M4 X 16

250000725

$2.87

2500

LH Lower Bottom Pan Support

502008357

$18.43

2510

Panel Nut M5 X 0.8

250000958

$3.48

2550

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89
