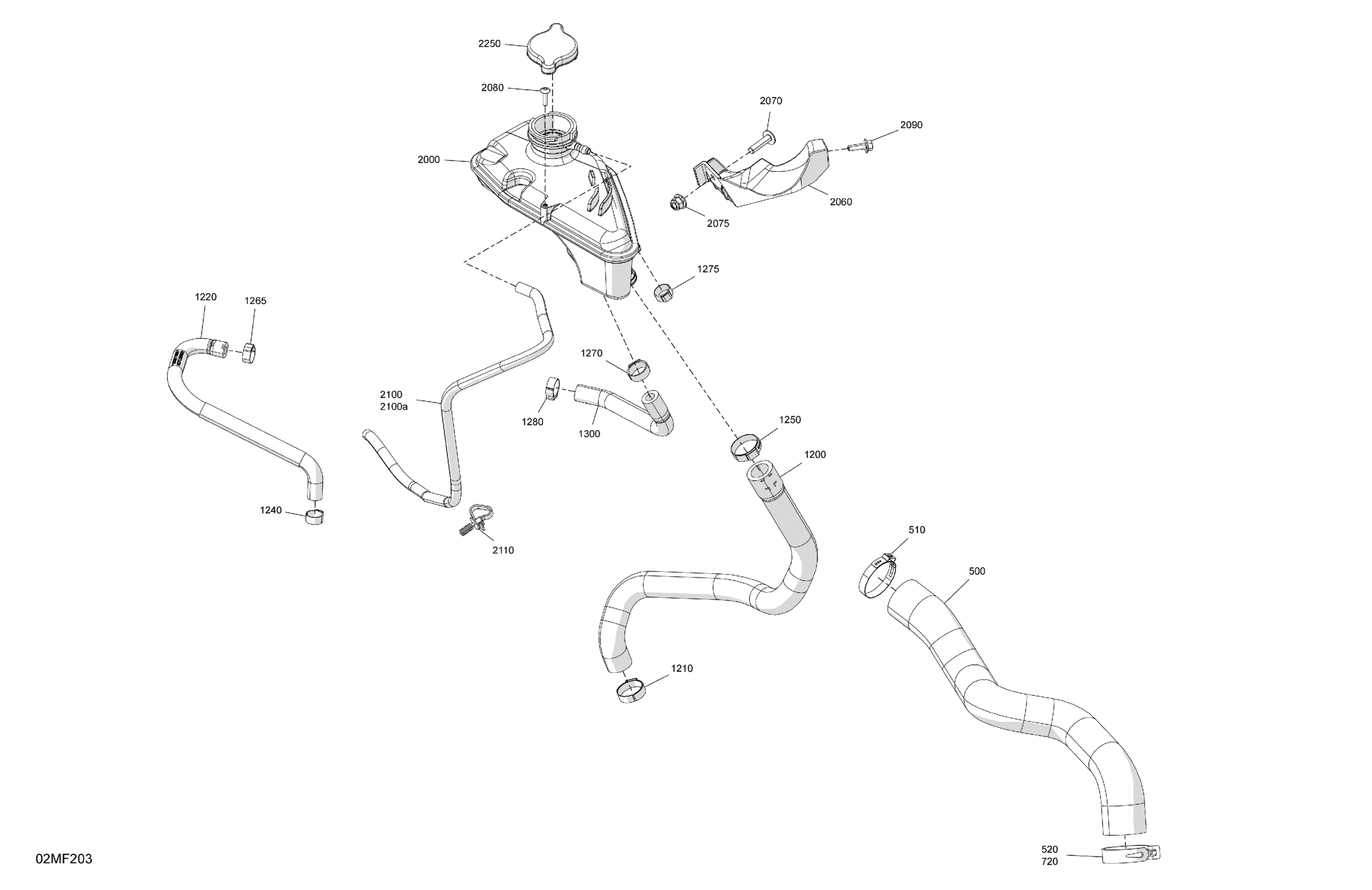

Ski-Doo Europe - FREERIDE - STD - 850 E-TEC Turbo R - VKTD - Scandi Blue - 15X146X2.5P Track, 2026 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose

509001414

$23.85

510

Oetiker Clamp

293650326

$7.87

520

Aba Gear Clamp, 26-38 MM

509000443

$5.64

720

Aba Gear Clamp, 26-38 MM

509000443

$5.64

1200

Cooling Hose

509001430

$22.36

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Hose

509001408

$22.36

1240

Oetiker Clamp

293650046

$2.67

1250

Oetiker Clamp

509001041

$1.87

1265

Oetiker Clamp

293650046

$2.67

1270

Oetiker Clamp | Europe

293650030

$4.96

1275

Oetiker Clamp

293650046

$2.67

1280

Crimp Clamp, 15.3-706R

293650047

$3.03

1300

Cooling Hose

509001409

$22.36

2000

Coolant Tank

509001314

$72.36

2060

Coolant Tank Support

509001318

Unavailable

2070

Torx Screw M6 X 25

250000758

$2.00

2075

Hex. Flange Elastic Nut M6

233261466

$1.91

2080

Torx-Truss Pt K40 X 16

250000759

$2.00

2090

Hex. Flange Screw M5 X 16

207651646

$2.00

2100

Hose Ass'y | Includes 2100 to 2100b

509001476

$43.25

2100a

Hose 6 Mm 15000Mm Long

219704360

$120.12

2100b

Heat Shield

515179201

$3.13

2110

Anchorage Tie Wrap Christmas Tree

293750099

$1.91

2250

Radiator Pressure Cap

509000180

$13.42
