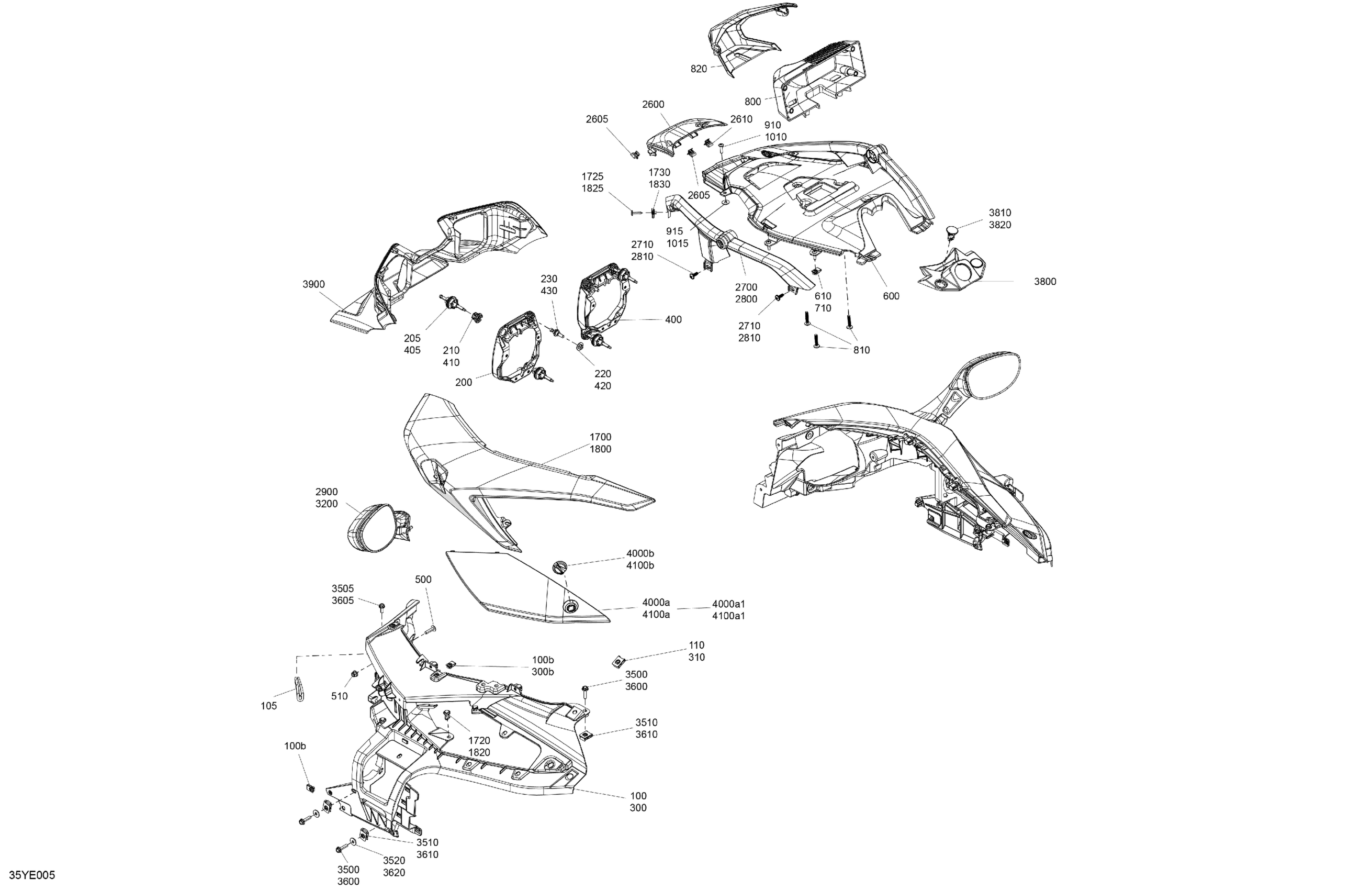

Can-Am Europe - F3 SPORT - E6SB - Monolith Black, 2025 Body - Console Diagram

#

Description
Price

100

LH Console Support Ass'y | Includes 100 to 100b

708400968

$100.00

100b

Panel Nut M5 X 0.8

250000958

Unavailable

105

Trim 1000Mm Long

219704354

Unavailable

110

Panel Nut M6 X 1.0

250100208

Unavailable

200

LH Front Headlight Support

708400748

$6.00

205

Adjuster

708400954

$13.00

210

Retaining Ring

708400955

$8.00

220

Large Shoulder Nut M6

705014119

$6.00

230

Ball Stud

705018616

$19.00

300

RH Console Support Ass'y | Includes 300 to 300b

708400969

$110.00

300b

Panel Nut M5 X 0.8

250000958

Unavailable

310

Panel Nut M6 X 1.0

250100208

Unavailable

400

RH Front Headlight Support

708400749

$6.00

405

Adjuster

708400954

$13.00

410

Retaining Ring

708400955

$8.00

420

Large Shoulder Nut M6

705014119

$6.00

430

Ball Stud

705018616

$19.00

500

Torx Screw M6 X 25

250000758

Unavailable

510

Hex. Flange Elastic Nut M6

233261494

Unavailable

600

Upper Fairing

708400974

$34.00

610

Panel Nut M5 X 0.8

250000958

Unavailable

710

Panel Nut M5 X 0.8

250000958

Unavailable

800

Gauge Support

708400755

$21.00

810

Screw PT K60 X 30

250000949

$1.74

820

Support Trim

708400758

$44.00

910

Torx Screw M5 X 20

250000724

Unavailable

915

Stainless Steel Flat Washer M5

234052670

Unavailable

1010

Torx Screw M5 X 20

250000724

Unavailable

1015

Stainless Steel Flat Washer M5

234052670

Unavailable

1700

Deep Black, LH Console Fairing

708400958

$225.00

1720

Tuflok Plastic Rivet

293150230

Unavailable

1725

Torx Screw M5 X 20

250000724

Unavailable

1730

Panel Nut M5 X 0.8

250000958

Unavailable

1800

Deep Black, RH Console Fairing

708400959

$225.00

1820

Tuflok Plastic Rivet

293150230

Unavailable

1825

Torx Screw M5 X 20

250000724

Unavailable

1830

Panel Nut M5 X 0.8

250000958

Unavailable

2600

Deep Black, Front Fairing

708400826

$230.00

2605

Edge Clip

517302785

Unavailable

2610

Edge Clip

517302785

Unavailable

2700

LH Cross Member

708400741

$29.00

2710

Oval Head Torx Screw K60 X 16

250000546

Unavailable

2800

RH Cross Member

708400742

$29.00

2810

Oval Head Torx Screw K60 X 16

250000546

Unavailable

2900

LH Rear View Mirror Housing Ass'y

705018650

$275.00

3200

RH Rear View Mirror Housing Ass'y

705018651

$275.00

3500

Hex. Flange Screw M6 X 25

250000793

Unavailable

3505

Hex. Flange Screw M6 X 16

210261650

Unavailable

3510

Panel Nut M6 X 1.0

250100208

Unavailable

3520

Flat washer M6

250200164

Unavailable

3600

Hex. Flange Screw M6 X 25

250000793

Unavailable

3605

Hex. Flange Screw M6 X 16

210261650

Unavailable

3610

Panel Nut M6 X 1.0

250100208

Unavailable

3620

Flat washer M6

250200164

Unavailable

3800

Switch Bezel

708400205

$15.00

3810

Switch Plug

708400866

$4.00

3820

Switch Plug

708400866

$4.00

3900

Front Access Cover

705017970

$34.00

4000a

Deep Black, LH Front Access Cover | Includes 4000a to 4000a1a

708400948

$235.00

4000a1

Bare, LH Acces Panel

708400261

$110.00

4000b

Cover Latch Quarter Turn

708400065

Unavailable

4100a

Deep Black, RH Front Access Cover | Includes 4100a to 4100a1

708400949

$235.00

4100a1

Bare, RH Acces Panel

708400262

$110.00

4100b

Cover Latch Quarter Turn

708400065

Unavailable
