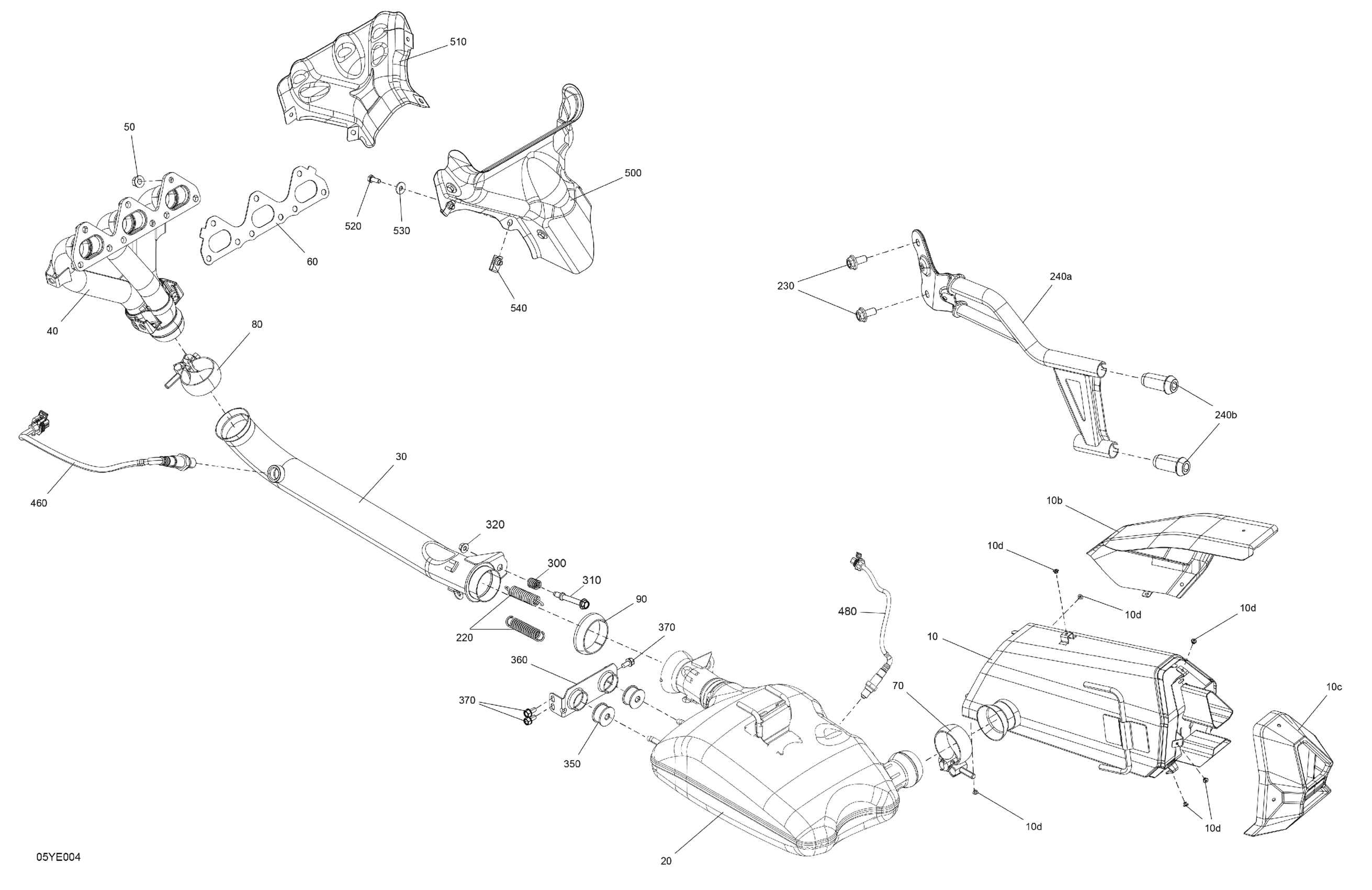

Can-Am Europe - F3 SPORT - E6SB - Monolith Black, 2025 Engine - Exhaust Diagram

#

Description
Price

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

707602475

$954.00

10b

Carbon Black, Heat Shield | Includes 10b to 10b2

707601560

$82.00

10c

Carbon Black Muffler End Cap | Includes 10c to 10c2

707601561

$82.00

10d

Rivet-Pop 5/32

293150219

$1.00

20

Primary Exhaust Muffler

707603431

$1,197.00

30

Exhaust Pipe Out

707603478

$339.00

40

Exhaust Manifold

707603565

$770.00

50

Hex. Flange Nut M8

233081416

Unavailable

60

Exhaust Seal

707601985

$8.00

70

Exhaust Clamp

707600980

Unavailable

80

Exhaust Clamp

707600980

Unavailable

90

Exhaust Gasket

514054174

Unavailable

220

Spring

415107100

Unavailable

230

Hex Flange Screw M10 X 20

207502044

$4.28

240a

Exhaust Support

707603935

$68.00

240b

Rubber Bushing

293830167

$15.00

300

Spring

707600682

Unavailable

310

Hex. Flan. Screw Dogp. M10 X 80

250001312

$12.00

320

Hex. Flange Nut M10

233101414

Unavailable

350

Anti-Vibration Rubber

707600702

Unavailable

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

370

Hex. Flange Screw M6 X 12

210261250

Unavailable

460

Oxygen Sensor

707600872

Unavailable

480

Oxygen Sensor

707600872

Unavailable

500

Heat Shield interior

707603641

$54.00

510

Heat Shield Exterior

707603642

$54.00

520

Hex. Screw M6 X 16, Scotch Grip

207361660

Unavailable

530

Flat Washer M6, Stainless

234062600

Unavailable

540

Panel Nut M6 X 1.0

250100198

Unavailable
