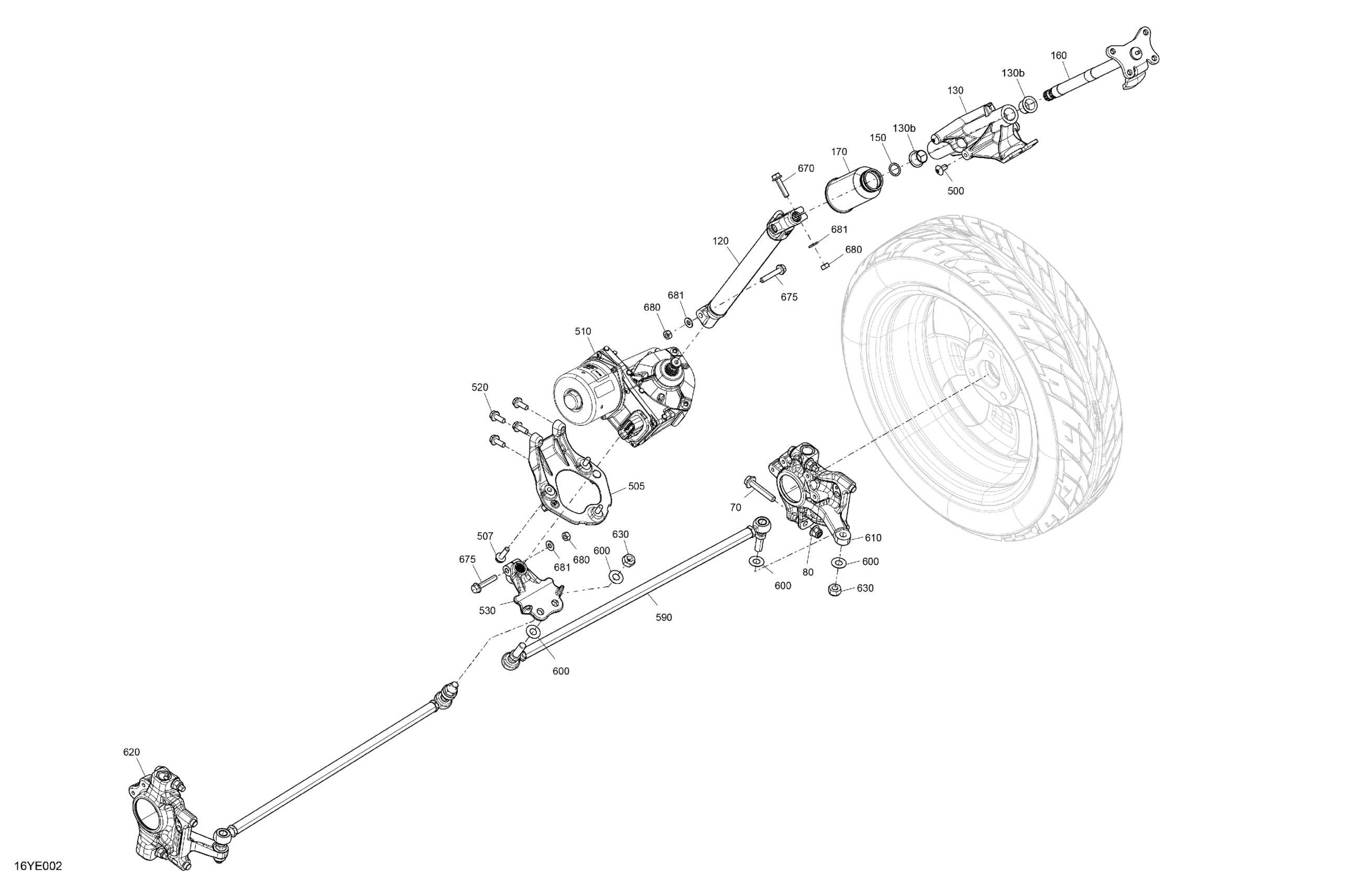

Can-Am Europe - F3 LIMITED - Dark Edition - H8SF - Mineral Blue, 2025 Mechanic - Steering Column Diagram

Description

Price

Hex. Flange Screw M10 X 55

207605554

$7.62

Flange Elastic Nut M10

233201466

$3.29

120

Steering Column

709402421

$154.99

130

Support Ass'y | Included 130 to 130b

709401340

$109.99

130b

Steering Bushing

709402725

$3.28

150

O-Ring

709000089

$15.99

160

Upper Steering Column

709401397

$159.99

170

Bellows

709400790

$13.49

500

Torx Screw M8 X 16

250000751

$6.29

505

DPS Support

709401771

$43.99

507

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

510

Power Steering Ass'y

709402871

$1,829.99

520

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

530

Pitman Arm

709401760

$37.99

590

Tie Rod Ass'y

709403156

$158.99

600

Hardened Washer

706200281

$2.89

610

RH Knuckle Assembly

709402236

$190.49

620

LH Knuckle Assembly

709402233

$195.99

630

Hex. Elastic Hex. Nut M12

250100089

$1.49

670

Hex. Flange Screw M8 X 35

250001021

$4.49

675

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.79

680

Hex. Nut M8

232081417

$3.09

681

Washer

503189157

$3.39
