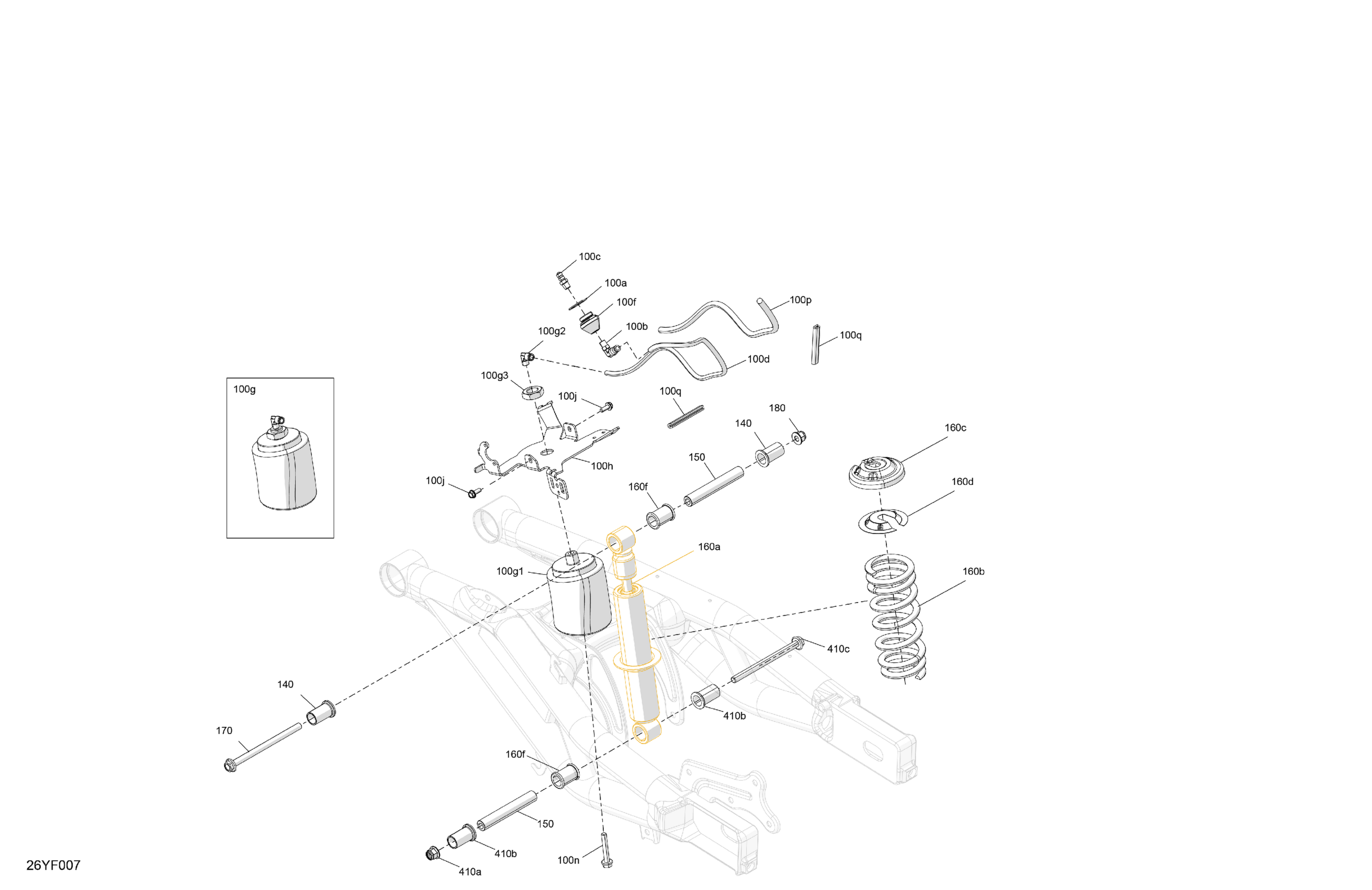

Can-Am Europe - CANYON - STD - J1TB - Sterling Silver Satin, 2026 Suspension - Rear Shock Diagram

Description

Price

100a

Circlip

293370123

$3.00

100b

Elbow 90°

706000928

$26.12

100c

Air Valve

706002797

$15.22

100d

Hose 4.32Mm 3000Mm Long

219704415

$44.17

100f

Pneumatic Connector

706004028

$19.00

100g

Air Damper Kit

219800175

$291.00

100g1

Not Available As Spare Parts

XXX

Unavailable

100g2

Elbow 90°

706001018

$29.00

100g3

Jam Nut M20

250100119

$4.00

100h

Shock Absorber Anchorage

706005195

$26.00

100j

Hex. Flange Screw M6 X 16

210261650

$1.22

100n

Hex. Flange Screw M8 X 50

207685044

$1.39

100p

Tubing 6 Mm 3000Mm Long

219704425

$13.14

100q

Trim - 70 mm

219704620

Unavailable

140

Spacer

706000410

$14.00

150

Shock Absorber Shaft

706000409

$50.00

160a

Shock Absorber

706005089

$137.00

160b

Compression Spring

706005088

$90.00

160c

Spring Stopper

503193781

$18.00

160d

Cap

503193782

$10.00

160f

Urethane Cushion

503191609

$18.00

170

Hex.Flange Screw M10 X 150

230605034

$7.00

180

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

410a

Hex. Flange Elastic Nut M10

233201434

$1.63

410b

Spacer

706000410

$14.00

410c

Hex. Flange Screw M10 X 140

230604034

$7.00
