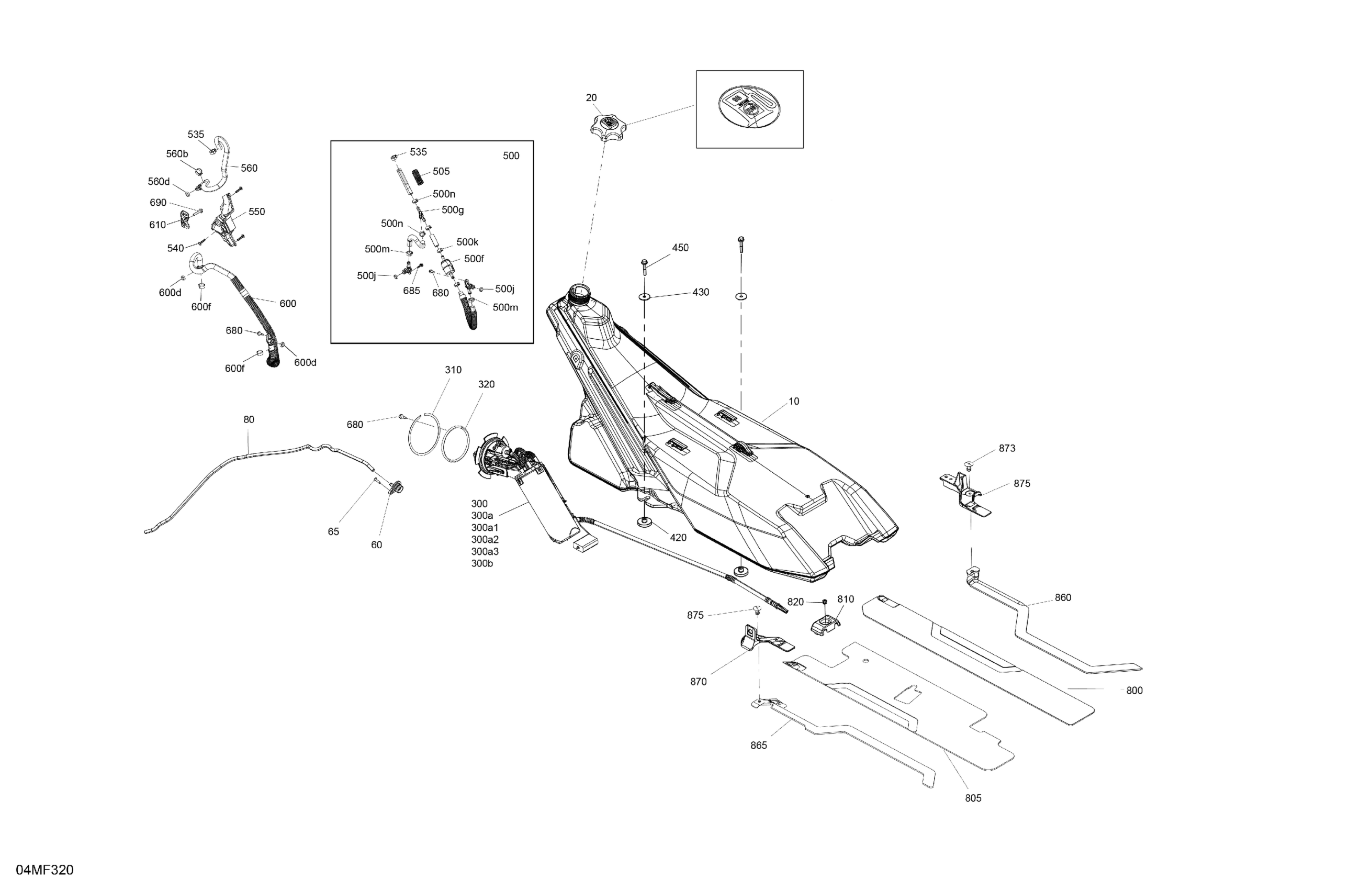

Ski-Doo Europe - BACKCOUNTRY - X-RS - 850 E-TEC - UYTM - Deep Black - 16X146X2.0P Track, 2026 Engine - Fuel Diagram

#

Description

Price

10

Fuel Tank

513034245

Unavailable

20

Fuel Tank Cap

513034170

Unavailable

60

Check Valve

513033849

Unavailable

65

Truss Torx Screw K40 X 16

250000918

Unavailable

80

Polyurethane Hose 10000Mm Long

219704410

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300b

861805526

Unavailable

300a

Fuel Pump Ass'y | Includes 300a to 300a3

513034236

Unavailable

300a1

Canister

415130507

Unavailable

300a2

Filter

415130508

Unavailable

300a3

Fuel Level Sensor

415130726

Unavailable

300b

Harness

515178468

Unavailable

310

Circlip

513034097

Unavailable

320

O-Ring

513033862

Unavailable

420

Bushing

513034085

Unavailable

430

Washer | Not Shown

503193995

Unavailable

450

Hex. Flange Screw M6 X 35

250001255

Unavailable

500

Hose Ass'y | Includes 500 to 500n

513034255

Unavailable

500f

Fuel Filter

513034047

Unavailable

500g

Y Fitting

513034150

Unavailable

500j

O-Ring

513033668

Unavailable

500k

Crimp Clamp, 15.3-706R

293650047

Unavailable

500m

Crimp Clamp

293650053

Unavailable

500n

Oetiker Clamp

293650125

Unavailable

505

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

535

Crimp Clamp, 15.3-706R

293650047

Unavailable

540

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

550

Hose Guide

513034204

Unavailable

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

Unavailable

560b

Crimp Clamp

293650053

Unavailable

560d

O-Ring

513033668

Unavailable

600

Hose Ass'y | Includes 600 to 600f

513034250

Unavailable

600d

O-Ring

513033668

Unavailable

600f

Crimp Clamp

293650053

Unavailable

610

Molded Hose Support

513034194

Unavailable

680

Hex. Flange Screw M5 X 16

250000911

Unavailable

685

Hex. Flange Screw M5 X 16

250000911

Unavailable

690

Hex.Flange Screw M5 X 28 S.Grip

207552844

Unavailable

800

Insulated Foam

513033913

Unavailable

805

LH Foam

513034165

Unavailable

810

Guide

513034155

Unavailable

820

Pop Rivet 3/16 X ,425

293150293

Unavailable

860

Foam

513033915

Unavailable

865

Foam

513033916

Unavailable

870

LH Trim

513034242

Unavailable

873

RH Trim

513034243

Unavailable

875

Black, Pop Rivet 3/16 X ,550

293150292

Unavailable
