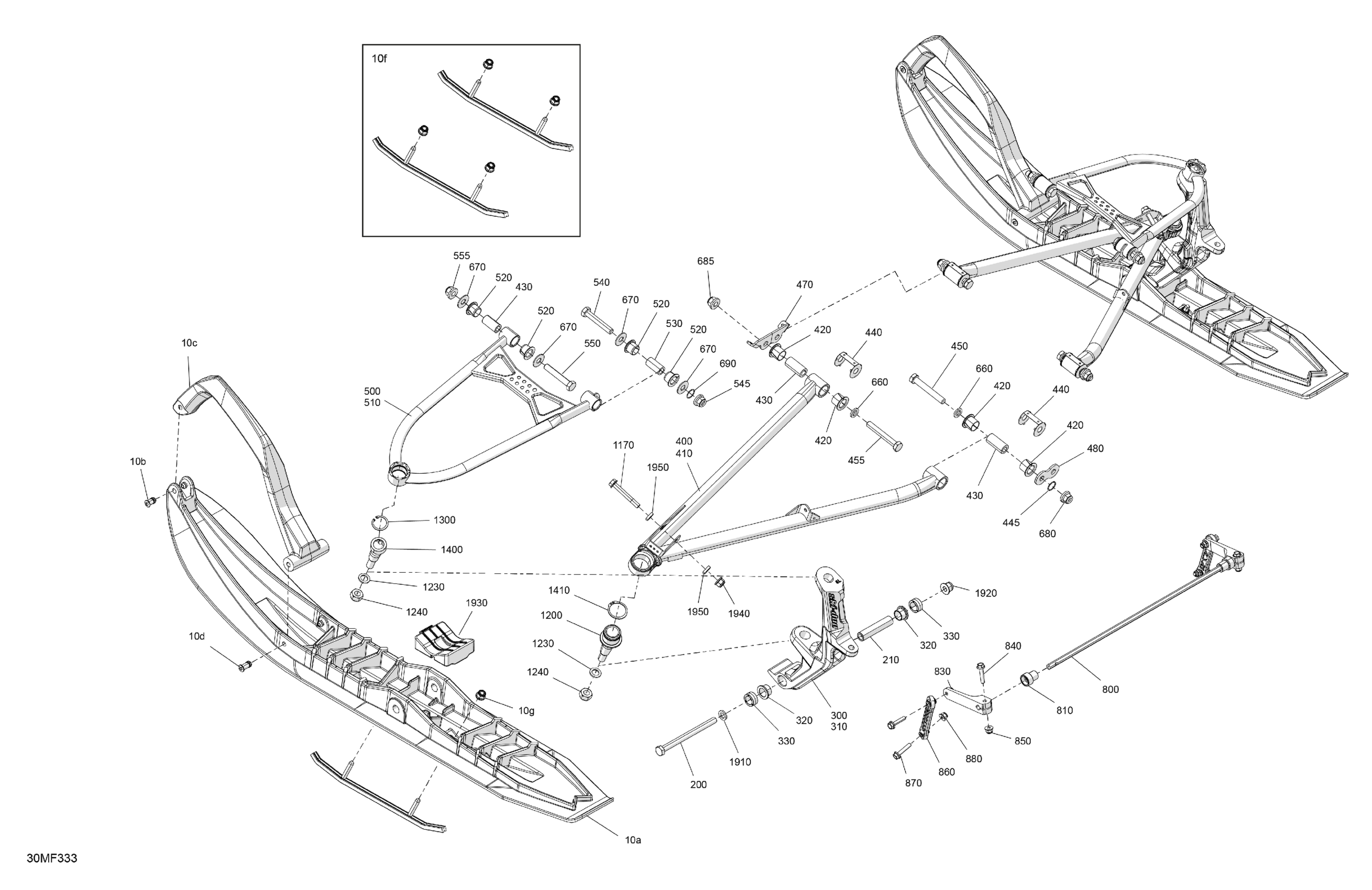

Ski-Doo Europe - BACKCOUNTRY - Adrenaline - 600R E -TEC - UJTB - Deep Black - 16X146X2.0P Track, 2026 Suspension - Front Diagram

Description

Price

10a

Black, Ski

505073227

$175.35

10b

Rivet Ski Handle Short

505075902

$4.43

10c

Black, Handle

505072976

$35.35

10d

Rivet Ski Handle Long

505075906

$5.03

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

Unavailable

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.58

300

Deep Black, LH Ski Leg +6

505075101

$264.58

310

Deep Black, RH Ski Leg +6

505075102

$264.58

320

Leg Bushing

505072690

Unavailable

330

Spacer

505074949

$2.03

400

LH Lower Arm 39

505075152

$193.82

410

RH Lower Arm 39

505075153

$193.82

420

Bushing

505072208

$3.14

430

Bushing

505075323

$3.82

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.85

480

Plate

505073844

$2.75

500

LH Upper Suspension Arm 39 T

505075103

$143.05

510

RH Upper Suspension Arm 39 T

505075104

$143.05

520

Bushing

505072250

$3.14

530

Bushing

505075322

$3.82

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Black, Stabilizer Bar

505075686

$67.99

810

Bushing

505072064

$2.22

830

Stabilisator Lever

505073731

$15.35

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Sway Bar Double Joint Link

505072204

$19.20

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$51.51

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

1910

Washer

503192496

$0.75

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505072594

$17.66

1940

Elastic Flange Nut M8

233281466

$0.83

1950

Spacer

505073892

$2.17
