- Europe - BACKCOUNTRY - Adrenaline - 600R E -TEC - UJTB - Deep Black - 16X146X2.0P Track, 2026
Drive - Pulley

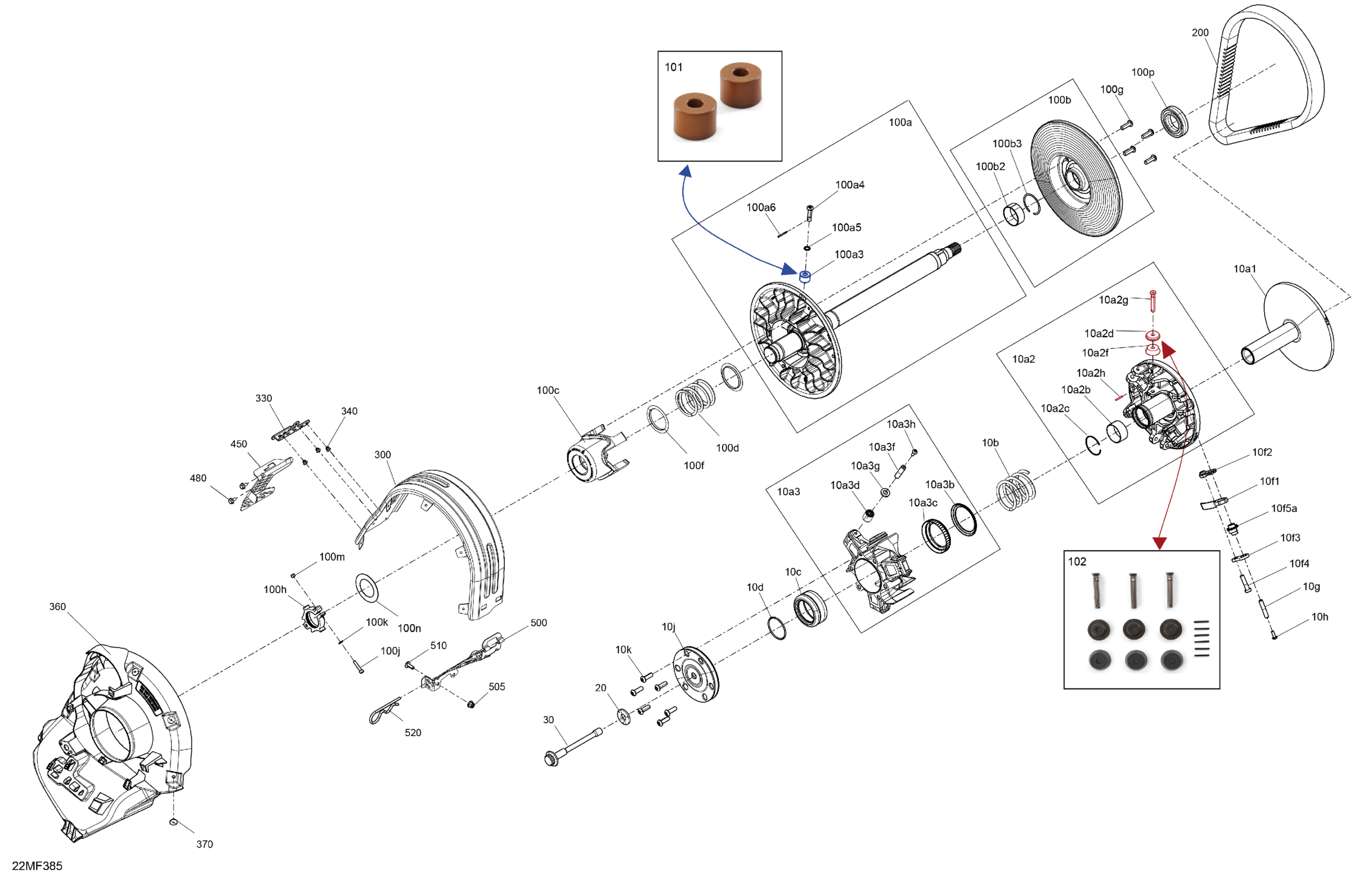

Ski-Doo Europe - BACKCOUNTRY - Adrenaline - 600R E -TEC - UJTB - Deep Black - 16X146X2.0P Track, 2026 Drive - Pulley Diagram
#
10a1
Fixed Flange Ass'y
417224333
Unavailable
10a2
Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h
417224811
Unavailable
10a2b
Bushing
293250389
Unavailable
10a2c
Circlip
293370137
Unavailable
10a2d
Back Torque Roller
417224153
Unavailable
10a2f
Torque Roller
417224154
Unavailable
10a2g
Pin
417224510
Unavailable
10a2h
Spring Pin 2.6MM X 20.5MM
250400101
Unavailable
10a3
Spider Drive Pulley | Includes 10a3 to 10a3h
417225067
Unavailable
10a3b
Stopper Spring
417224910
Unavailable
10a3c
Spring Guide
417224614
Unavailable
10a3d
Roller Pulley Ass'y
417224947
Unavailable
10a3f
Axle - 10mm
417224204
Unavailable
10a3g
Thrust Washer
417224868
Unavailable
10a3h
Torx-Truss M/S M5 X 14 S.Grip
250000763
Unavailable
10b
Clutch Spring
417224167
Unavailable
10c
Seat Spring
417224003
Unavailable
10d
Circlip
293370116
Unavailable
10f1
Ramp Pulley 901
417224626
Unavailable
10f2
RH Lever
417224086
Unavailable
10f3
LH Lever
417224114
Unavailable
10f4
Pivot 38mm
417224222
Unavailable
10f5a
Molded Cam
417224113
Unavailable
10g
Pin Ramp
417224694
Unavailable
10h
Torx-Truss M/S M5 X 14 S.Grip
250000763
Unavailable
10j
VIbration Damper
417224682
Unavailable
10k
Button Head Torx Screw M8 X 25 S.Gr
250000757
Unavailable
20
Conical Spring Washer M14
250200144
Unavailable
30
Drive Pulley Bolt
417300651
Unavailable
100a
Fixed Flange Ass'y | Includes 100a to 100a6
417127595
Unavailable
100a3
Pulley Roller
417127016
Unavailable
100a4
Pivot Stud
417127294
Unavailable
100a5
Lock Washer 8 mm
250200009
Unavailable
100a6
Spring Pin
250400070
Unavailable
100b
Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3
417127659
Unavailable
100b2
Bushing ID 41mm OD 45mm X 19mm L
417127318
Unavailable
100b3
Circlip
293370049
Unavailable
100c
Cam Ass'y
417127715
Unavailable
100d
Black, Return Spring
417127039
Unavailable
100f
Swivel Abutment
417127116
Unavailable
100g
Button Head Torx Screw M8 X 25 S.Gr
250000757
Unavailable
100h
Calibration Ass'y
415129604
Unavailable
100j
Socket Screw M5 X 25
250000981
Unavailable
100k
Flat Washer M5
234051410
Unavailable
100m
Elastic Stop Nut M5
232551414
Unavailable
100n
Washer
417127155
Unavailable
100p
Ball Bearing
504152574
Unavailable
101
QRS XD Roller Kit (2)
861805577
Unavailable
102
PDrive Torque Rollers Maintenance Kit
861805576
Unavailable
200
Drive Belt
417300551
Unavailable
300
Belt Guard
417300620
Unavailable
330
Front Retaining Hook
417300525
Unavailable
340
Avex Rivet
390909200
Unavailable
360
CVT Cooling Duct
417300609
Unavailable
370
Pop Rivet 3/16"
293150103
Unavailable
450
Front Guard Support
417300607
Unavailable
480
Flange Screw M6 X 10, Scotch Grip
207561044
Unavailable
500
Rear Guard Support
417300623
Unavailable
505
Hex. Flange Elastic Nut M6
233261466
Unavailable
510
Torx Screw M6 X 16
250000755
Unavailable
520
Hair Pin
114045200
Unavailable
