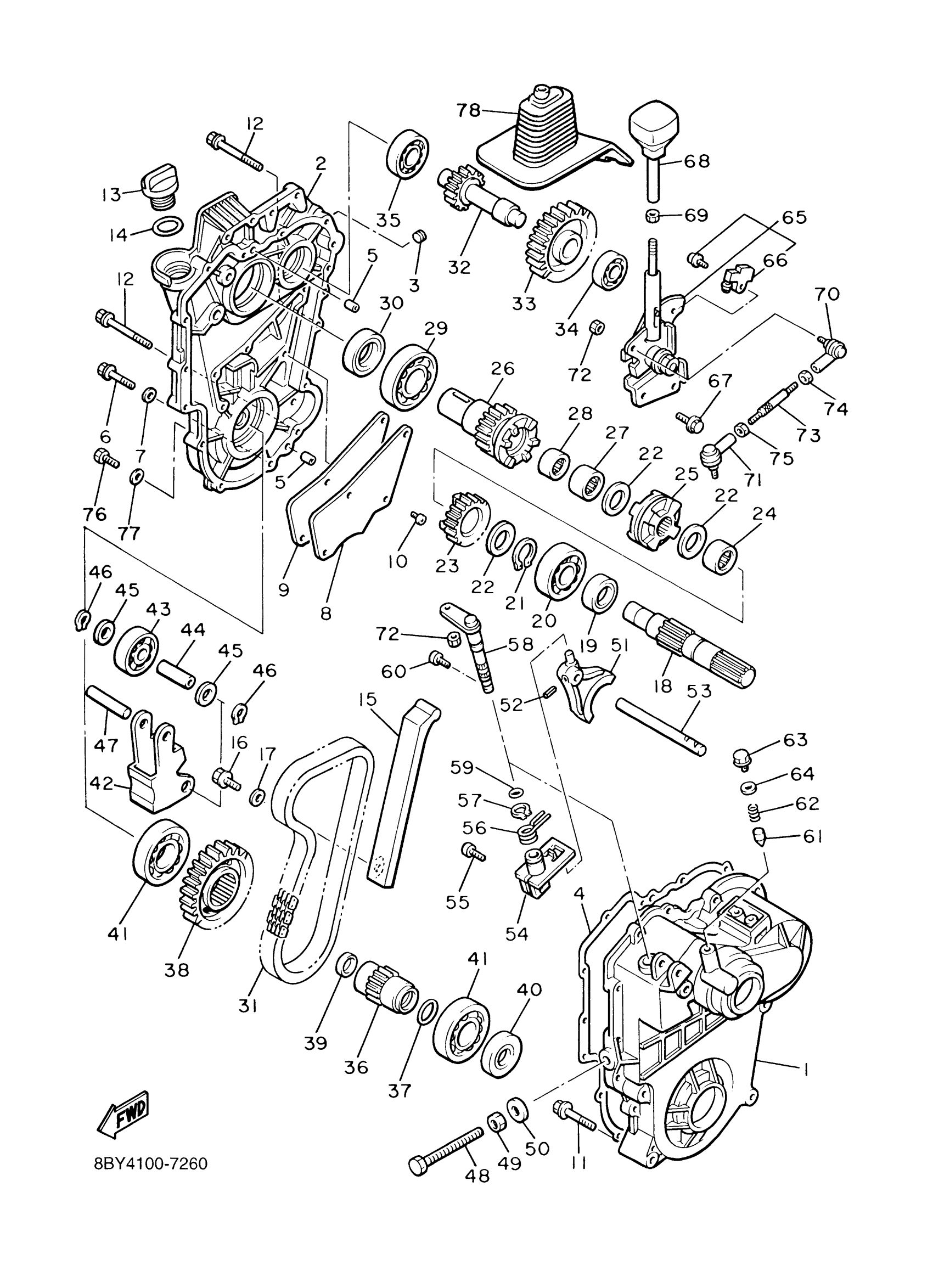

Find the part on the Track Drive 2 diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha ET410TRF 8BY8 Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

88T-47541-00-00

1
Out of stock

2

CAP, HOUSING

89X-47543-00-00

1
Out of stock

3

PLUG, TAPER(88T)

90336-08026-00

1
Out of stock

4

GASKET

88T-47592-01-00

1
Out of stock

5

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

6

BOLT, FLANGE

95817-06035-00

1
Out of stock

7

WASHER, SEAL (7G5)

90210-06006-00

1
Out of stock

8

PLATE

88T-47591-00-00

1
Out of stock

9

GASKET

88T-47544-00-00

1
Out of stock

10

SCREW, BINDING

98907-06008-00

1
Out of stock

11

BOLT, FLANGE

95817-08040-00

1
Out of stock

12

BOLT, FLANGE(JN5)

95817-08070-00

1
Out of stock

13

PLUG, OIL LEVEL

BAT-15362-00-00

1
Out of stock

14

O-RING(1KT)

93210-27778-00

1
Out of stock

15

GUIDE, STOPPER 1

88T-12231-00-00

1
Out of stock

16

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

17

WASHER(6TC)

92907-08200-00

—
Out of stock

18

AXLE, DRIVE

88T-17421-00-00

1
Out of stock

19

OIL SEAL (22X42X7)

93102-22014-00

—
Out of stock

20

BEARING(1LX)

93306-37204-00

—
Out of stock

21

CIRCLIP(1EY)

99009-22400-00

—
Out of stock

22

WASHER, PLATE(83R)

90201-224L4-00

—
Out of stock

23

GEAR, REVERSE PINION 1

88T-17143-00-00

1
Out of stock

24

BEARING, CYLINDRICAL(83R)

93311-42265-00

—
Out of stock

25

DOG, TRANSMISSION SHIFT

88T-17492-01-00

1
Out of stock

26

SPROCKET, CHAIN DRIVE

88T-17682-01-00

1
Out of stock

26

SPROCKET, CHAIN DRIVE

88T-17682-11-00

1
Out of stock

27

BEARING, CYLINDRICAL (23X)

93317-32231-00

—
Out of stock

28

BEARING, CYLINDRICAL (4X7)

93317-22021-00

—
Out of stock

29

BRG,R-B 6007 62MM 150G KY

93306-00702-00

—
Out of stock

30

OIL SEAL (705)

93102-35191-00

—
Out of stock

31

CHAIN

94880-03076-00

1
Out of stock

31

CHAIN

94880-03078-00

1
Out of stock

32

AXLE, IDLE

88T-17432-00-00

1
Out of stock

33

GEAR, REVERSE WHEEL 1

88T-17243-00-00

1
Out of stock

34

BEARING (7X9)

93306-20327-00

—
Out of stock

35

BEARING(1GJ)

93306-20458-00

—
Out of stock

36

JOURNAL 1

88T-47571-00-00

—
Out of stock

37

O-RING (437)

93210-24235-00

—
Out of stock

38

SPRKT,CHN DRVN 33T

8BB-47587-30-00

1
Out of stock

38

SPRKT, CHN DRN 35T

8BB-47587-50-00

1
Out of stock

38

SPRKT,CHN DRN 38T

8BB-47587-80-00

1
Out of stock

39

PLUG

90331-26096-00

1
Out of stock

40

OIL SEAL (705)

93102-35191-00

—
Out of stock

41

BRG,R-B 6007 62MM 150G KY

93306-00702-00

—
Out of stock

42

HOLDER

88T-47613-00-00

1
Out of stock

43

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—
Out of stock

44

SHAFT 2

88T-12257-00-00

—
Out of stock

45

WASHER, PLATE(2WG)

90201-204M9-00

—
Out of stock

46

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

47

SHAFT, TENSIONER

88T-12247-00-00

1
Out of stock

48

BOLT, HEXAGON (899 TRACK)

90101-10293-00

—
Out of stock

49

NUT (3WP1)

95317-10700-00

—
Out of stock

50

WASHER SEAL 256111730200

90210-10004-00

—
Out of stock

51

FORK, SHIFT 1

88T-18511-00-00

1
Out of stock

52

PIN, SPRING (6G0)

91690-40025-00

—
Out of stock

53

BAR, SHIFT FORK GUIDE 1

88T-18531-00-00

1
Out of stock

54

LEVER

88T-18191-00-00

1
Out of stock

55

BOLT,SOCKET

91317-06020-00

—
Out of stock

56

SPRING

88T-18123-00-00

—
Out of stock

57

CIRCLIP(13H)

99009-18400-00

—
Out of stock

58

LEVER, SHIFT 3

88T-18151-00-00

1
Out of stock

59

. O-RING

93210-10010-00

1
Out of stock

60

BOLT

90109-063E8-00

1
Out of stock

61

PIN

90249-07217-00

1
Out of stock

62

SPRING, COMPRESSION(88K)

90501-124G3-00

—
Out of stock

63

PLUG, STRAIGHT SCREW

90340-10136-00

1
Out of stock

64

WASHER, PLATE(56J)

90201-106H5-00

—
Out of stock

65

SHIFT LEVER ASY

88T-18120-01-00

1
Out of stock

66

SWITCH

J51-82817-00-00

—
Out of stock

67

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

68

LEVER COMP. 1

8BK-18190-00-00

1
Out of stock

69

NUT(6TD)

95337-10600-00

—
Out of stock

70

JOINT 2

88T-18157-00-00

—
Out of stock

71

JOINT, UNIVERSAL 2

J45-23845-00-00

—
Out of stock

72

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

73

JOINT, ROD 1

88T-18116-01-00

—
Out of stock

74

NUT (2H9)

90170-06228-00

—
Out of stock

75

NUT(JN5)

95317-06700-00

—
Out of stock

76

BOLT(3JP)

97017-06010-00

—
Out of stock

77

WASHER, SEAL (7G5)

90210-06006-00

1
Out of stock

78

COVER, LEVER

89X-77189-00-00

1
Out of stock
