1990 Yamaha Enticer LTR (ET400TRP) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1990 Yamaha Enticer LTR (ET400TRP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

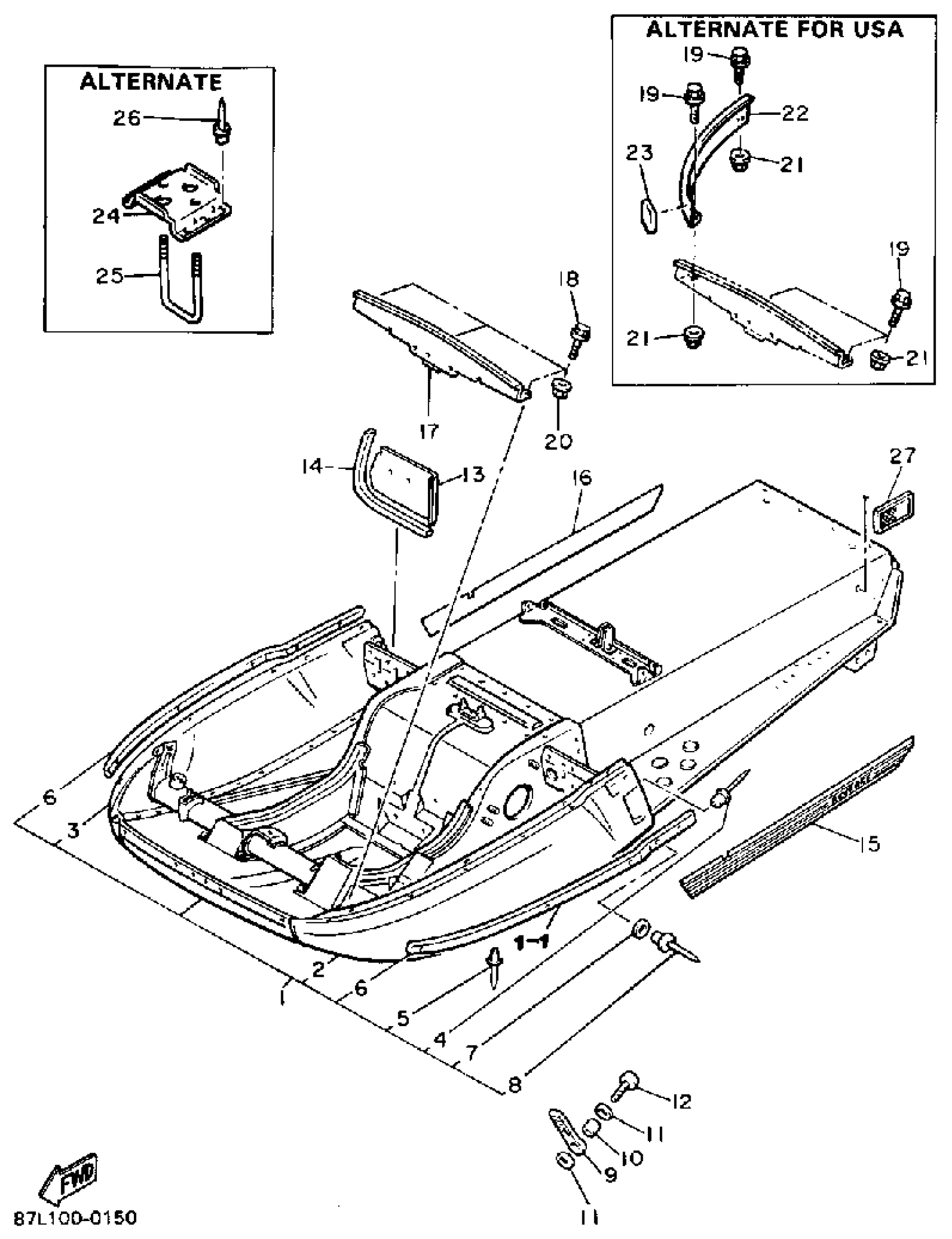

1990 Yamaha Enticer LTR (ET400TRP) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

84G-21910-00-00

1
Out of stock

1

BELLY PAN (ET400)

8X2-21912-09-00

1
Out of stock

2

. HOOD 1

8X0-21982-00-00

1
Out of stock

3

. HOOD 2

8X0-21983-00-00

1
Out of stock

4

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

5

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

6

. TRIM 1

8W6-2196T-00-00

1
Out of stock

7

WASHER

90201-04015-00

—
Out of stock

8

RIVET,BLIND

90267-40080-00

1
Out of stock

9

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

10

COLLAR (420)

90387-06241-00

1

$6.18

In stock

11

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

12

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

13

COVER 2

8Y2-2198G-00-00

1
Out of stock

14

SHIELD, NOISE

8Y2-2199F-00-00

1
Out of stock

15

EMBLEM 4

87L-77354-00-00

1
Out of stock

16

EMBLEM 5

87L-77355-00-00

1
Out of stock

17

COVER,1

85T-2198F-00-00

1
Out of stock

18

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

19

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

20

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

21

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

22

PROTECTOR 2

82H-77552-00-00

1
Out of stock

23

PROTECTOR 3

82H-77553-01-00

1
Out of stock

24

. BRACKET, BATTERY

8W8-2199G-00-00

1
Out of stock

25

. SCREW, FITTING

8J4-82133-00-00

1
Out of stock

26

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

27

REAR REFLECTOR ASSY

81G-85130-00-00

—

$33.55

In stock
