1982 Yamaha ET340TF SKI ET340TF - TG Diagram

← All diagrams

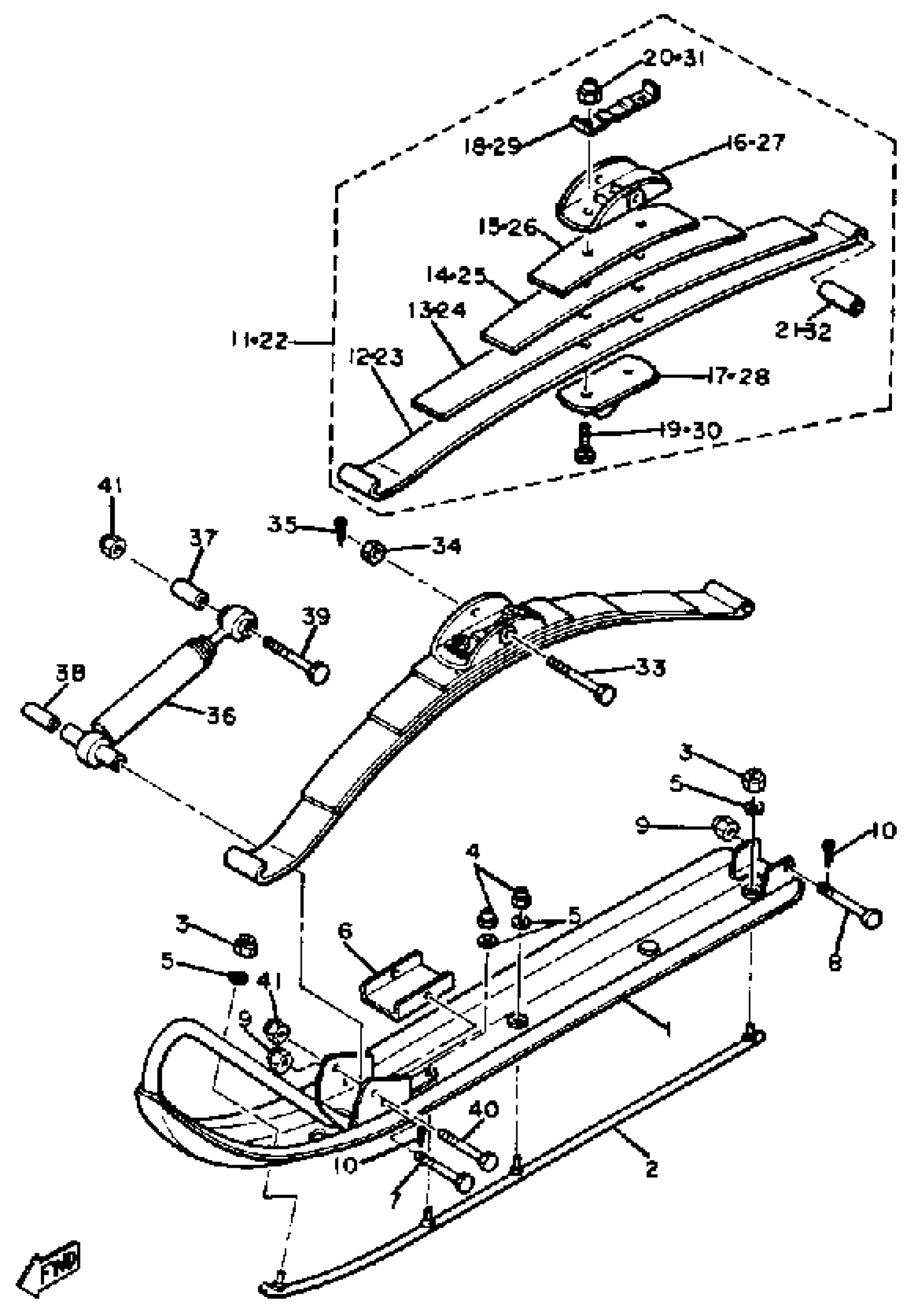

Find the part on the SKI ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha ET340TF SKI ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8E3-23710-09-00

1
Out of stock

2

RUNNER 1

8E3-23731-00-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

PLATE, WEAR

888-23735-00-00

—

$60.09

In stock

7

1

$8.14

In stock

8

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

PIN, COTTER

91490-20025-00

1

$1.31

In stock

11

SPRING ASY 1

8V2-23760-00-00

1
Out of stock

12

LEAF 1

888-23761-10-00

1
Out of stock

13

LEAF 2

865-23762-10-00

1
Out of stock

14

LEAF 3

888-23763-00-00

1
Out of stock

15

. LEAF 5

865-23771-00-00

1
Out of stock

16

. SADDLE 1

806-23766-00-00

1
Out of stock

17

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

18

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

19

. BOLT

90109-105E1-00

1
Out of stock

20

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

21

COLLAR

90387-08478-00

1
Out of stock

22

SPRING ASY 2

8V2-23770-00-00

1
Out of stock

23

LEAF 1

888-23761-10-00

1
Out of stock

24

LEAF 2

865-23762-10-00

1
Out of stock

25

LEAF 3

888-23763-00-00

1
Out of stock

26

. LEAF 5

865-23771-00-00

1
Out of stock

27

. SADDLE 1

806-23766-00-00

1
Out of stock

28

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

29

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

30

. BOLT

90109-105E1-00

1
Out of stock

31

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

32

COLLAR

90387-08478-00

1
Out of stock

33

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

34

NUT, SLOTTED

95306-10900-00

1
Out of stock

35

PIN, COTTER

91490-25020-00

—

$2.94

In stock

36

CUSHION ASSY

8J6-23350-00-00

—

$145.14

In stock

37

COLLAR (878)

90387-08262-00

—

$9.02

In stock

38

COLLAR (864)

90387-08224-00

—

$7.52

In stock

39

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

40

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

41

NUT, NYLON

95717-08300-00

1

$2.57

In stock
