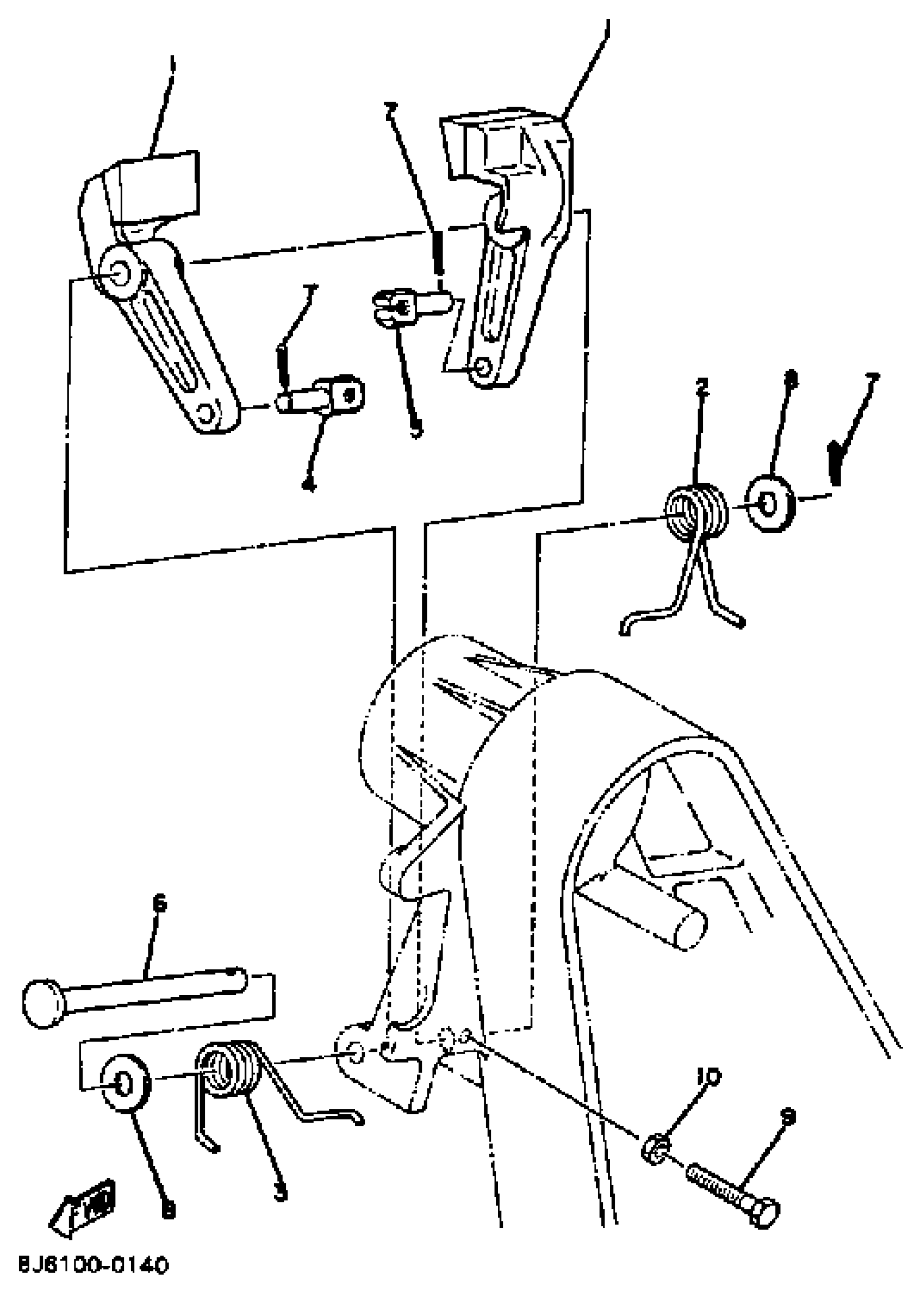

1982 Yamaha ET340TF Brake ET340TF - TG Diagram

← All diagrams

Find the part on the Brake ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha ET340TF Brake ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER BODY COMP.1

88J-25730-00-00

1

$64.57

In stock

2

SPRING, TORSION

90508-26335-00

1
Out of stock

3

SPRING, TORSION

90508-26336-00

1
Out of stock

4

PIN (810)

90249-06012-00

—

$9.91

In stock

5

PIN

90249-06009-00

1
Out of stock

6

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

BOLT

90101-05355-00

1
Out of stock

10

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock
