1987 Yamaha Enticer 340 (ET340L) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1987 Yamaha Enticer 340 (ET340L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

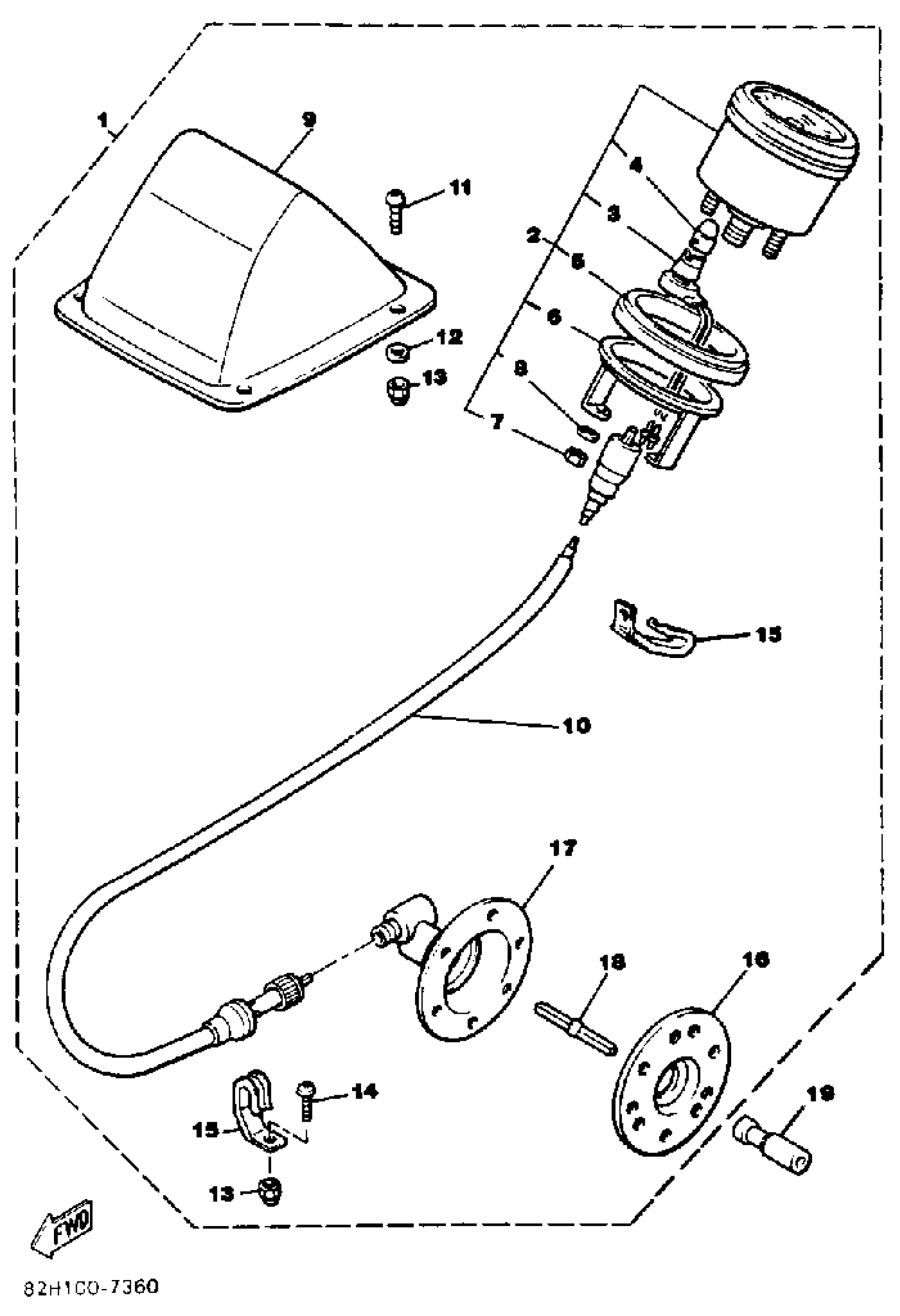

1987 Yamaha Enticer 340 (ET340L) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEDO KIT, ET340THJ

80X-W0081-40-00

1
Out of stock

2

SPEEDOMETER ASSY

87C-83510-20-00

1
Out of stock

3

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

4

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

5

. DAMPER

861-83523-40-00

1
Out of stock

6

PLATE, FITTING

863-83514-40-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

COVER, SPEEDOMETER

8H7-83507-00-00

1
Out of stock

10

SPEEDOMETER CABLECABLE ASSEMBLY

8G6-83550-01-00

1
Out of stock

11

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

12

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

13

NUT, NYLON

95707-05300-00

1

$2.74

In stock

14

SCREW, BINDING

98907-05010-00

1
Out of stock

15

CLAMP

90465-06013-00

1
Out of stock

16

HOUSING, FRONT AXLE

8F3-47551-00-00

—

$18.22

In stock

17

METER GEAR HOUSINGHOUSING COMP

8W6-47700-00-00

1
Out of stock

18

JOINT

8K4-47715-00-00

—

$4.60

In stock

19

CONNECTOR

8K4-47577-00-00

—

$16.57

In stock
