1985 Yamaha Enticer 340 (ET340J) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1985 Yamaha Enticer 340 (ET340J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

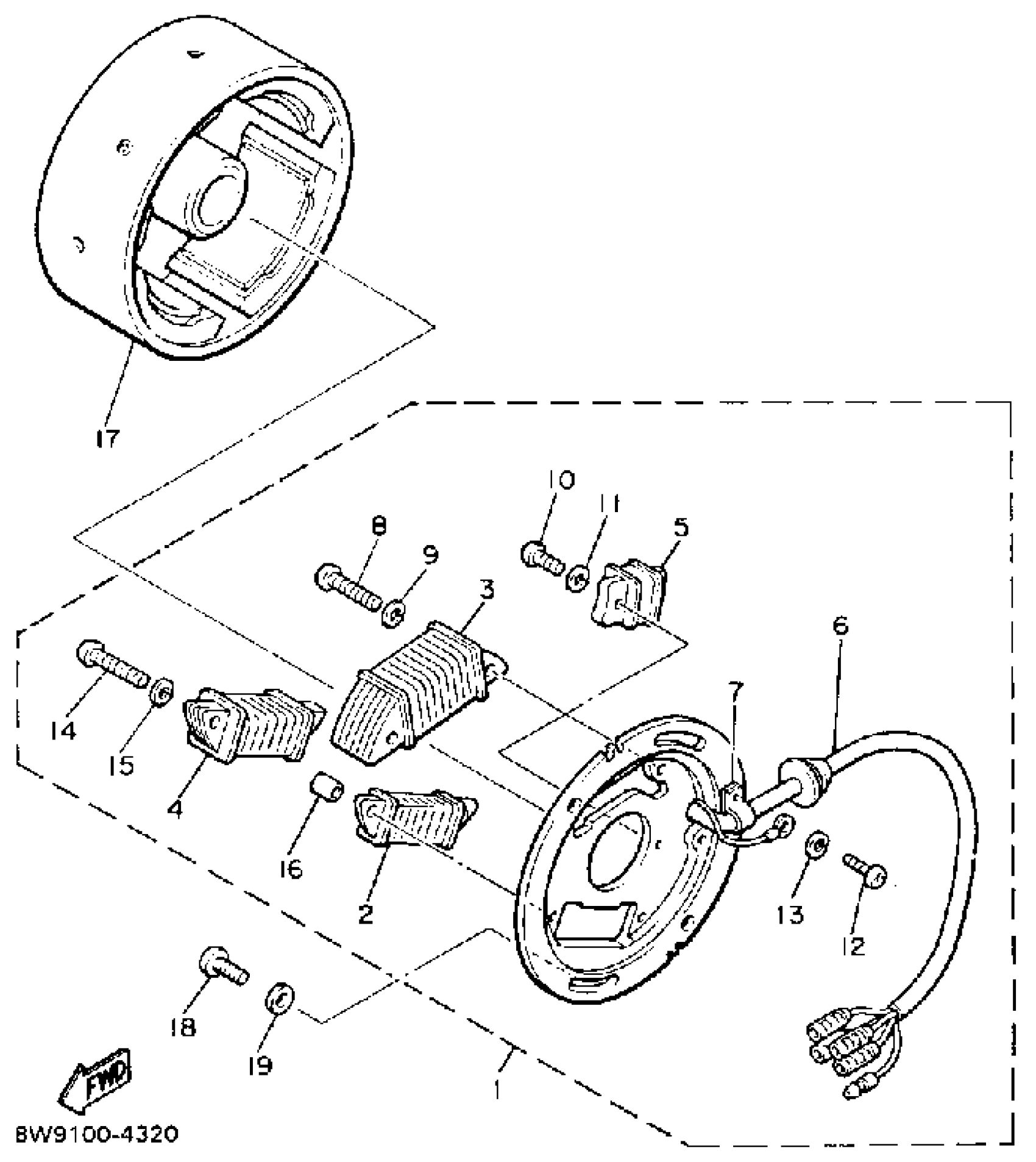

1985 Yamaha Enticer 340 (ET340J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

8W6-85510-20-00

1
Out of stock

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

1
Out of stock

3

. COIL, LIGHTING 1

8G8-85513-20-00

1
Out of stock

4

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

1
Out of stock

5

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

1
Out of stock

6

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

1
Out of stock

7

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

8

SCREW, PAN

98507-05035-00

1

$6.69

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

SCREW, PAN

98507-05040-00

1

$6.68

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

16

. SPACER

8T0-85519-20-00

1
Out of stock

17

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

1
Out of stock

18

SCREW, BIND (705)

98980-06016-00

—
Out of stock

19

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock
