1985 Yamaha Enticer 340 (ET340J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1985 Yamaha Enticer 340 (ET340J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

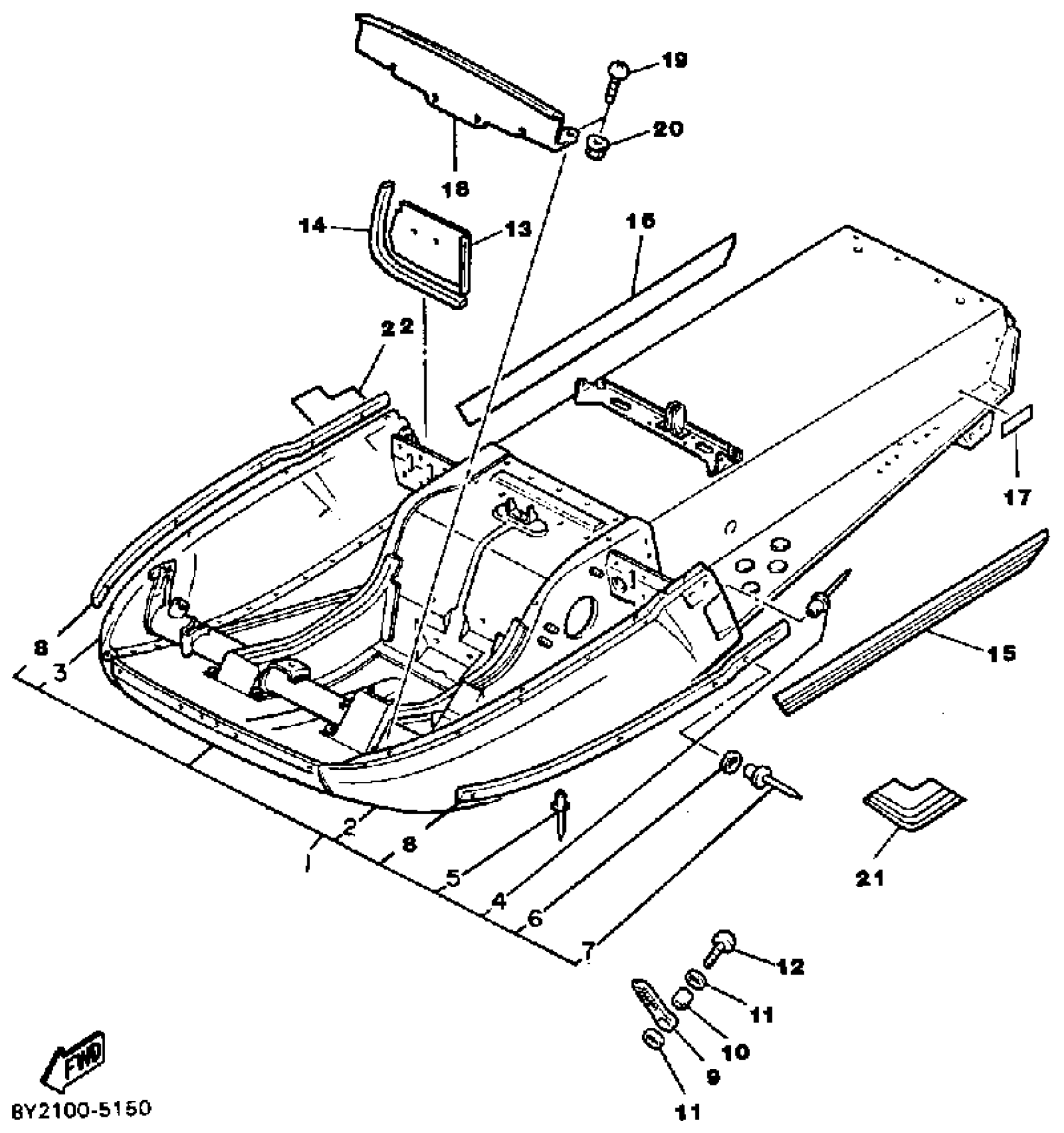

1985 Yamaha Enticer 340 (ET340J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8Y2-21910-01-00

1
Out of stock

2

. HOOD 1

8X0-21982-00-00

1
Out of stock

3

. HOOD 2

8X0-21983-00-00

1
Out of stock

4

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

5

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

6

WASHER, PLATE (8M6)

90201-047A2-00

1
Out of stock

7

RIVET,BLIND

90267-40080-00

1
Out of stock

8

. TRIM 1

8W6-2196T-00-00

1
Out of stock

9

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

10

COLLAR (420)

90387-06241-00

1

$6.18

In stock

11

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

12

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

13

COVER 2

8Y2-2198G-00-00

1
Out of stock

14

SHIELD, NOISE

8Y2-2199F-00-00

1
Out of stock

15

EMBLEM 4

8Y2-77354-00-00

1
Out of stock

16

EMBLEM 5

8Y2-77355-00-00

—

$26.98

In stock

17

INDICATOR 2

8K2-77742-00-00

1
Out of stock

18

COVER,1

85T-2198F-00-00

1
Out of stock

19

SCREW, BINDING

98907-06012-00

—
Out of stock

20

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

21

ORNAMENT 3

8Y2-77169-00-00

1
Out of stock

22

ORNAMENT 4

8Y2-77113-00-00

1
Out of stock
