1980 Yamaha ET340ED C - D - I - Diagram

← All diagrams

Find the part on the C - D - I - diagram for your 1980 Yamaha ET340ED, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

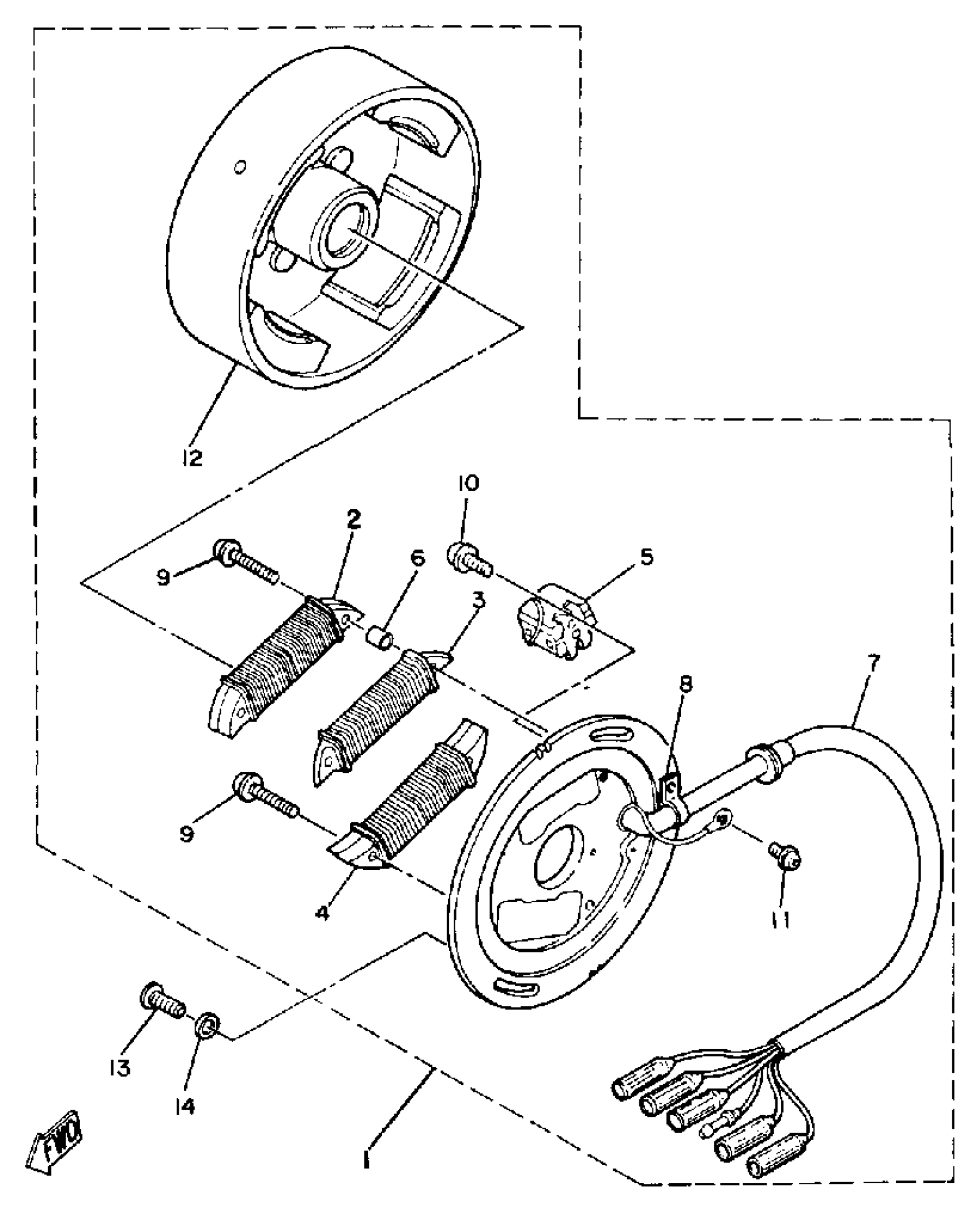

1980 Yamaha ET340ED C - D - I - Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8J9-85500-20-00)

1
Out of stock

2

. COIL SOURCE 1

8H4-85511-20-00

1
Out of stock

3

. COIL, CHARGE

8H5-85541-20-00

1
Out of stock

4

. COIL, LIGHTING 1

8H8-85513-20-00

1
Out of stock

5

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

1
Out of stock

6

. SPACER

8G8-85519-20-00

1
Out of stock

7

LEAD WIRE ASSEMBLY

(8H8-85515-20-00)

1
Out of stock

8

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

9

SCREW, PAN

98507-05035-00

1

$6.69

In stock

10

SCREW, PAN HEAD

(8J5-81346-20-00)

1
Out of stock

11

SCREW, PAN HEAD

(8J5-81347-20-00)

1
Out of stock

12

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

1
Out of stock

13

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

14

WASHER, PLATE 6261117600

90201-06043-00

1
Out of stock
