Partiron

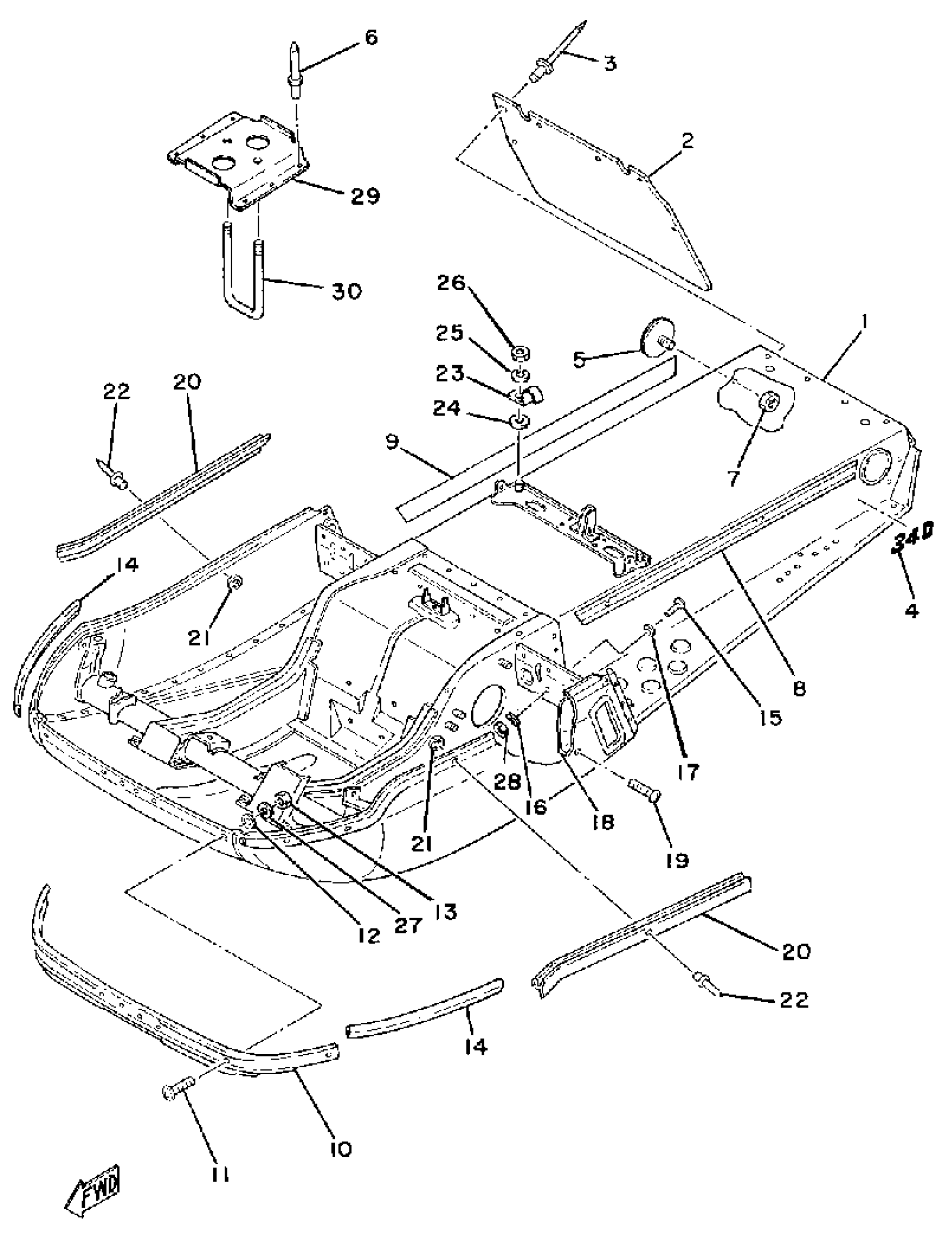

Yamaha ET340EC 1979 FRAME Diagram

#

Description
Price

1

FRAME

(8G8-21910-00-00)

Unavailable

2

FLAP

8F2-77595-00-00

Unavailable

3

RIVET, BLIND (8R6)

90267-48086-00

$3.44

4

EMBLEM 4

(8J4-77354-00-00)

Unavailable

5

REFLECTOR, REAR 1

449-85131-02-00

$24.04

6

RIVET, BLIND

90267-40936-00

$1.36

7

NUT, NYLON

95707-05300-00

$2.56

8

EMBLEM 1

(8J4-77351-00-00)

Unavailable

9

EMBLEM 2

(8J4-77352-00-00)

Unavailable

10

RNFCMNT, FRAME 1

8G8-21986-00-00

Unavailable

11

SCREW, BIND (705)

98980-06016-00

$6.35

12

WASHER, PLATE

90201-06M08-00

$2.16

13

NUT, HEXAGON

95380-06600-00

$4.11

14

TRIM 1 (8H5-2196T-00)

8J6-2196T-00-00

Unavailable

15

SCREW, PAN

98507-06014-00

$5.76

16

WASHER, SPRING

92995-06100-00

$2.95

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

SHIELD, NOISE

8G8-2199F-00-00

Unavailable

19

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

20

BUSH, RUBBER 1

8G8-77515-00-00

Unavailable

21

WASHER, PLATE

90201-04027-00

Unavailable

22

RIVET (856)

90267-48014-00

Unavailable

23

CLAMP

90462-10007-00

Unavailable

24

WASHER, PLATE

90201-06020-00

Unavailable

25

WASHER, SPRING

92995-06100-00

$2.95

26

NUT, HEXAGON

95380-06600-00

$4.11

27

WASHER, SPRING

92995-06100-00

$2.95

28

NUT, HEXAGON

95380-06600-00

$4.11

29

BRACKET, BATTERY

(8J4-2199G-00-00)

Unavailable

30

. SCREW, FITTING

8J4-82133-00-00

Unavailable
