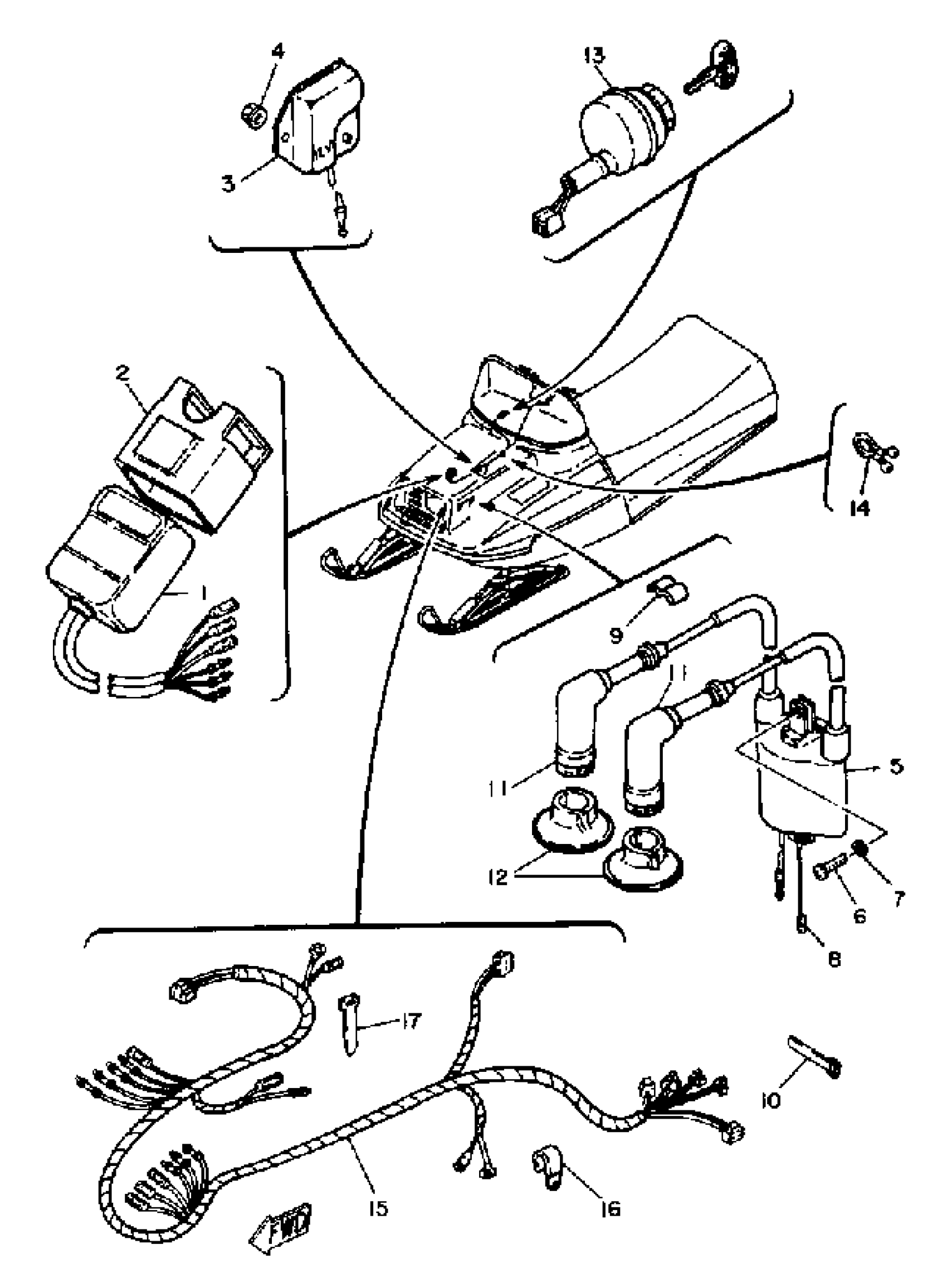

Find the part on the Electrical 1 diagram for your 1980 Yamaha ET340D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha ET340D Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8H4-85540-20-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

4

NUT, NYLON

95707-06300-00

1

$3.20

In stock

5

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WIRE, SUB-LEAD

J42-82318-00-00

1

$4.15

In stock

9

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

12

SEAL, PLUG CAP

8G8-82372-00-00

1
Out of stock

13

MAIN SWITCH ASSY

8R4-82510-20-00

1

$109.02

In stock

14

CLAMP (3Y2)

90464-16039-00

1
Out of stock

15

WIRE HARNESS ASSEMBLY

8J6-82590-20-00

1
Out of stock

16

CLAMP

90465-08028-00

1

$4.62

In stock

17

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
