1979 Yamaha ET340C Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1979 Yamaha ET340C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

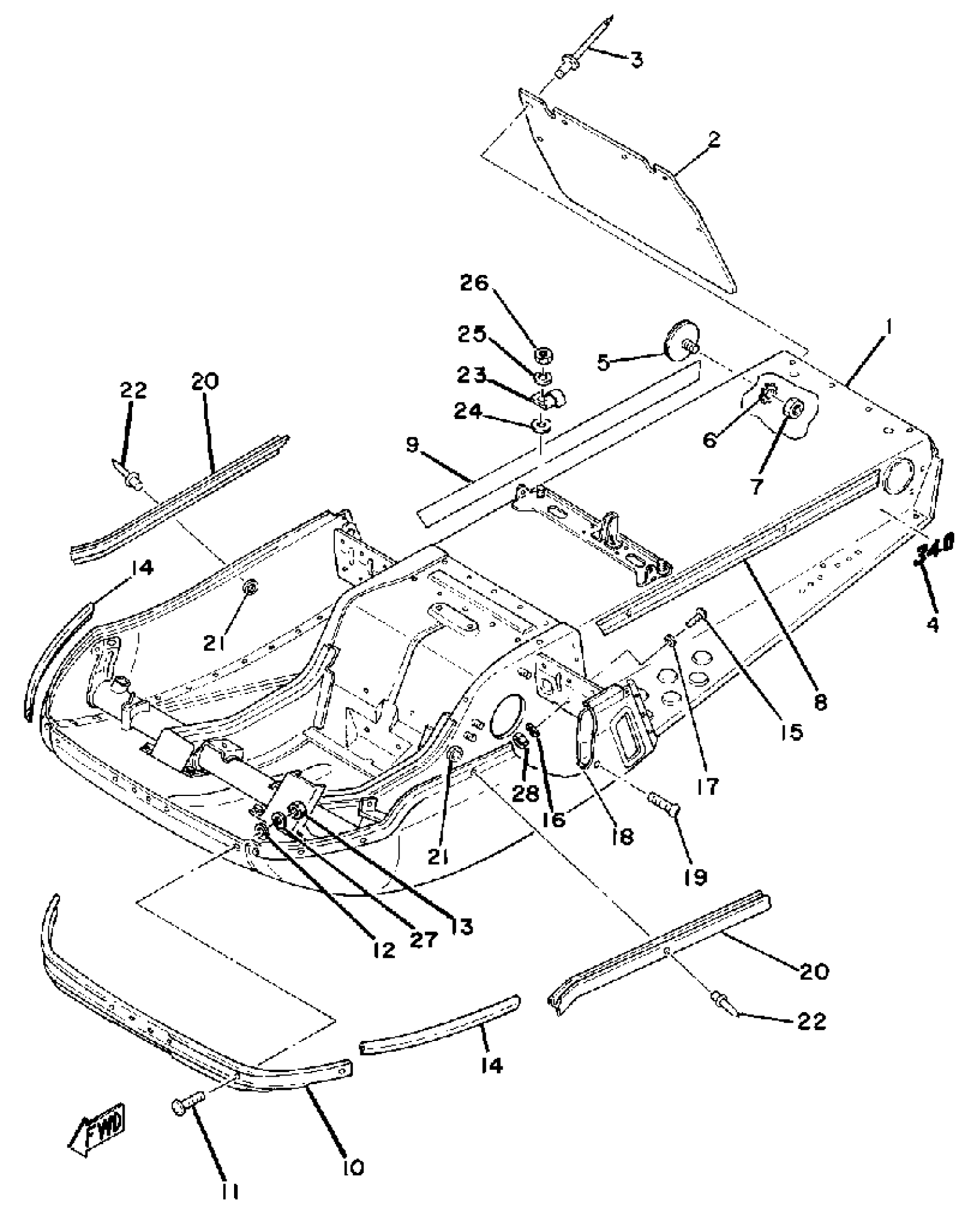

1979 Yamaha ET340C Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8G8-21910-00-00)

1
Out of stock

2

FLAP

8F2-77595-00-00

1
Out of stock

3

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

4

EMBLEM 4

(8G8-77354-00-00)

1
Out of stock

5

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

6

WASHER, EX.TOOTH

92990-05400-00

1
Out of stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

EMBLEM 1

8H5-77351-00-00

1
Out of stock

9

EMBLEM 2

(8H5-77352-00-00)

1
Out of stock

10

RNFCMNT, FRAME 1

8G8-21986-00-00

1
Out of stock

11

SCREW, BIND (705)

98980-06016-00

1
Out of stock

12

WASHER, PLATE

90201-06M08-00

1
Out of stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

TRIM 1 (8H5-2196T-00)

8J6-2196T-00-00

1
Out of stock

15

SCREW, PAN

98507-06014-00

1

$6.18

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

SHIELD, NOISE

8G8-2199F-00-00

1
Out of stock

19

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

20

BUSH, RUBBER 1

8G8-77515-00-00

1
Out of stock

21

WASHER, PLATE

90201-04027-00

—
Out of stock

22

RIVET (856)

90267-48014-00

—
Out of stock

23

CLAMP

90462-10007-00

1
Out of stock

24

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
