1978 Yamaha ET340B OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

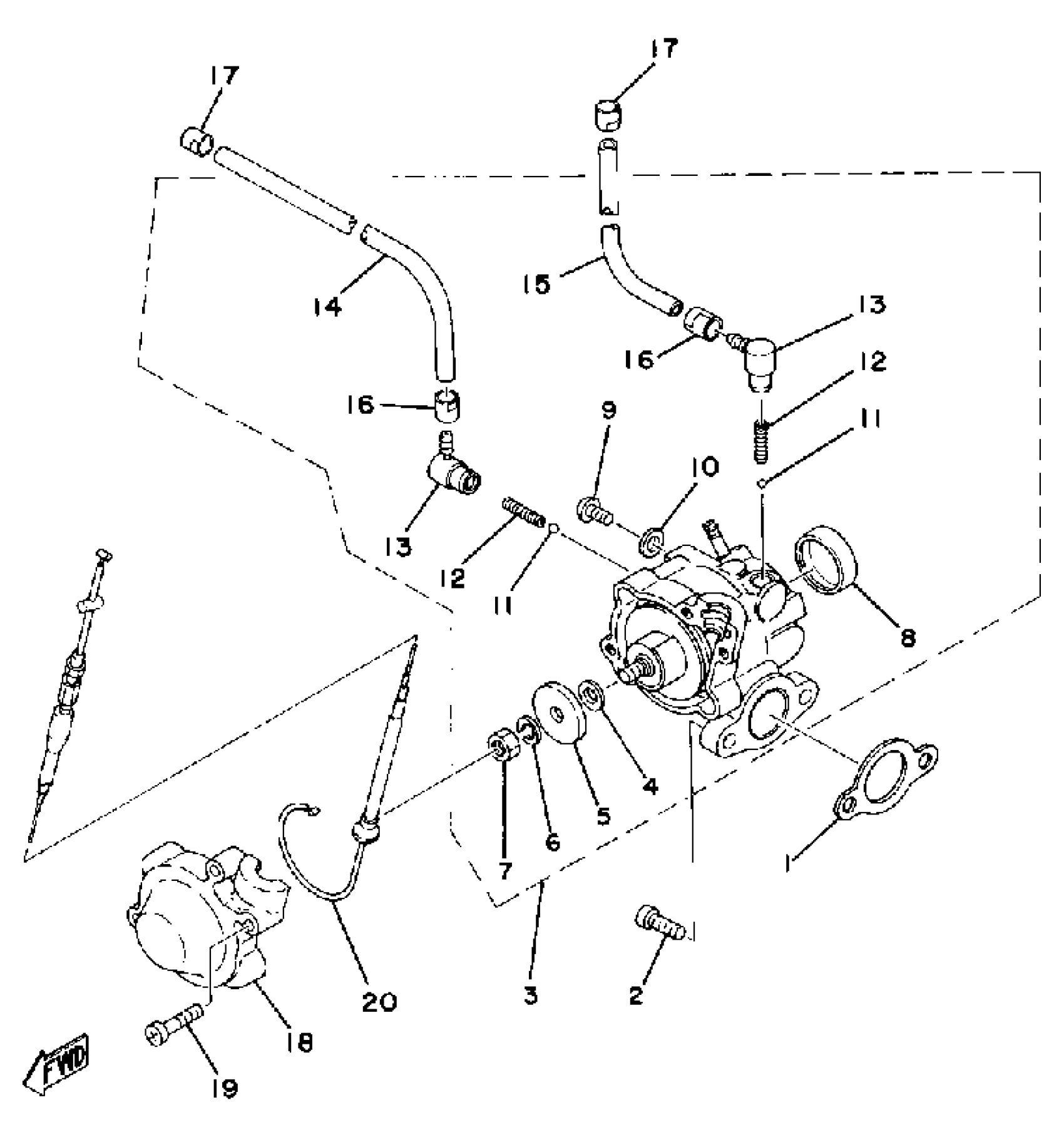

1978 Yamaha ET340B OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

OIL PUMP ASSEMBLY

8G8-13101-00-00

1
Out of stock

4

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

4

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

4

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

5

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

. PLUG

90338-21100-00

1
Out of stock

9

SCREW, BIND

98980-04008-00

1

$3.26

In stock

10

GASKET 137131870000

90430-04004-00

1
Out of stock

11

BALL

93505-32002-00

1

$2.22

In stock

12

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

13

NOZZLE

353-13552-01-00

1
Out of stock

14

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

15

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

16

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

19

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

20

PUMP CABLE ASSEMBLY

8G8-26320-01-00

1
Out of stock
