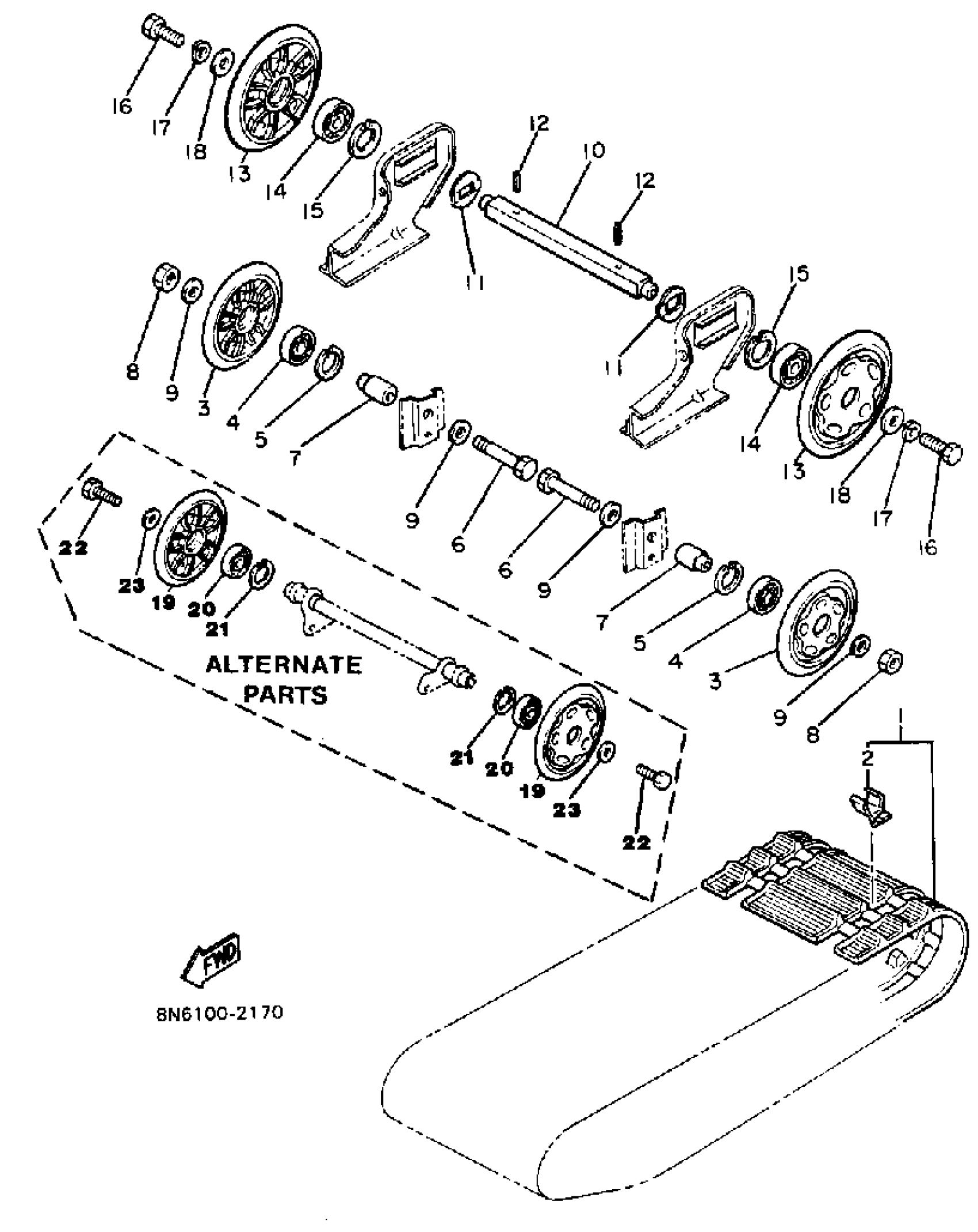

Yamaha ET300G 1983 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8H9-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

$12.99

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

4

BEARING(8AB)

93306-00444-00

$34.26

5

CIRCLIP(5U8)

99009-42500-00

$6.32

6

BOLT

90101-12356-00

Unavailable

7

COLLAR

90387-12584-00

Unavailable

8

NUT, NYLON

95717-12300-00

$5.76

9

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

10

AXLE, REAR

8F3-47521-00-00

Unavailable

11

WASHER, SPEC''L SHAP

90209-23152-00

Unavailable

12

PIN, SPRING (663)

91690-40040-00

$3.86

13

WHEEL GUIDE COMP.

8L4-47530-00-00

$156.08

14

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$33.35

15

CIRCLIP(48Y)

99009-47500-00

$7.15

16

BOLT, HEXAGON

97013-08020-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

19

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

20

BEARING(8AB)

93306-00444-00

$34.26

21

CIRCLIP(5U8)

99009-42500-00

$6.32

22

BOLT (8K2)

90109-08559-00

Unavailable

23

WASHER (8G1)

90201-08681-00

Unavailable
