STEERING

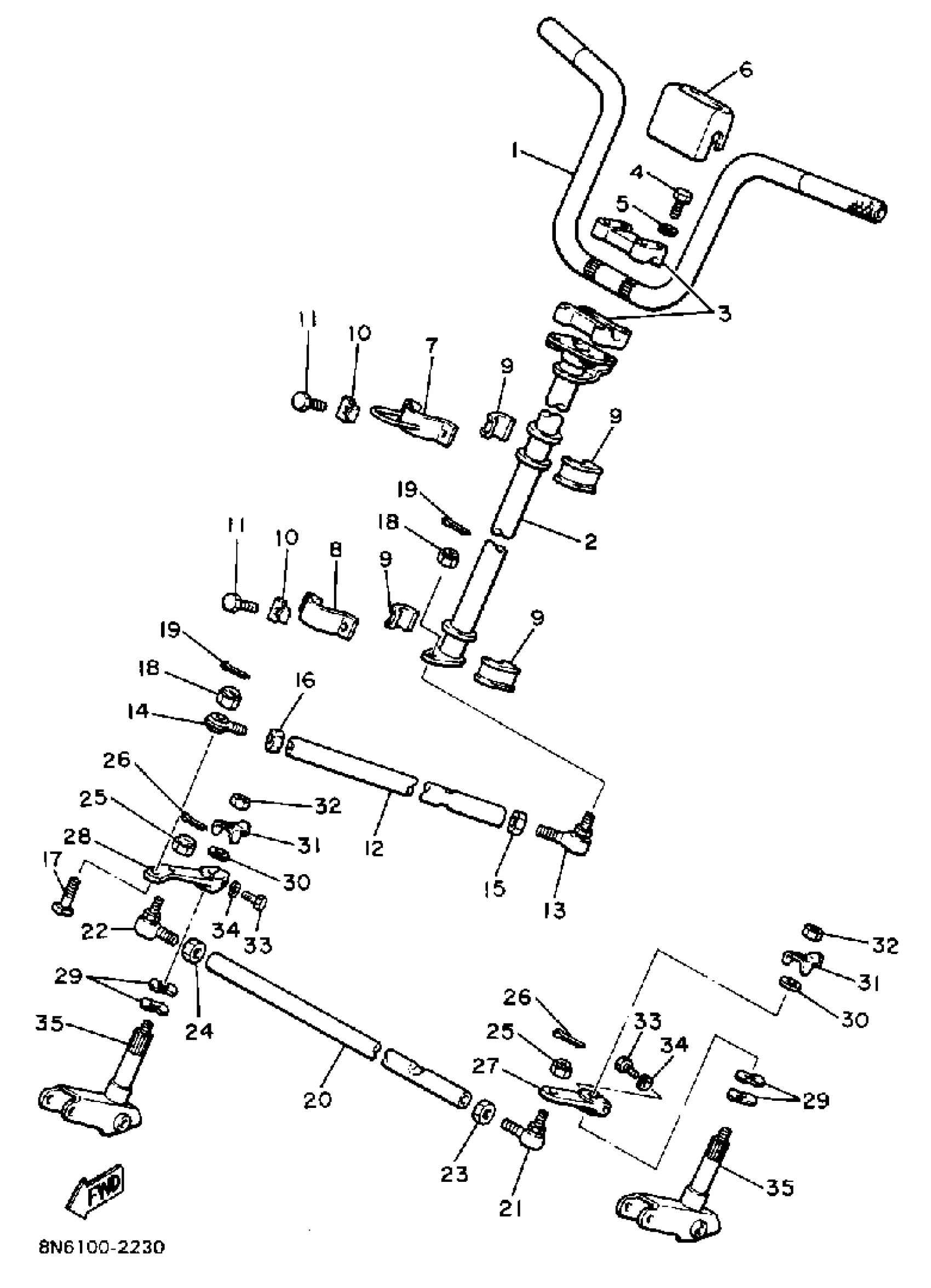

1983 Yamaha ET300G Steering Diagram
Find the part on the Steering diagram for your 1983 Yamaha ET300G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
COLUMN, STEERING
8G8-23811-00-00
1
Out of stock
2
COLUMN, STEERING 2
8G8-23813-00-00
1
Out of stock
3
HANDLE, HOLDER
164-23441-01-98
—
Out of stock
12
ROD,STEERING RELAY
87F-23821-00-00
1
Out of stock
17
BOLT
90109-10482-00
1
Out of stock
20
ROD, TIE
8G8-23831-00-00
1
Out of stock
27
ARM, OUTSIDE 1
8F3-23851-00-00
1
Out of stock
28
ARM, OUTSIDE 2
8F3-23852-00-00
1
Out of stock
29
WASHER, WAVE (878)
90206-20037-00
—
Out of stock
31
WASHER, LOCK
90215-10096-00
1
Out of stock
35
COLUMN, SKI 1
8F3-23853-00-00
1
Out of stock
