1983 Yamaha ET300G Speedometer KIT Diagram

← All diagrams

Find the part on the Speedometer KIT diagram for your 1983 Yamaha ET300G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

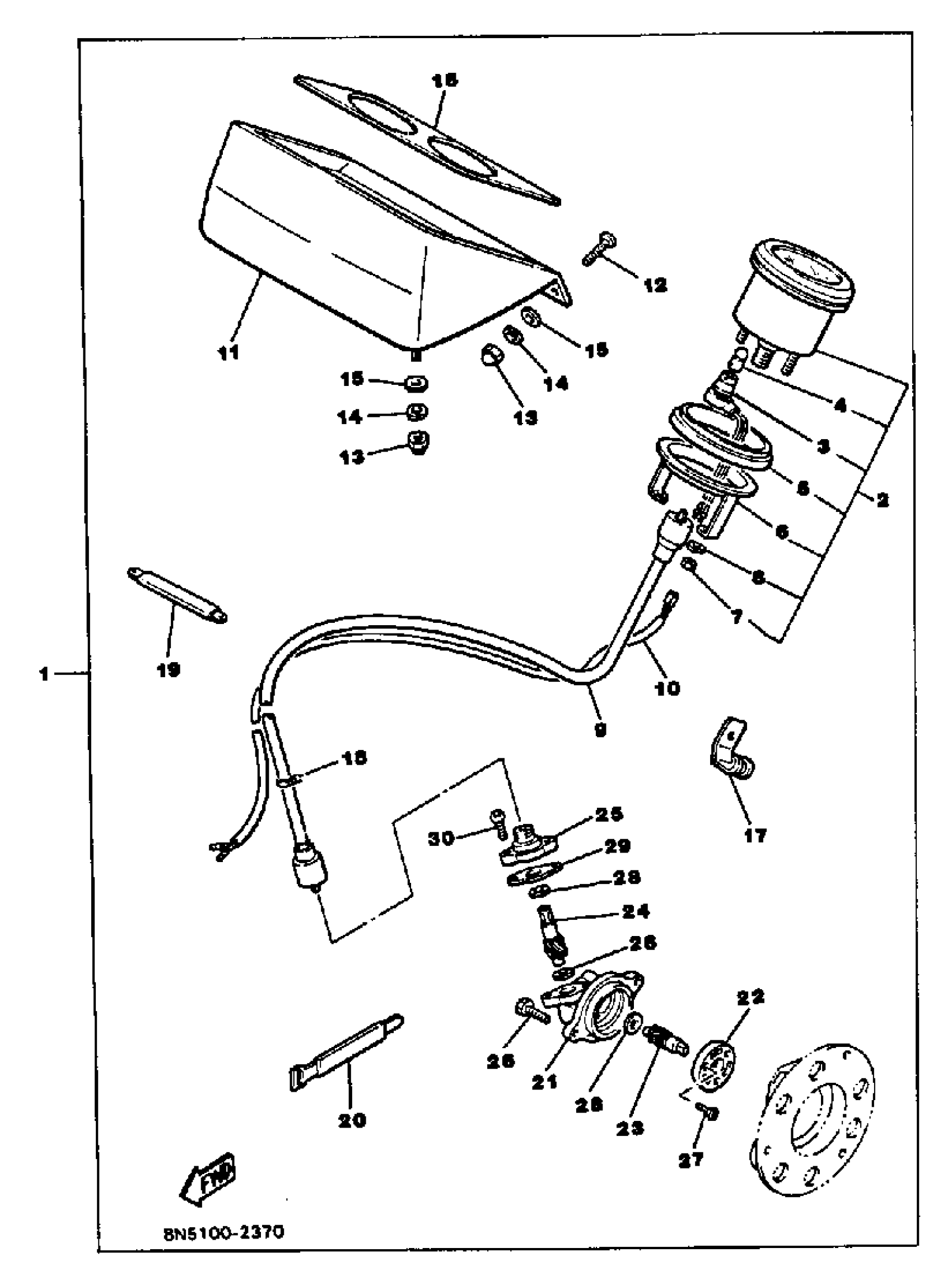

1983 Yamaha ET300G Speedometer KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOET300/340BCD

(ACC-01200-68-00)

1
Out of stock

2

SPEEDOMETER ASSEMBLY

8G6-83510-21-00

1
Out of stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

5

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

6

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

SPEEDOMETER CABLE

8F3-83550-01-00

1
Out of stock

10

WIRE, LEAD

8H4-83553-00-00

1
Out of stock

11

PANEL,METER

8G5-83611-00-00

—
Out of stock

12

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

COVER, METER PANEL

8G6-83612-00-00

1
Out of stock

17

CLAMP

90465-08028-00

1

$4.62

In stock

18

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

19

CLAMP

90465-05128-00

1
Out of stock

20

BAND

341-26397-01-00

1
Out of stock

21

HOUSING

8E6-47711-10-00

1
Out of stock

22

JOURNAL

853-47712-10-00

1
Out of stock

23

GEAR, DRIVE

810-47731-11-00

1
Out of stock

24

GEAR, DRIVEN (810-47741-10)

810-47741-11-00

1
Out of stock

25

COVER, METER HOUSING

8E3-47721-10-00

—

$18.34

In stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

28

SHIM

810-47717-10-00

1
Out of stock

29

GASKET

810-47727-11-00

1
Out of stock

30

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock
