1981 Yamaha ET300E SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1981 Yamaha ET300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

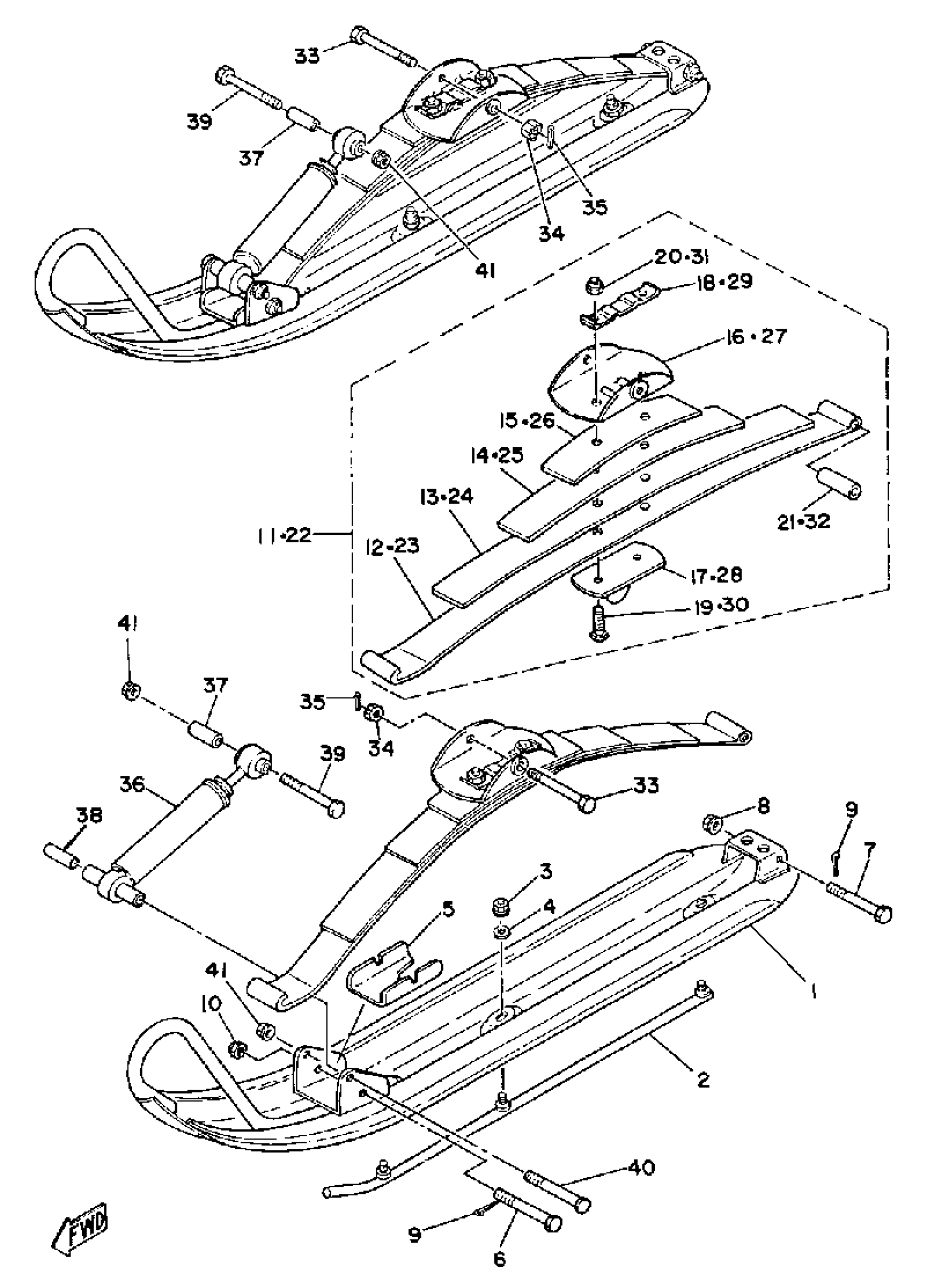

1981 Yamaha ET300E SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP

8F3-23710-01-00

1

$197.99

In stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER(6TC)

92907-08200-00

1
Out of stock

5

PLATE, WEAR

8F3-23735-00-00

1

$17.98

In stock

6

1

$8.14

In stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

8

NUT, NYLON

95717-08300-00

1

$2.57

In stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

NUT, U

95617-08100-00

1

$6.78

In stock

11

SPRING ASY 1

8V2-23760-00-00

1
Out of stock

12

LEAF 1

888-23761-10-00

1
Out of stock

13

LEAF 2

865-23762-10-00

1
Out of stock

14

LEAF 3

888-23763-00-00

1
Out of stock

15

. LEAF 5

865-23771-00-00

1
Out of stock

16

. SADDLE 1

806-23766-00-00

1
Out of stock

17

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

18

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

19

. BOLT

90109-105E1-00

1
Out of stock

20

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

21

COLLAR

90387-08478-00

1
Out of stock

22

SPRING ASY 2

8V2-23770-00-00

1
Out of stock

23

LEAF 1

888-23761-10-00

1
Out of stock

24

LEAF 2

865-23762-10-00

1
Out of stock

25

LEAF 3

888-23763-00-00

1
Out of stock

26

. LEAF 5

865-23771-00-00

1
Out of stock

27

. SADDLE 1

806-23766-00-00

1
Out of stock

28

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

29

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

30

. BOLT

90109-105E1-00

1
Out of stock

31

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

32

COLLAR

90387-08478-00

1
Out of stock

33

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

34

NUT, SLOTTED

95306-10900-00

1
Out of stock

35

PIN, COTTER

91490-25020-00

—

$2.94

In stock

36

SHOCK ABSORBER ASSEMBLY

8J5-23350-00-00

1
Out of stock

37

COLLAR (878)

90387-08262-00

—

$9.02

In stock

38

COLLAR (864)

90387-08224-00

—

$7.52

In stock

39

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

40

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

41

NUT, NYLON

95717-08300-00

1

$2.57

In stock
