1981 Yamaha ET300E Guard - Luggage BOX Diagram

← All diagrams

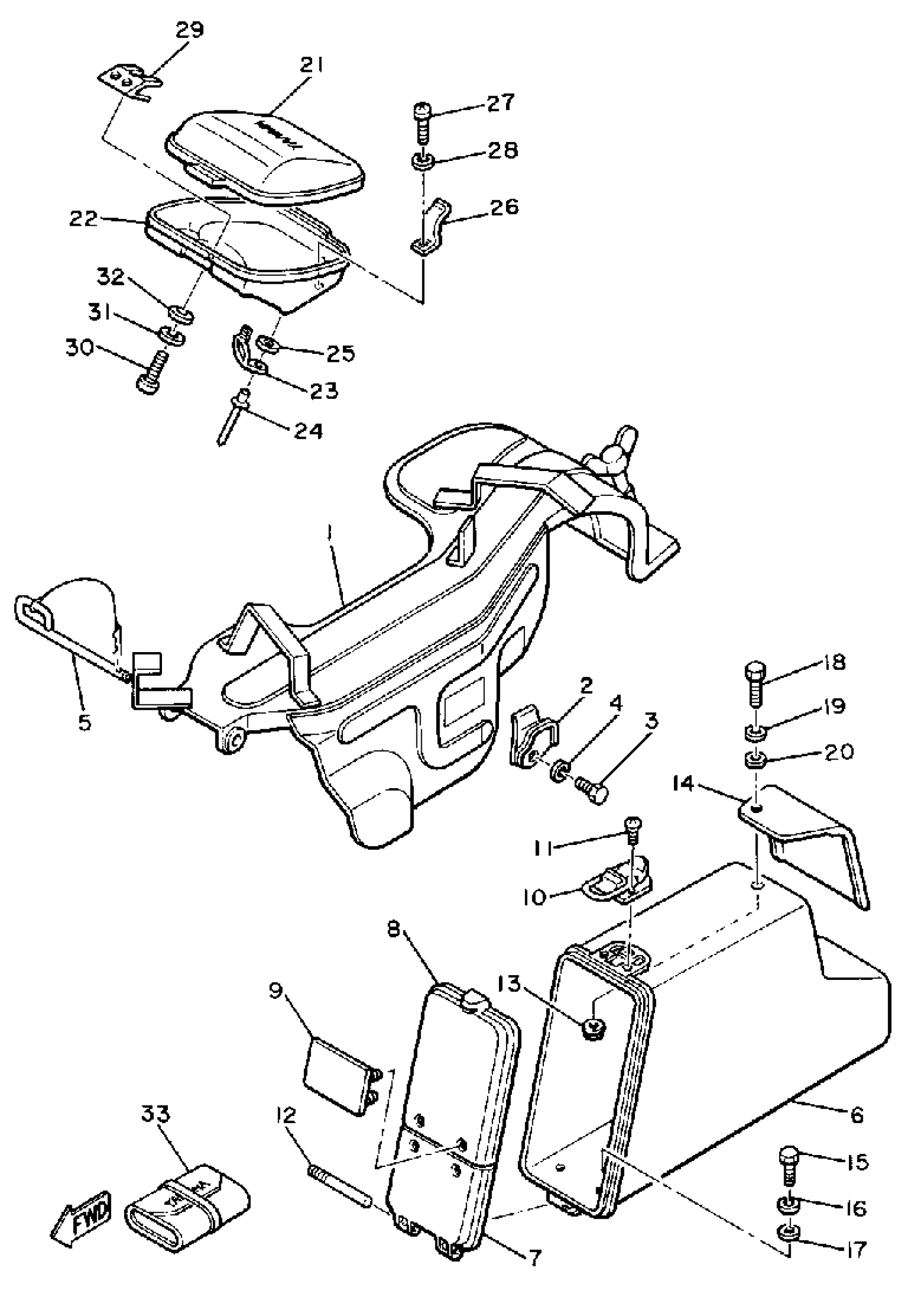

Find the part on the Guard - Luggage BOX diagram for your 1981 Yamaha ET300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha ET300E Guard - Luggage BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8H9-77311-00-00

1
Out of stock

2

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

3

BOLT, HEXAGON

97017-08016-00

1
Out of stock

4

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SHAFT

8F3-77327-00-00

1
Out of stock

6

LUGGAGE BOX

(8G8-77391-00-00)

1
Out of stock

7

COVER, LUGGAGE BOX

(8H5-77392-00-00)

1
Out of stock

8

COVER, LUGGE BOX 2

(8H5-77377-00-00)

1
Out of stock

9

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

1
Out of stock

10

LUGGE BOX LTCH ASSEMBLY

8E7-77340-00-00

1
Out of stock

11

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

12

PIN, SPEC''L SHAPE

(90249-03128-00)

1
Out of stock

13

NUT, SPEC''L SHAPE

(90179-06254-00)

1
Out of stock

14

STAY 1

(8G8-77397-00-00)

1
Out of stock

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

18

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE

90201-06M08-00

1
Out of stock

21

LID

1T4-2177E-00-00

1
Out of stock

22

BOX

1T4-2177A-00-00

1
Out of stock

23

HOOK 1

8K4-77386-00-00

1
Out of stock

24

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

25

WASHER, PLATE

90201-04027-00

—
Out of stock

26

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

27

SCREW, PAN

98507-06014-00

—

$6.18

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

30

SCREW, PAN

98507-06014-00

—

$6.18

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

33

TOOL KIT

85L-28100-01-00

—

$70.22

In stock
