1981 Yamaha ET300E Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1981 Yamaha ET300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

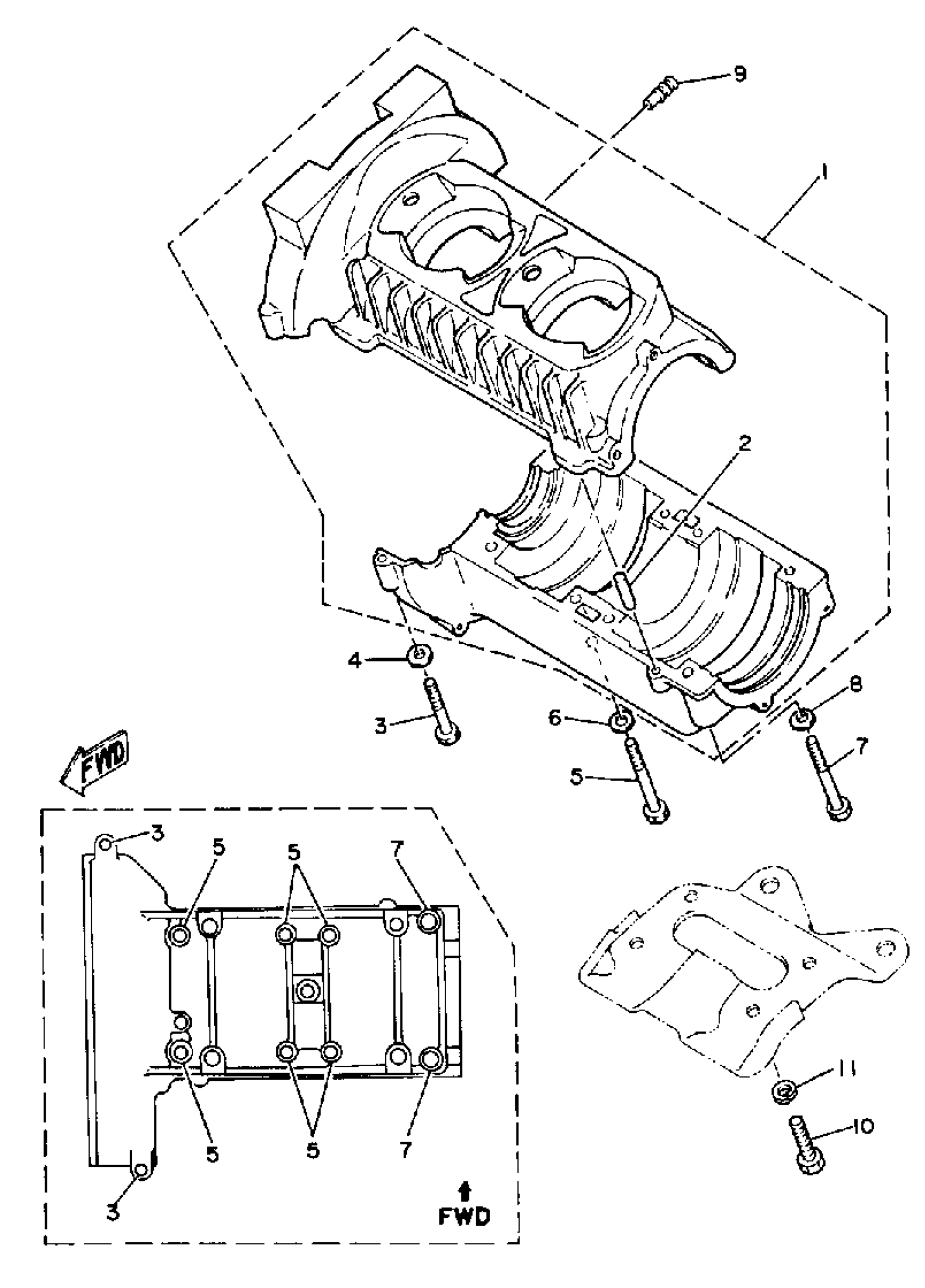

1981 Yamaha ET300E Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASY

8J9-15100-01-00

1
Out of stock

2

PIN, DOWEL (8G8)

93605-10108-00

1

$6.68

In stock

3

BOLT

97014-08040-00

1

$5.26

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

BOLT (663)

97013-08060-00

1

$3.25

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

PIPE, JOINT

8G8-24461-00-00

1
Out of stock

10

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
