1979 Yamaha ET300C Pump Drive - Gear Diagram

← All diagrams

Find the part on the Pump Drive - Gear diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

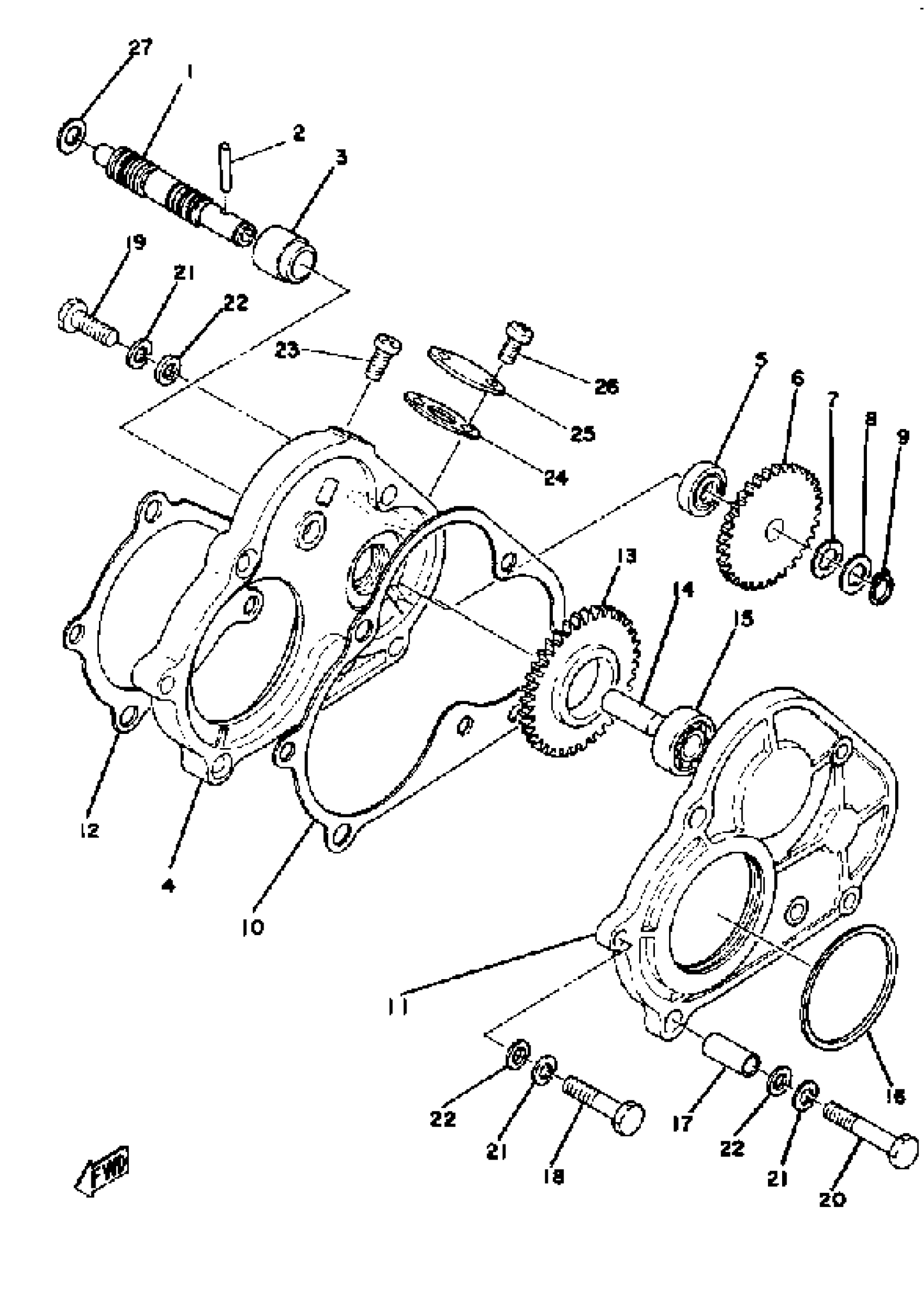

1979 Yamaha ET300C Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

826-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

8G8-15416-00-00

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GASKET 2

8G8-15466-03-00

1
Out of stock

11

COVER, OIL PUMP R

8G8-15426-00-00

1
Out of stock

12

GASKET,O/PPCUR1

8G8-15456-03-00

1
Out of stock

13

GEAR, IDLE

8G8-13179-00-00

1
Out of stock

14

SHAFT, IDLE GEAR

8G8-13342-00-00

1
Out of stock

15

—

$29.35

In stock

16

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

17

PIN, DOWEL

91810-18025-00

1
Out of stock

18

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

BOLT (682)

97095-06040-00

—

$2.36

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

GASKET

821-17818-02-00

—

$5.66

In stock

25

CAP, HOUSING

824-17819-00-00

1
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

27

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
