1979 Yamaha ET300C Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

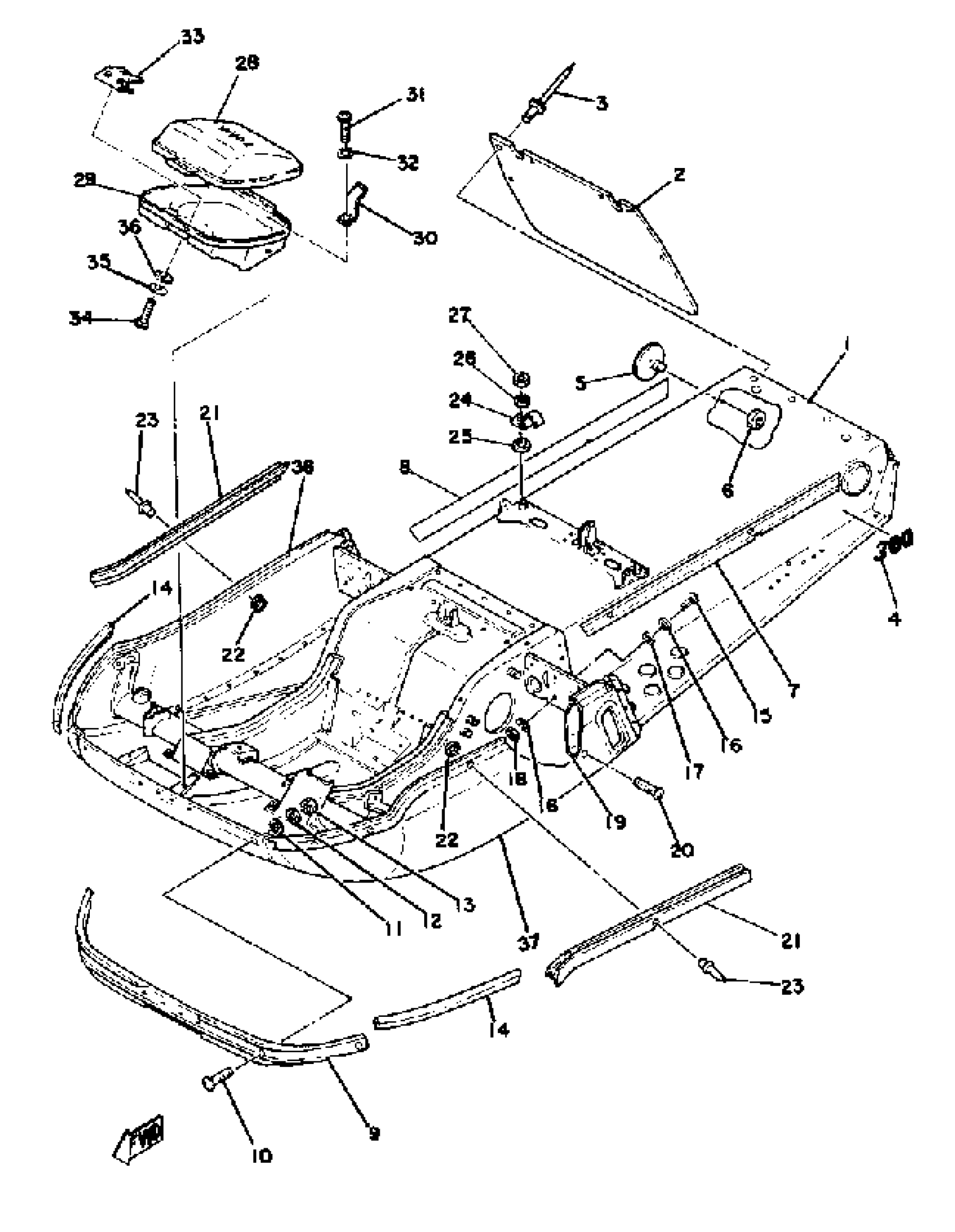

1979 Yamaha ET300C Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

8H9-21910-00-00

1
Out of stock

2

FLAP

8F2-77595-00-00

1
Out of stock

3

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

4

EMBLEM 4

(8H9-77354-00-00)

1
Out of stock

5

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

6

NUT, NYLON

95707-05300-00

1

$2.74

In stock

7

EMBLEM 1

(8H9-77351-00-00)

1
Out of stock

8

EMBLEM 2

8H9-77352-00-00

1
Out of stock

9

RNFCMNT, FRAME 1

8G8-21986-00-00

1
Out of stock

10

SCREW, BIND (705)

98980-06016-00

1
Out of stock

11

WASHER, PLATE

90201-06M08-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

TRIM 1 (8H5-2196T-00)

8J6-2196T-00-00

1
Out of stock

15

SCREW, PAN

98507-06014-00

1

$6.18

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

SHIELD, NOISE

8G8-2199F-00-00

1
Out of stock

20

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

21

BUSH, RUBBER 1

8G8-77515-00-00

1
Out of stock

22

WASHER, PLATE

90201-04027-00

—
Out of stock

23

RIVET (856)

90267-48014-00

—
Out of stock

24

CLAMP

90462-10007-00

1
Out of stock

25

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

LID

1T4-2177E-00-00

1
Out of stock

29

BOX

1T4-2177A-00-00

1
Out of stock

30

BRACKET, TL BX FTNG

(8H9-21945-00-00)

1
Out of stock

31

SCREW, PAN

98507-06014-00

1

$6.18

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

1
Out of stock

34

SCREW, PAN

98507-06014-00

1

$6.18

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

37

HOOD 1

8N6-21982-00-00

1
Out of stock

38

HOOD 2

8N6-21983-00-00

1
Out of stock
