1979 Yamaha ET250C Pump Drive - Gear ET250D\E Diagram

← All diagrams

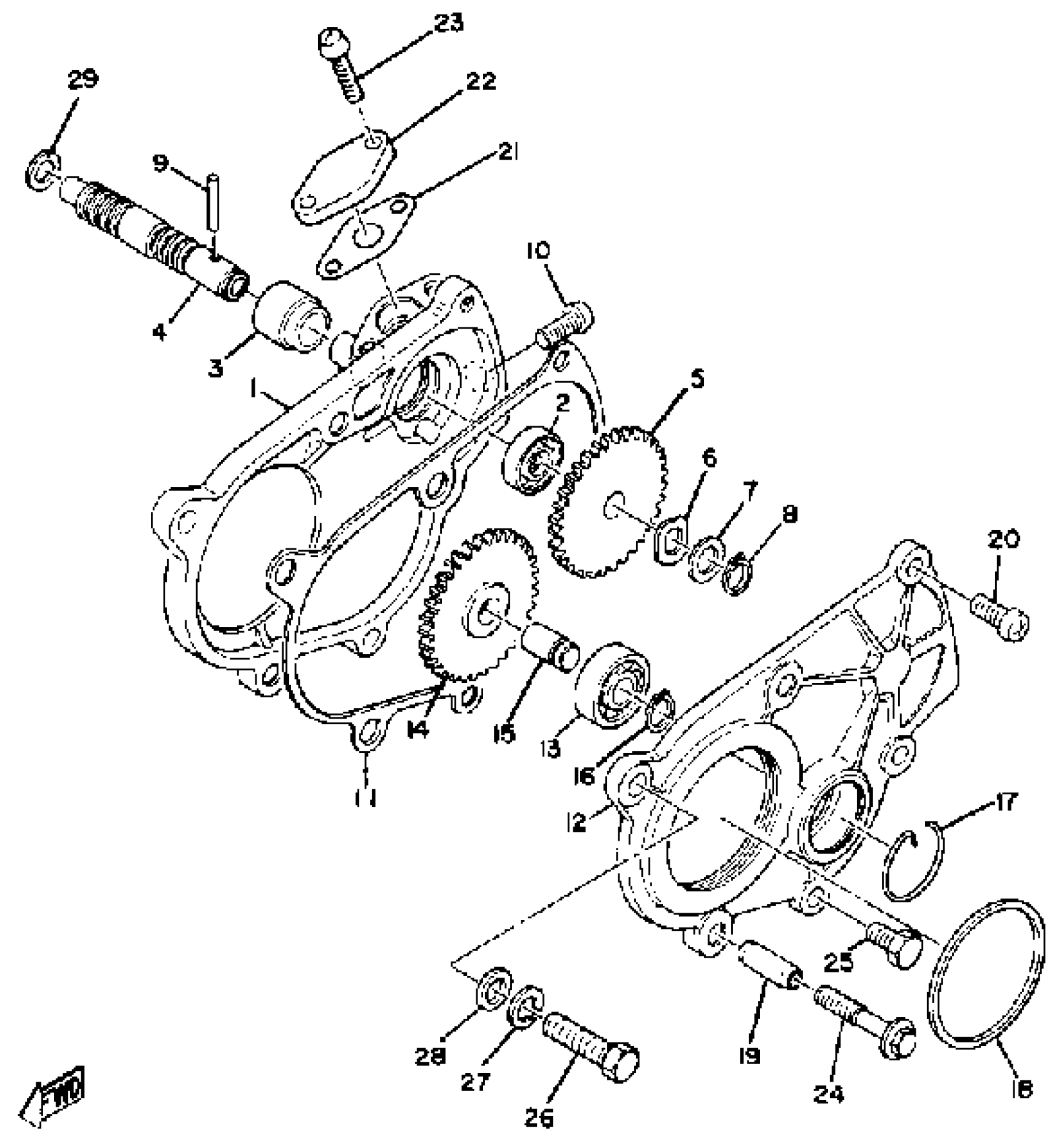

Find the part on the Pump Drive - Gear ET250D\E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Pump Drive - Gear ET250D\E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

(839-15416-00-00)

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

SHAFT, WORM

860-13175-00-00

1
Out of stock

5

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

6

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

11

GASKET 2

860-15466-01-00

1
Out of stock

12

COVER, OIL PUMP R

8F3-15426-00-00

1
Out of stock

13

BEARING (B6000RS)

93306-00003-00

1
Out of stock

14

GEAR, IDLE

(8F3-13179-01-00)

1
Out of stock

15

SHAFT, IDLE GEAR

8F3-13342-00-00

1
Out of stock

16

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

17

CLIP

(90468-12077-00)

1
Out of stock

18

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

19

PIN, DOWEL

91810-18022-00

1
Out of stock

20

SCREW, PAN

98507-06014-00

1

$6.18

In stock

21

GASKET

821-17818-02-00

—

$5.66

In stock

22

CAP, HOUSING

824-17819-00-00

1
Out of stock

23

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

24

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

25

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

26

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
