1978 Yamaha ET250B Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

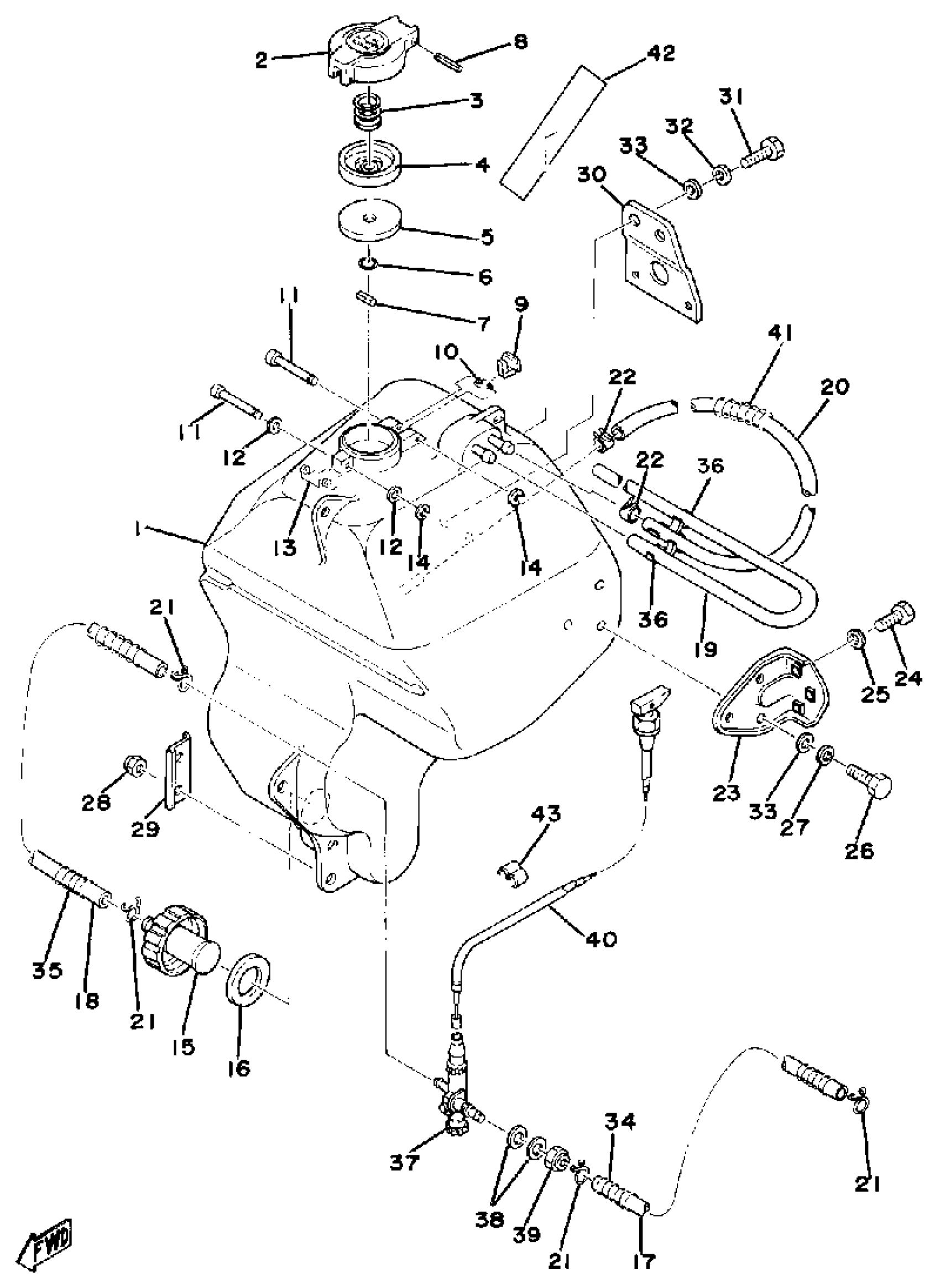

1978 Yamaha ET250B Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8F3-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

HOOK

83M-24628-00-00

1

$19.68

In stock

10

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

13

SPRING, TORSIOW (8F3)

90508-08353-00

—

$6.87

In stock

14

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

15

FILTER ASSEMBLY

8R4-24560-00-00

1

$18.21

In stock

16

PACKING, FILTER

8F3-24564-00-00

—

$11.47

In stock

17

HOSE

90446-11326-00

1
Out of stock

18

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

19

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

20

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

21

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

22

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

23

FUEL TANK

8F3-24111-00-00

1
Out of stock

24

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

25

WASHER, CONICAL SPRING

90208-08011-00

1
Out of stock

26

BOLT(62E)

97013-08012-00

—

$2.48

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

NUT, NYLON

95717-08300-00

—

$2.57

In stock

29

WASHER, SPECIAL

(8F3-24186-00-00)

1
Out of stock

30

BRACKET, FUEL TNK 2

(8F3-24192-00-00)

1
Out of stock

31

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

34

PROTECTOR, PIPE

(8G5-24326-00-00)

1
Out of stock

35

PROTECTOR, PIPE

8F3-24327-00-00

1
Out of stock

36

CLIP

(90468-15076-00)

1
Out of stock

37

FUEL COCK ASSEMBLY 1

(8G5-24500-00-00)

1
Out of stock

38

WASHER, PLATE (4N0)

90201-126A7-00

—

$6.28

In stock

39

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

40

LEVER, FUEL CHANGE

8G5-24575-00-00

1
Out of stock

41

SPRING, COMPRESSION(8AF)

90501-083J8-00

1
Out of stock

42

EMBLEM 1

(8G5-24161-00-00)

1
Out of stock

43

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock
